REPAIR PARTS
T I L ^ l - R - - M O D E L N U l v i B f R ^ » R 5 0 0 B

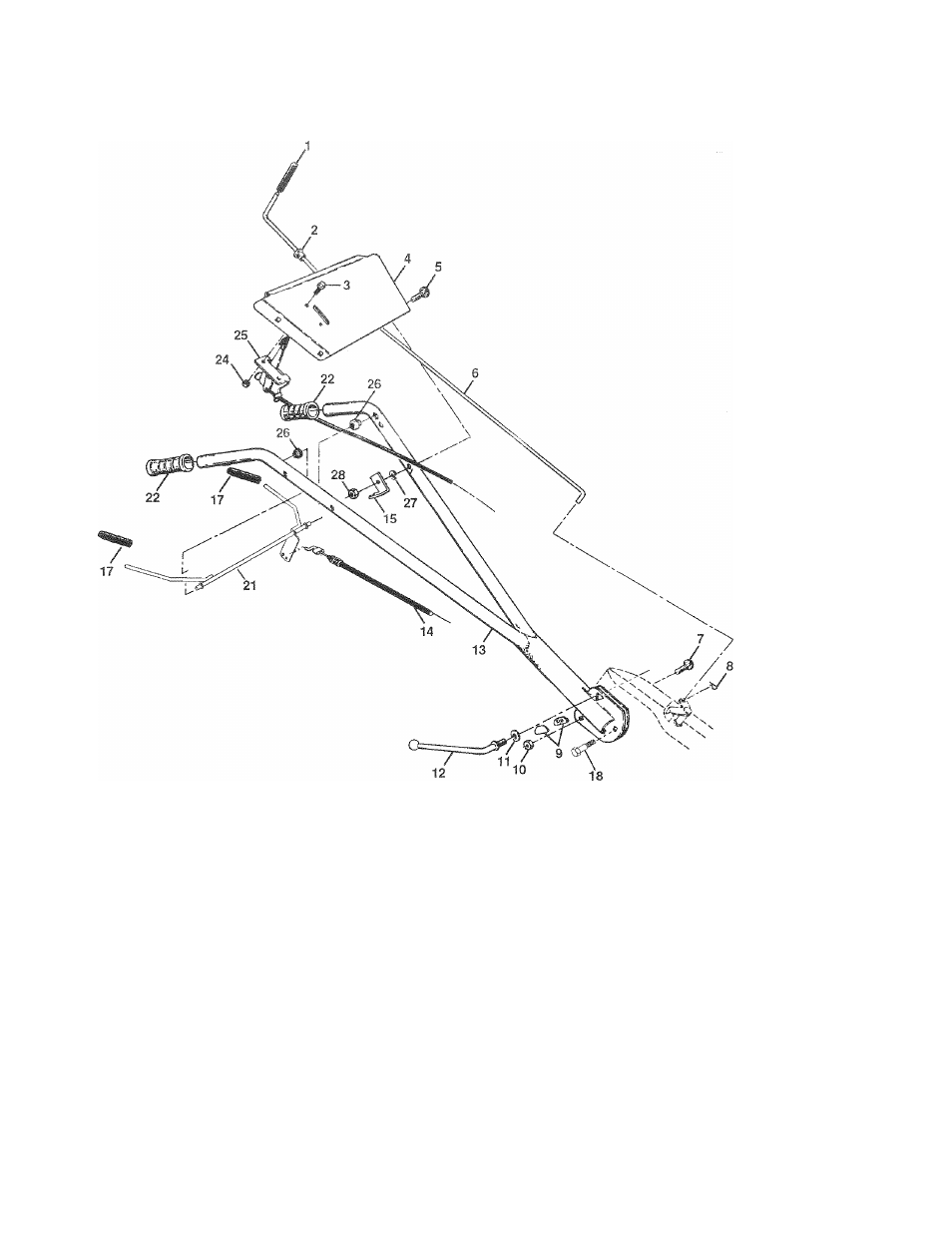

HANDLE ASSEMBLY
KEY
NO. PART
NO. DESCRIPTION KEY
NO.
PART
NO. DESCRIPTION
1 8389J Grip, Handle 14 159232 Cable, Clutch
2 121248X Bushing, Snap 15 145821 Bracket, Clutch Cable
3 71191008 Screw, Pan Hd. #10-24 17 102604X Grip, Bar Control
4 126949X428 Bracket, Handle 18 150696 Bolt, Pivot
5 72110514 Bolt. Carriage 5/16-18 x 1-3/4 21 159227 Bar, Control
6 108281X Rod, Shift 22 150744 Grip, Handle
7 72110608 Bolt, Carnage 3/8-16 x 1 Gr. 5 24 73731000 Nut, Keps #10-24 UNC
8 4497H Clip, Hairpin 25 127012X Control, Throttle
9 109229X Lock, Handle 26 146480 Grommet, Handle
10 73930600 Nut 3/8-16 27 10040500 Washer, Lock 5/16
11
12 19131611
109228X Washer 13/32 x 1 x 11 Ga.
Lever, Lock, Handle
28 73800500 Locknut 5/16-18
13 150217 Handle NOTE: All component dimensions given in i
1 inch = 25.4 mm
