SERVICE AND ADJUSTMENTS
ENGINE

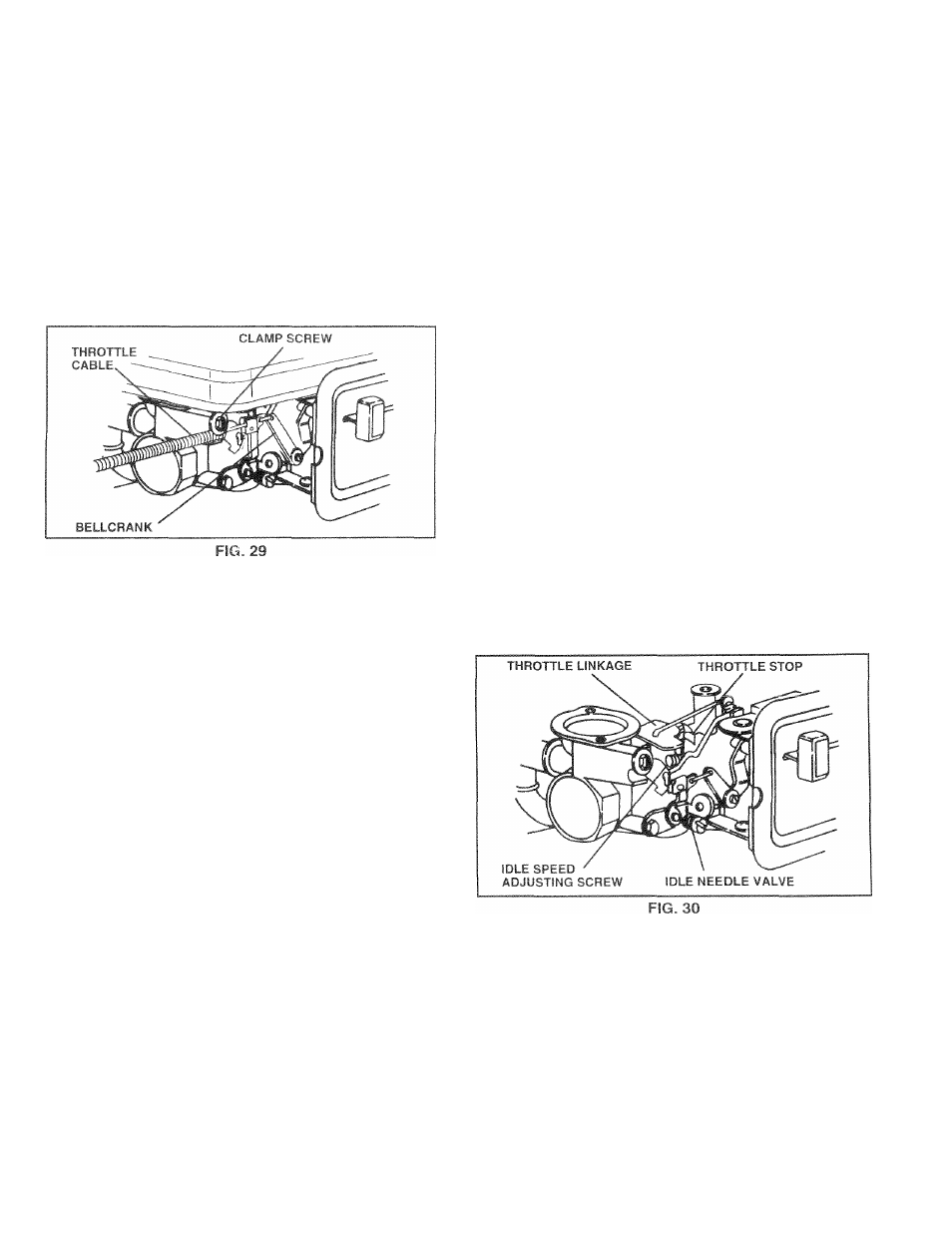

TO ADJUST THROTTLE CONTROL CABLE
(Ses- Lig. 29}
* L d ~ s .- p cat !e clamp screw to allow cable to move.
® Mow thmitiP control lever on upper handle to “FAST”
pocitlun
* Full ihiottle C'lble out until engine bellcrank is back as
f.
r
iC ' Alll
j J.
* Hold cable hi this position and tighten clamp screw
serur^-ly
TO ADJUST CARBURETOR (See Fig. 30)
The carburetor has a high speed jet and has been preset at
the factory and adjustment should not be necessary. How­
ever, minor adjustments may be required to compensate
for differences in fuel, temperature, altitude or load. If the
carburetor does need adjustment, proceed as follows.
In general, turning the idle needle valve in (clockwise)
decreases the supply of fuel to the engine giving a leaner
fuel/air mixture. Turning the needle valve out (counter­
clockwise) increases the supply of fuel to the engine giving
a richer fuel/air mixture.
IMPORTANT: DAMAGE TO THE NEEDLES AND THE
SEATS IN CARBURETOR MAY RESULT IFSCREWS ARE
TURNED IN TOO TIGHT.
PRELIMINARY SETTING
• Air cleaner assembly must be assembled to the carbu­
retor when making carburetor adjustments.
• Be sure the throttle control cable is adjusted properly
(see above).
• With engine off, turn idle needle valve in (clockwise)
dosing it finger tight and then turn valve out (counter­
clockwise) 1-1/2 turns.
FINAL SETTING
• Start engine and allow to warm for five minutes. Make
final adjustments with engine running at idle and drive
control bar in “DISENGAGED” position.
• With throttle control lever in “SLOW” position, turn idle
needle valve in (clockwise) until engine begins to die
then turn out (counterclockwise) until engine runs
rough. Turn valve to a point midway between those two
positions.
IDLE RPM ADJUSTMENT
• To adjust idle RPM, rotate throttle linkage counter­
clockwise and hold against stop while adjusting idle
speed adjusting screw to obtain 1750 RPM. Release
throttle linkage.
ACCELERATION TEST
• Move throttle control lever from “SLOW” to “FAST” -
position. If engine hesitates or dies, turn needle valve- ■
out (counterclockwise) 1/8 turn. Repeat test and
continue to adjust, if necessary, until engine acceler­
ates smoothly.
High speed stop is factory adjusted. Do not adjust or
damage may result.
IMPORTANT: NEVER TAMPER WITH THE ENGINE
GOVERNOR, WHICH IS FACTORY SET FOR PROPER
ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE
THE FACTORY HIGH SPEED SETTING CAN BE
DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED
HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR
NEAREST
AUTHORIZED SERVICE CENTER/
DEPARTMENT, WHICH HAS THE PROPER EQUIPMENT
AND
EXPERIENCE TO MAKE ANY NECESSARY
ADJUSTMENTS.
