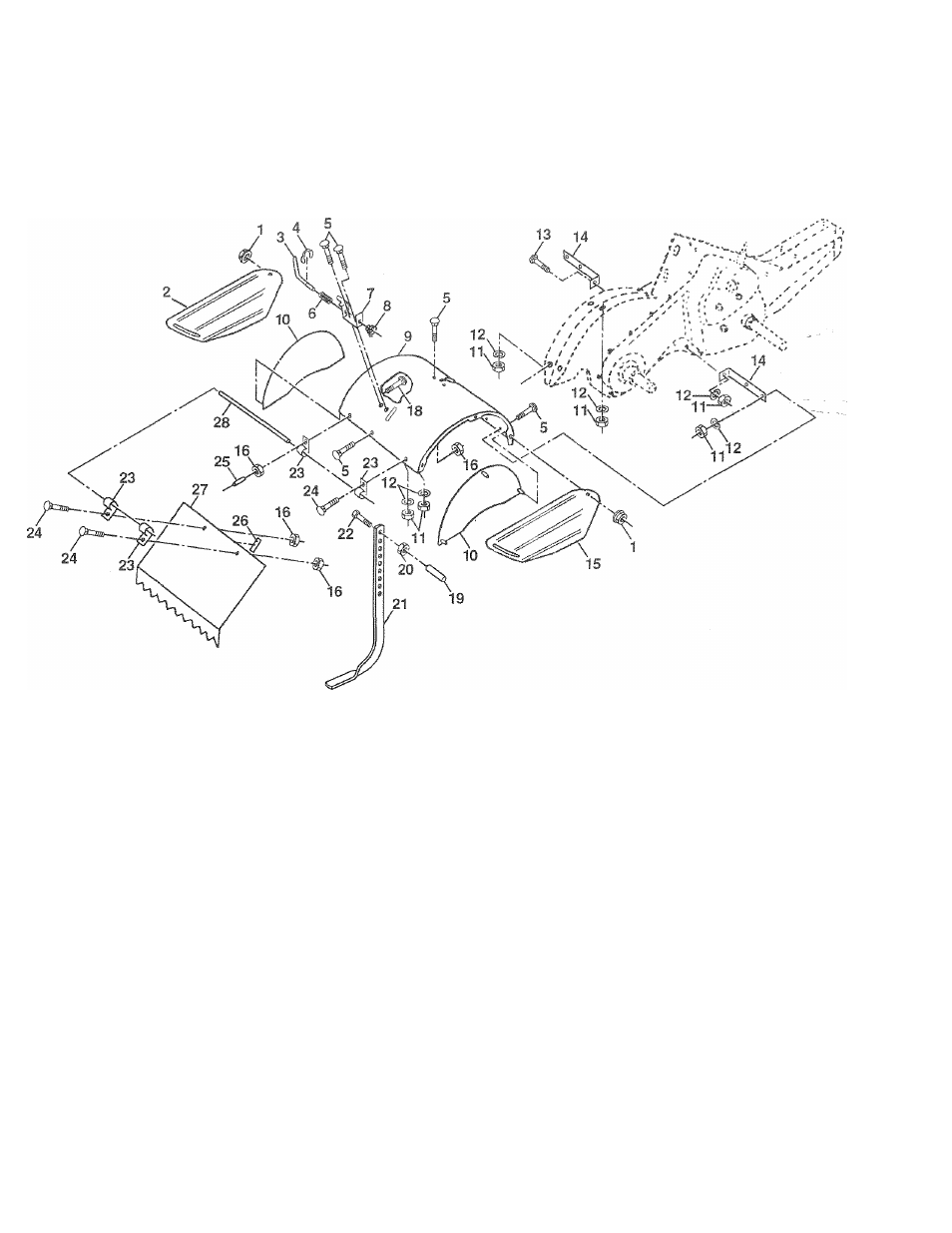

REPAIR PARTS
TINE SHIELD
TILI m - - MODEL NUMBER CHDR500B
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
98000129
Nut, Flange 5/16-18
16
73510400
Nut, Keps 1/4-20
2
161415X428
Shield, Side, Outer L. H.
18
72040410
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
3
8393J
Pin, Stake, Depth
19
102701X
Grip
4
12000036
Ring, Klip
20
73220600
Nut, Hex 3/8-16
5
72140506
Bolt, Carriage 5/16-18 x 3/4 Gr 5
21
102156X
Stake, Depth
6
8394J
Spring
22
74930632
Bolt, Hex 3/8-16x2
7
8392J
Bracket, Latch
23
4440J
Hinge
8
109230X
Spring, Depth Stake
24
72140404
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
9
102326X428
Shield, Tine
25
6712J
Cap, Vinyl
10
104085X428
Shield, Side
26
109227X
Pad, Idler
11
73220500
Nut, Hex 5/16-18
27
102695X428
Shield, Leveling
12
13
10040500
72110510
Washer, Lock 5/16
Bolt, Carriage 5/16-18 x 1-1/4
Bracket, Shield Tine
Shield, Side, Outer R.H.
28
120588X
Pin, Hinge
14
15
124343X
161414X428
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
