SERVICE AND ADJUSTMENTS

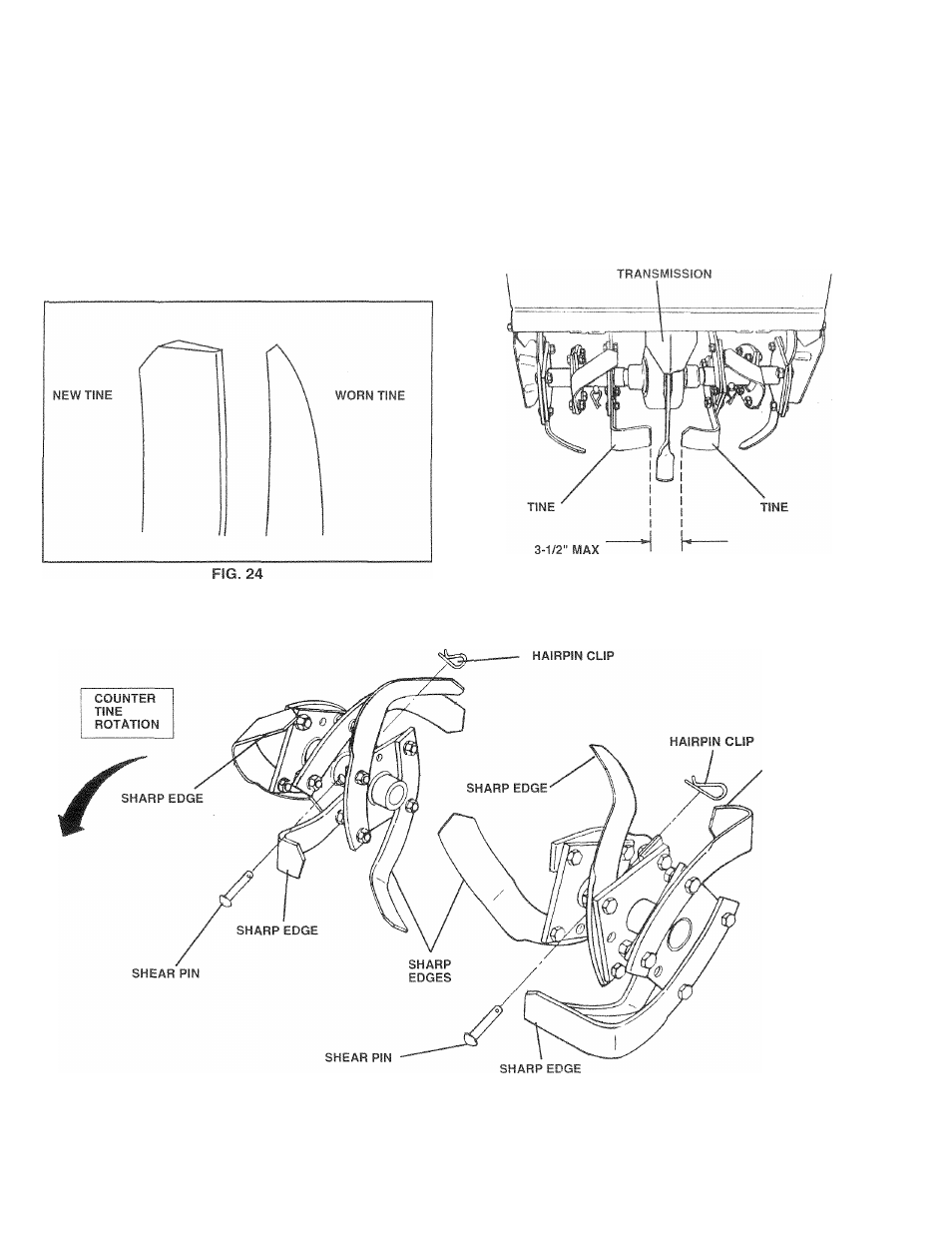

TiNE REPLACEMENT iSee Figs. 24, 25 and 26)
A
CAUTION:
Tines are sharp. Wear
gloves or other protection when han
dling tines.
A badly worn tine causes your tiller to work harder and dig
more shaiiow. Most important, worn dnes cannot chop and
shred organic matter as effectively nor bury it as deeply as
good tines. A tine tnis worn needs to be replaced.
To maintain the superb tilling performance of this
machine the tines should be checked for sharpness,
wear, and bending, particularly the tines which are next
to the transmission. If the gap between the tines
exceeds 3-1/2 inches (9
cm),
they should be
replaced
or straightened as necessary.
New tines should be assembled as shown in Fig. 28.
Sharpened tine edges will rotate rearward from above.
(9
CM)
FIG. 24
SHARP EDGE
FIG. 26
