Yoi
safi
tool
TOC
A sc
wrefii. i»
(1) &'to'«re;«rri
(2) 1/2" wrench
in’ 3 , , f t i sembtedatthefactorvwithexceDtionofthosepartsleftunassembiedforshippinf purposes, Toensure
. i> , 1 - 1 .. onofyoii f i ' . » ■ [ . ;■ M-ardware you assemble must befightened securely. Use the correct
t r ,-^r, .sureprci i? ...
sted.
m a k e a s ' V r - ' ‘ t o r i s i d
t-tiinv r n te
! ;re pre>i.uie gauge
When right and left hand is mentioned in this manual, it
means when you are in the operating position (seated
behind the steering wheel).
TO REMO¥E TRACTOR FROIJ CAR­
TON
UNPACK CARTON
• Remove all accessible loose parts and parts cartons from
carton (See page 5).
• Cut along lines on carton, from top to bottom, all fourcorners
of carton and lay panels flat.
• Check for any additional loose parts or cartons and remove.
BEFORE ROLLING TRACTOR OFF
SKID

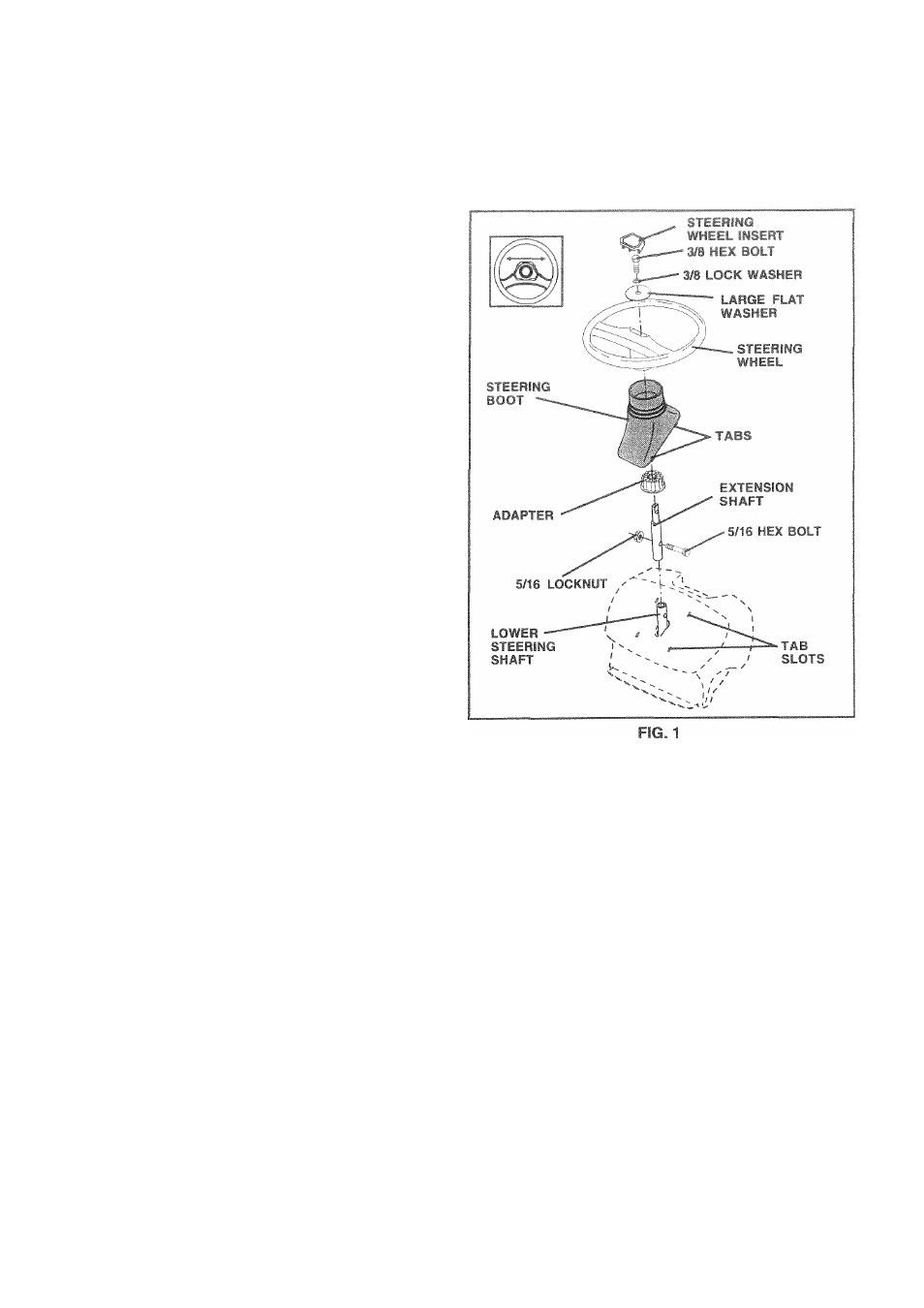

ATTACH STEERING WHEEL (See Fig. 1)
ASSEMBLE EXTENSION SHAFT AND BOOT
• Slide extension shaft onto lower steering shaft. Align
mounting holes in extension and lower shafts and install 5/
16 hex bolt and locknut. Tighten securely.
IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO
18-22 FT. LBS TORQUE.
• Place tabs of steering boot over tab slots in dash and push
down to secure.
INSTALL STEERING WHEEL
• Position front wheels of the tractor so they are pointing
straight forward.
• Slide steering wheel adapter onto steering shaft extension.
• Position steering wheel so cross bars are horizontal (left to
right) and slide inside boot and onto adapter.
• Assemble large flat washer, 3/8 lock washer, 3/8 hex bolt
and tighten securely.
• Snap steering wheel insert into center of steering wheel.
• Remove protective materials from tractor hood and grill.
IMPORTANT; CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERE
TRACTOR IS TO ROLL OFF SKID.
TO ROLL TRACTOR OFF SK!D (See Opera
tion section for location and fynction of con
trols)
• Press lift lever plunger and raise attachment lift lever to its
highest position.
• Release parking brake by depressing clutch/brake pedal.
® Place gearshift lever in neutral (N) position.
•
Roll tractor forward off skid.
• Remove banding holding discharge guard up against
tractor.
