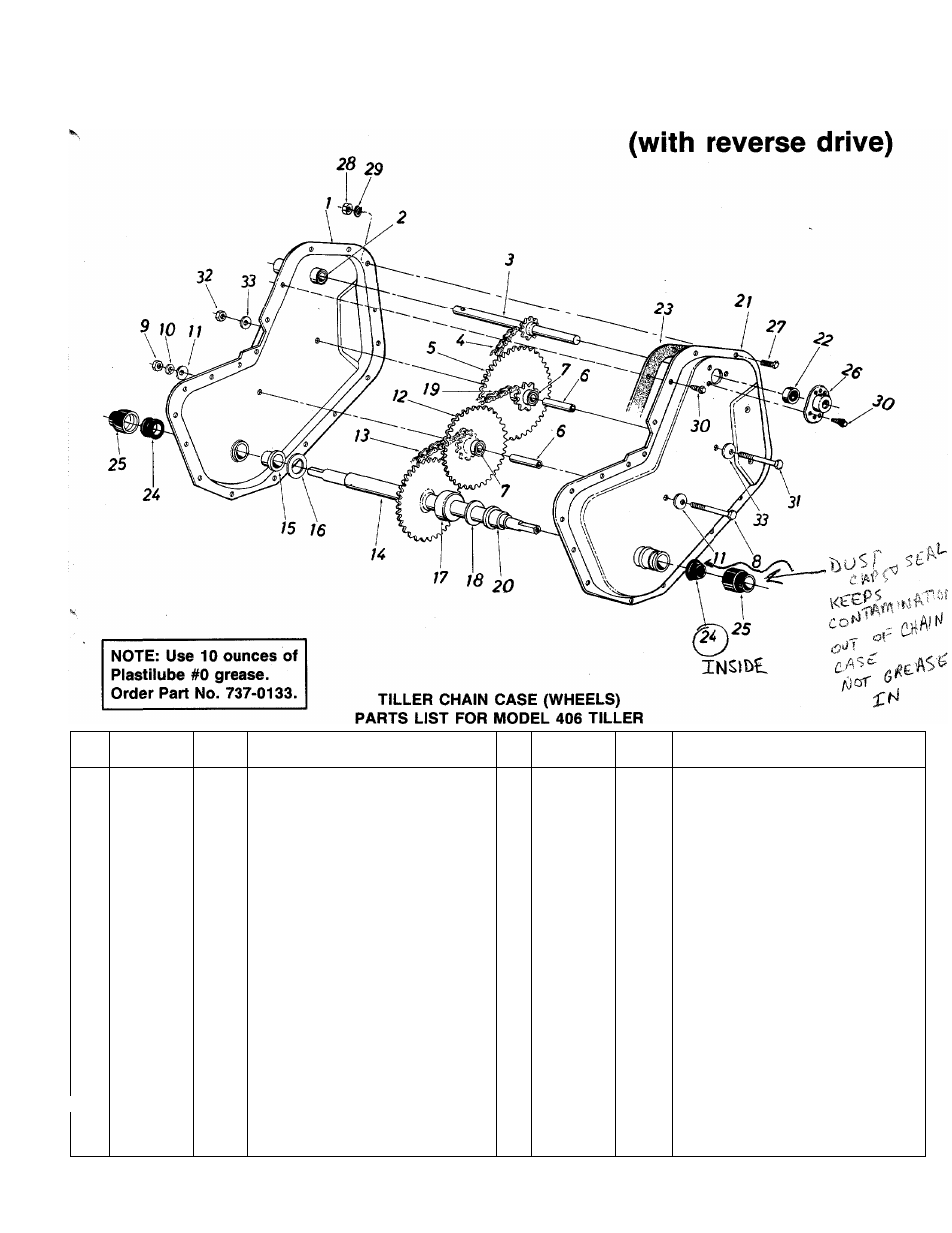

MTD 219-406-000 - Manual (Page 21)

Model 406
REF.
NO.
PART
NO.
CODE DESCRIPTION
REF.
NO.
PART
NO.
CODE DESCRIPTION
1 14962 Chain Case Half Ass’y-—R H. 18 736-0265 FI-Wash. .88" I.D. x 1.50"
2 748-0154 Bearing 5/8" I.D. x .813" O.D. X .03
O.D. X 1.31" Lg. 19 713-0267 #420 Chain Vz" Pitch x 30
3 784-0136A N Input Shaft Ass’y- Links Endless
4 713-0325 Chain #35—3/8" Pitch x 44 Links 20 741-0227 Flange Bearing
5 713-0316 Sprocket and Hub Ass’y. 21 15797 Chain Case Haif Ass’y.—L.H.
6 750-0351 Bearing inner Axle 22 741-0155 Bearing
7 741-0228 Sleeve Brg. 5/8" I.D. x %" 23 721-0156 Gasket
O.D. X 1.50 24 721-0157 Seal
8 710-0369 Hex Bolt 3/8-24 x 2.50" Lg.* 25 731-0486 Dust Cup
9 712-0116 Hex Ins. L-Nut 3/8-24 Thd. 26 05034 Bearing Housing
10 736-0169 L-Wash. 3/8" I.D.* 27 710-0195 Hex Bolt 1/4-28 X 5/8" Lg.
11 736-0219 Bell-Wash. .41" I.D. x 1.13" 28 712-0138 Hex Nut 1/4-28 Thd.
O.D. X .03 29 736-0329 L-Wash. 1 / 4 " I.D.*
12 713-0330 Sprocket & Hub Ass’y. 9T-22T 30 710-0599 Hex Wash. S-Tap Scr. 1 / 4 -20
13 713-0326 #420 Chain Vz Pitch x 28 X .50" Lg.
Links Endiess 31 710-0378 Hex Bolt 5/16-18 X 2.5" Lg.
14 784-0126A N Wheel Shaft Ass’y. 32 712-0158 Hex Cent. L-Nut 5/16-18 Thd.
15 741-0227 Flange Bearing 33 736-0159 FI-Wash. 5/16" I.D.
^ 16 736-0265 FI-Wash. .88" I.D. x 1.5" — 737-0133 Grease—Plastilube #0 (10 oz.)
O.D. X .03 — 784-0104A N Wheel Chain Case Comp.
17 750-0354A N Spacer 7/8" I.D. x ^УA" O.D.
X .68" Lg.
21
