Section 6 — Exploded Views and Parts Lists
Series QP55-G Recreational Vehicle Generator

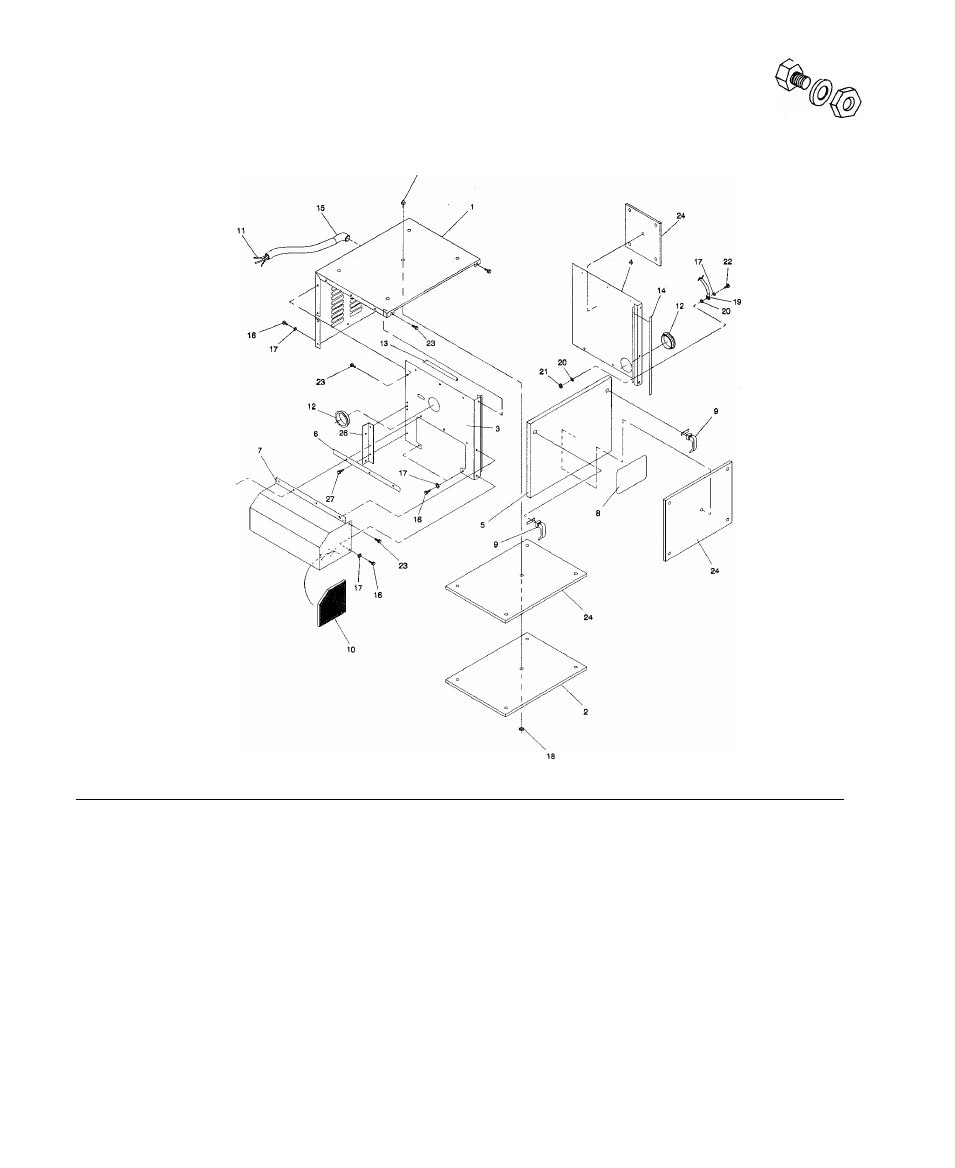

Outer Sheet Metal - Drawing No. C1862-A
.PARTS
LISTS
TEM
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
Cl 781
1
ASSEMBLY, ENCLOSURE
16
79246
10
HHCS W/LOCK WASHER,
TOP & BACK
M6-1.0
X
16mm
2
A8011
1
SUPPORT, SOUND PAD
17
22473
11
FLAT WASHER, 1/4"-M6
3
Cl 774
1
PANEL, ENGINE SIDE
18
22985
5
FLAT WASHER #6
4
Cl 775
1
PANEL, ALTERNATOR SIDE
19
C4006
1
CABLE, BATTERY 30" LG.
5
A9130
1
ENCLOSURE, DOOR
20
A1658
2
LOCK WASHER, SPECIAL
6
C5401
1
GASKET, MUFFLER
1/4"
7
Cl 462
1
MUFFLER, ENCLOSURE
21
52857
1
FLANGE NUT-M6-1.00
ASSEMBLY
22
49721
1
HHCS, M6-1.0
X
35mm
8
C2331
1
DECAL, UNIT QPACT 55
23
A7215
21
SWAGE FASTENER WITH
9
A6917
2
LATCH, LIFT & TURN
NYLON WASHER,
10
A7163
1
HEAT SHIELD, MUFFLER
1/4"-20
X
5/8"
11
C5107
1
ASSEMBLY, WIRE HARNESS
24
A7835
3
PAD, SOUND DAMPENING
12
A6859
2
GROMMET
25
A7836
5
RIVET, 1/8" DIM.
13
A6760
6.5 FT. SEAL, EXTRUSION
26
C5400
1
BRACKET, ANGLE
14
29451
6 FT.
RUBBER TAPE 1/8"
x 72"
27
58443
2
CRIMPTITE, 74-20
X
5/8"
15
C8281
1
CONDUIT ASSEMBLY
Generac* Power Systems, Inc. 37
