ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED:
(1) Raw Hide or Plastic Hammer
(1) 1-1/8" Wrench or Adjustable Wrench
(1) 3/4" Wrench
OTHER MATERIALS NEEDED:
(A) One gallon of regular grade gasoline (for engine)
(B) 1-1/2 pints of SAE 30 or 10W-30 oil (for engine)
(C) Approximately 3 gallons of Dexron II automatic
transmission fluid. (May be obtained at your
local service station or auto parts store).
Automotive Grease
Funnel
(E)
(F)
CONTENTS OF HARDWARE PACK (See Figure 1):
(A) (2) Spacers
(B) (2) Tapered Roller Bearings
(C) (2) Hex Castle Nuts 3/4-16 Thread
(D) (2) Cotter Pins
(E) (2) Hub Caps
(F) (1) Shoulder Bolt
(G) (1) FlatWasher
1. Pack the tapered roller bearings with automotive
grease.
NOTE
Do not put any grease in the hub caps.
FIGURE 2

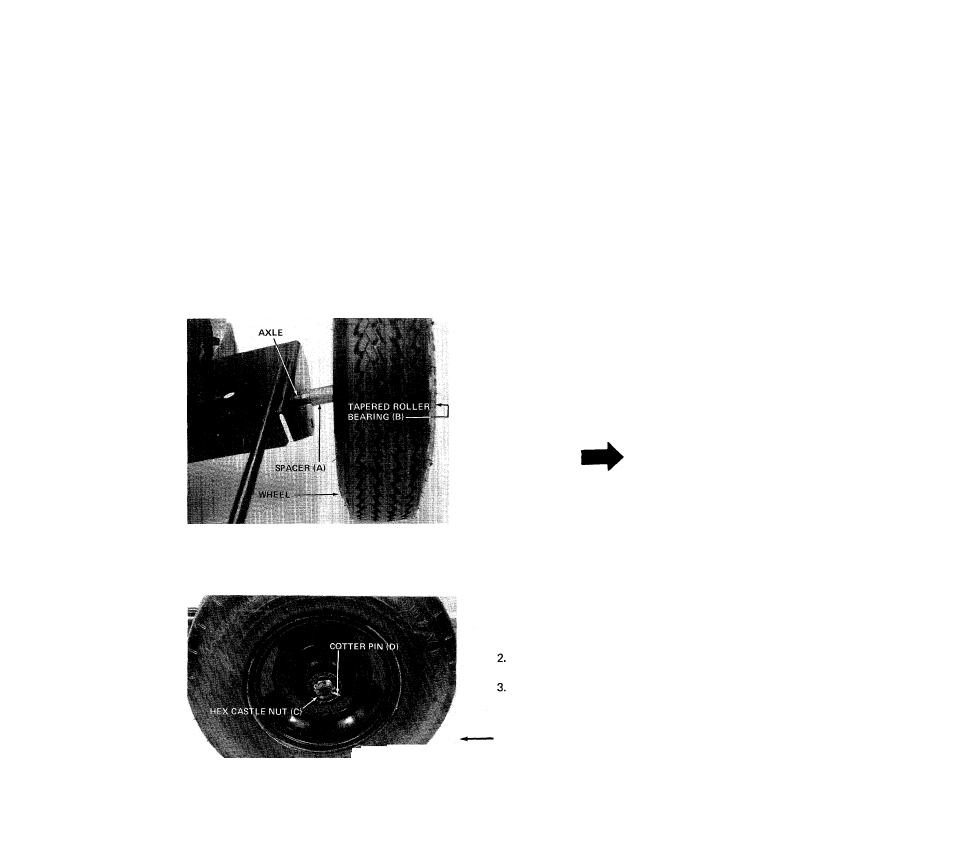

Place one spacer (A) on axle, then one wheel and
tapered roller bearing (B). See figure 2.
Thread hex castle nut (C) on axle. Tighten castle
nut until snug, then back off approximately 1/3
turn or until one of the slots on the castle nut lines
up with hole in axle. Secure castle nut to axle
with cotter pin (D). See figure 3.
