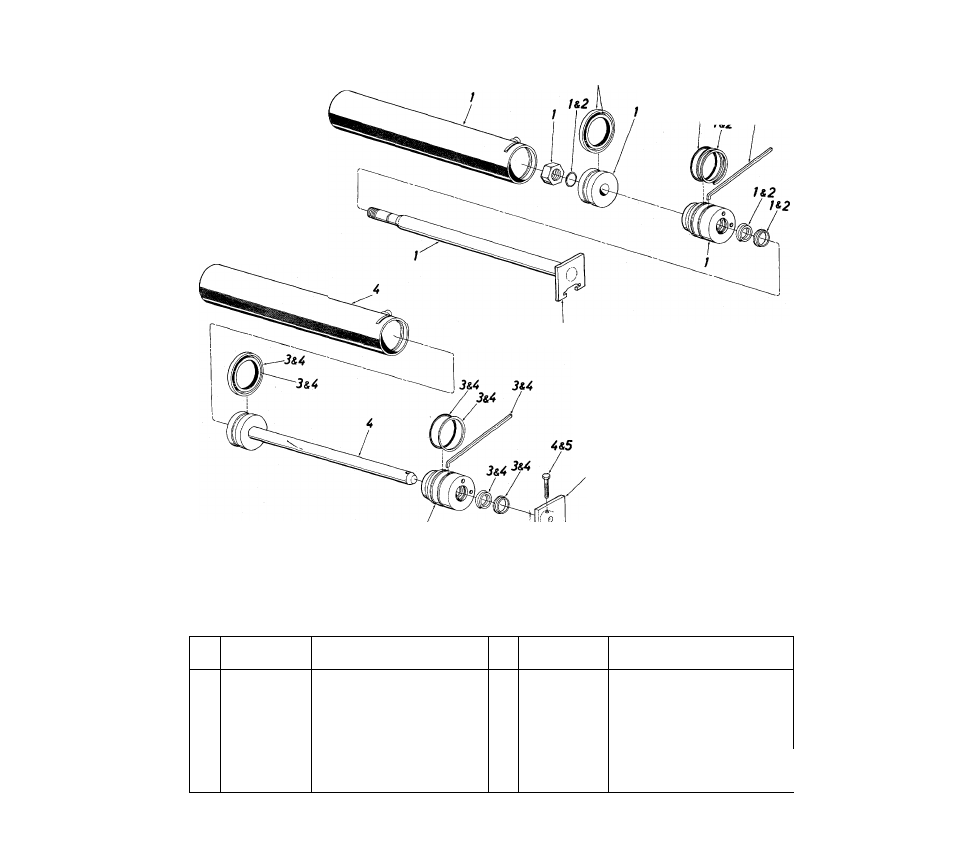

Models 642 and 645
1&2
PUSH PLATE WELDED TO
CYLINDER ROD
4&5
1
^
4*5
U2
PUSH PLATE REMOVABLE
3-1/2" DIA. CYLINDER
PARTS LIST FOR MODEL 642
4" DIA. CYLINDER
PARTS LIST FOR MODEL 645
Ref.
No.
PART No.
DESCRIPTION
Ref.
No.
PART No.
DESCRIPTION
1
717-0459
Cylinder Ass'y- Comp. (Welded
Push Plate)
1
717-0406
Cylinder Ass'y. Comp. (Welded
Push Plate)
2
;<753-027J_
3-1/2" Cyl. Kit "0"-Ring Set
(Welded Push Plate)
753-0263
4" Cyl. Kit "0"-Ring Set
(Welded Push Plate)
3
753-02?®
3-1/2" Cyl. Kit "0"-Ring Set
(Removable Push Plate)
3
753-0273
4" Cyl. Kit "0"-Ring Set
(Removable Push Plate)
4
717-0459
Cylinder Ass'y- Comp.
(Removable Push Plate)
4
717-0406
Cylinder Ass'y. Comp.
(Removable Push Plate)
5
753-0274
3-1/2" Cyl. Push Plate Kit
5
753-0275
4" Cyl. Push Plate Kit |
