Section 6 — Exploded Views and Parts Lists
Guardian Liquid-cooled 8 kW Generators

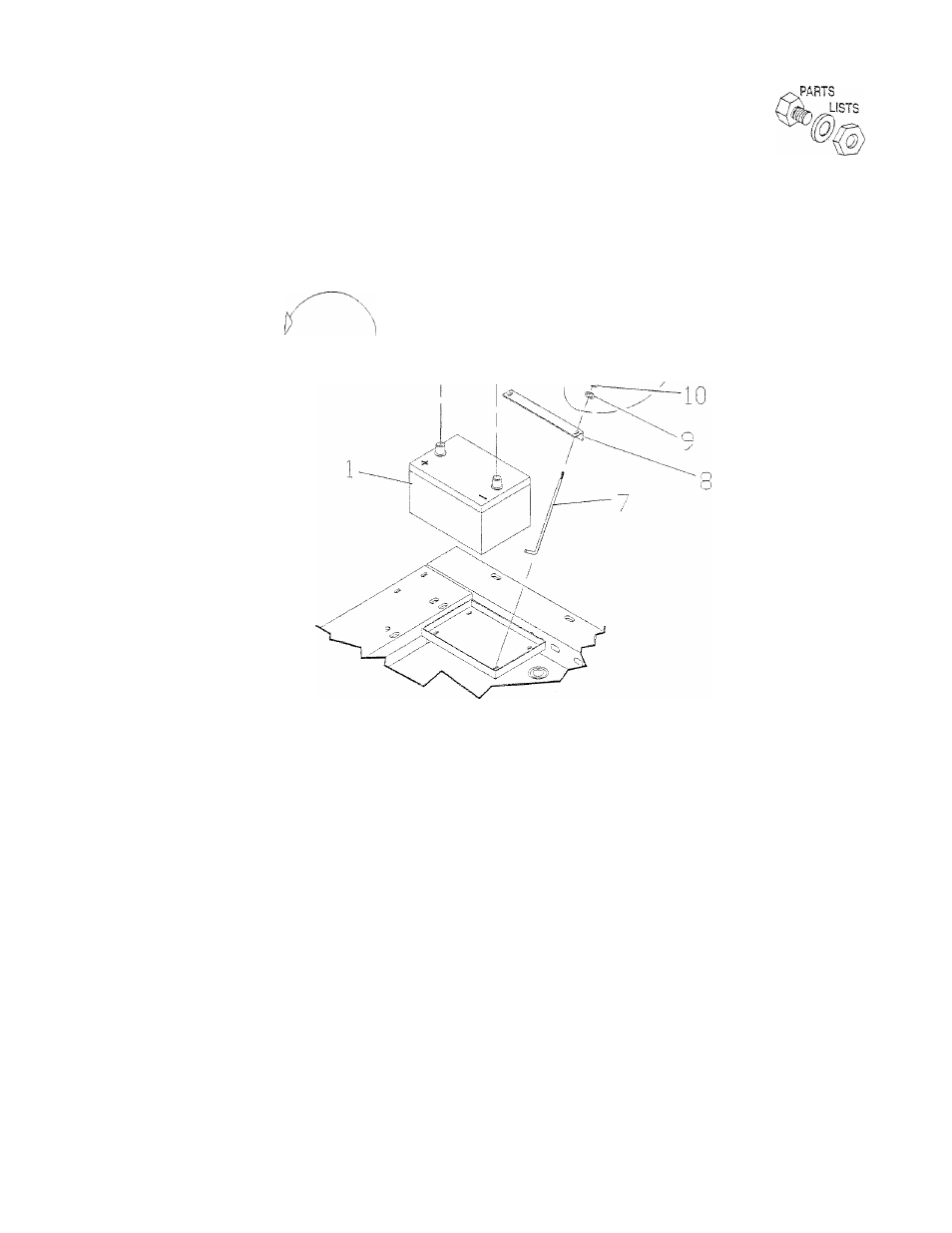

Battery - Drawing No. A4675-A
I o E n g i n e
U n d e n
I o S d o . n T e n
C o n n e c t o n
E
l e
T ' ‘ 1
d a i ^ t e n ,
o
o
/
/
, ' j
1
1
ITEM PART NO, QTY. DESCRIPTION
ITEM PART NO. QTY. DESCRIPTION
1
2
77483
38804Y 1
BATTERY. GROUP 26
CABLE, BATTERY - RED-35”
7
59567
2
J-BOLTS, BATTERY HOLD
DOWN
3
38805H 1
CABLE, BATTERY - BLACK-23”
8
78121
i
BAR, HOLD-DOWN
4
22250 1
WASHER, FLAT - 7/16
9
22145
2
WASHER, FLAT - 5/16
5
51769 1
WASHER, LOCK - 7/16
10
22129
2
WASHER, LOCK - 5/16
6
68485 1
CAPSCREW. HEX HEAD, M12-
1.25 X 20MM
11
22259
2
NUT, HEX - 5/16-18
Generac^ Power Systems, inc. 3“7
