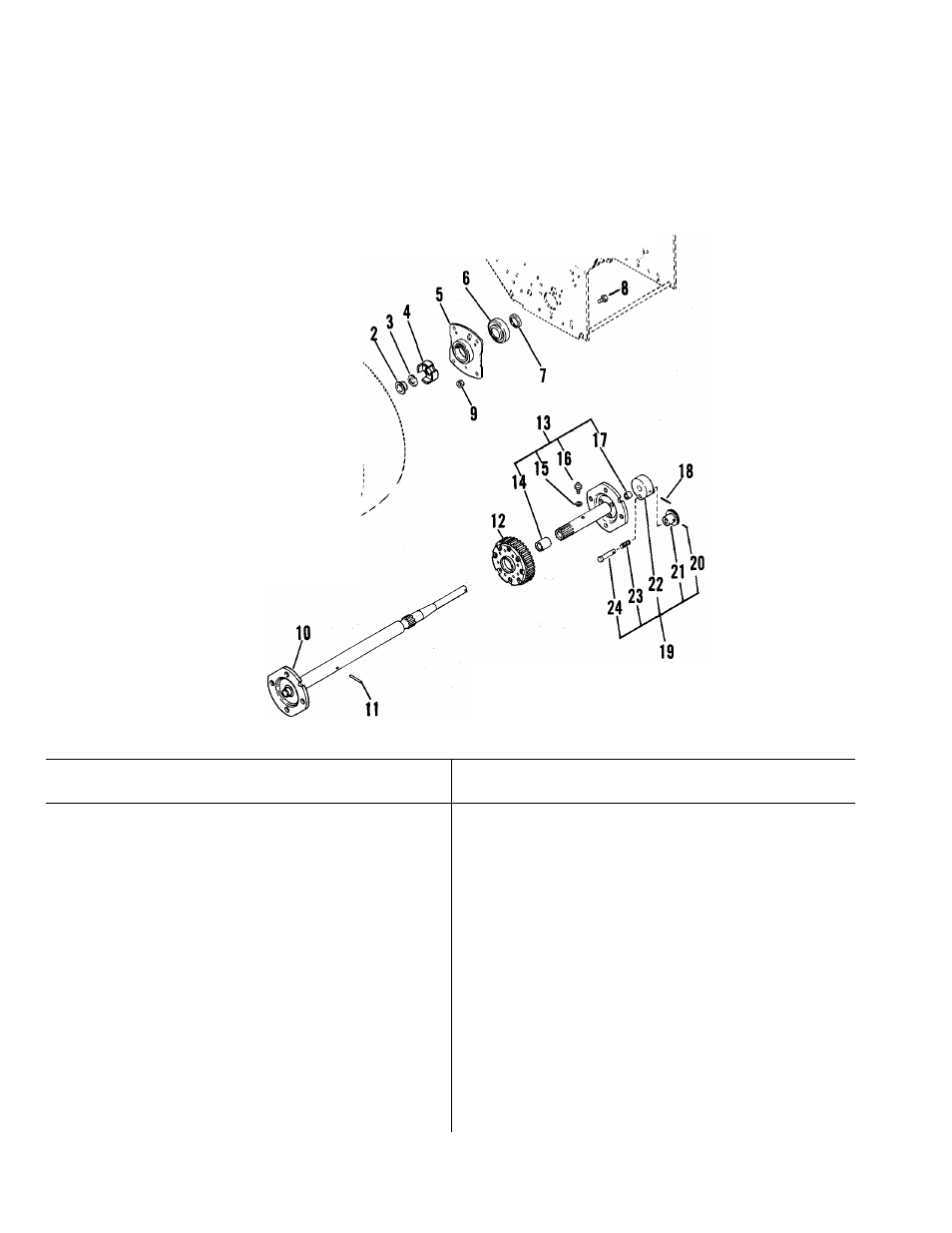

Differential
724015 Fits 924074
710983 Fits 924075
Models 724015
710983
/
/i-
1 • s
'"9i S
V
I
If' > ^ '""1
'■V ¿i-f-y,/ \ '
ITEM
N0.
PART
N0. DESCRIPTION
ITEM
NO.
PART
NO. DESCRIPTION
1 003377 Hub Cap (724015) 12 524053 Differential Assembly (724015)
2 010366 Push Nut 512020 Differential Assembly (710983)
3 064042 Washer 3/4 (710983) 13 524055 L.H. Axle Assembly (724015)
4 003376 Spindle Cup 510030 L.H. Axle Assembly (710983)
5 024363 Bearing Retainer (724015) 14 055075 Bushing (7^015)
012023 Bearing Support 055029 Bushing (710983)
6 054136 Bearing (724015) 15 063025 Lock Washer 1/4 Ext.
055030 Bushihg (710983) 16 022093 Zerk Fitting
7 064170 Washer 1-1/8 (724015) 17 055029 Bushing
064036 Washer 7/8 (710983) 18 058042 Groove Pin 1/4 X 1-3/4
8 070011 Ribbed Neck Bolt 19 524059 Lockout Hub Assembly
9 065056 Lock Nut 20 058032 Roll Pin 3/32 X 1"
10 024409 R.H. Axle (724015) 21 010375 Knob
010370 R.H. Axle (710983) 22 010372 Lockout Hub
11 058030 Roll Pin 3/16 x 1-1/2 (724015) 23 083007 Compressing Spring
058003 Roll Pin 3/16x 1-1/4(710983) 24 010374 Pin
