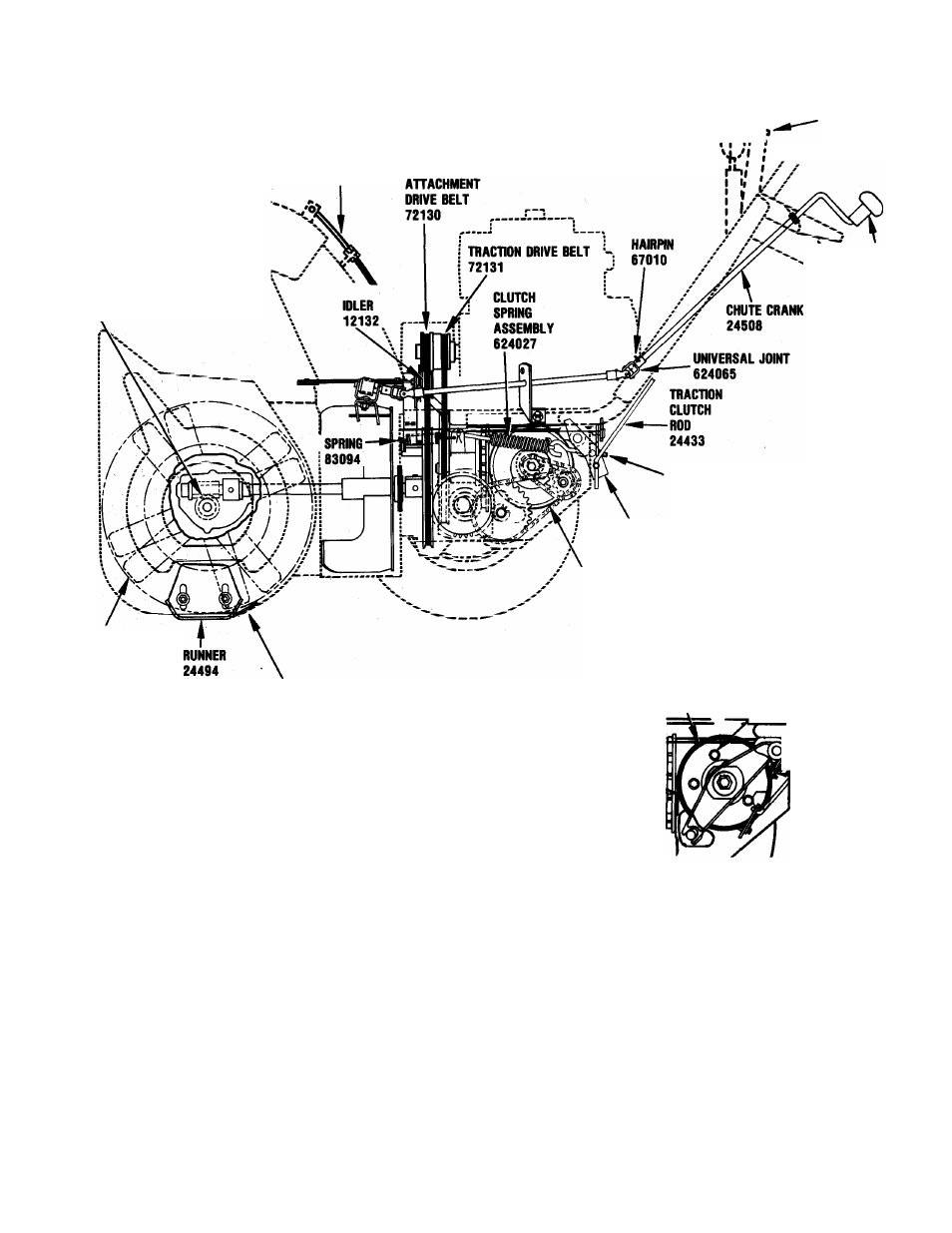

BASIC CONSUMER-USER SERVICE COMPONENTS
2
HEADLIGHT-
SWITCH
24359
CABLE 69137
HEADLIGHT-
BULB
24358
REMOTE
COHTROL
DEFLECTOR
KNOB 75137,^
SnnFUf RinSP^ ^
/w SCREW 61065
SHEARBOLT
& HUT
510015
KHOB
75083
KEY SET
13157
CLUTCH ADJUSTMEHT
HUT 65062
CLUTCH ENGAGEMEHT YOKE 24228
FRICHOH
WHEEL
3003
RAKE ASSEMBLY
R. 535034
L 535035
SCRAPER BLADE 35192
FRICTION
WHEEL
3003
NOTE: FOR ENGINE LUBRICATION AND PARTS SUCH AS AIR
CLEANER
AND
SPARK PLUGS
REFER
TO
ENGINE INSTRUC
TIONS
MANUAL
SUPPLIED
WITH
UNIT.
CONTACT
ENGINE
MANUFACTURER’S DEALER FOR REPLACEMENTS.
PARTS OR SERVICE MANUALS
Basic Consumer-User Service Components are il-
iustrated on this page and are described in the text
of this manuai. These components are most com
monly used for consumer repair.
Should a complete parts list and/or a repair manuai
iess engine be required order under the following
part numbers.
Parts Manual
Part No. PM-24-82
Repair Manual
Part No. RM924-1983
Please Request From: AriensService
655 West Ryan Street
Brillion, Wl 54110
For engine parts list and repair instructions, contact
the engine manufacturer’s dealer.
FLANGE
WHIZLOCK
SCREWS
y 70009
if / SHIFT LINK
')/
024233
CLEVIS PINS
012151
OPTIONAL ATTACHMENTS*:
Rotary Brush, 36” 824004 (RB36)
Rotary Mower, 26” 824005 (RM26)
OPTIONAL ACCESSORIES*:
1 2 Volt Electric Starter, 724018
1 20 Volt Electric Starter, 724019
Slicer Bars, 710997
Homeowner's Kit, 724020
Tire Chains, 703985
Adaptor and Air Cleaner Kit - 724028
(Required with 824004 and 824005 attachments)
‘Available at Extra Cost.
