ENGINE - FIGURE 1

Fill Crankcase with oil as recommended in Engine
Manufacturer's Instructions supplied with the product.
Check oil level before each use and change oil regularly
according to Engine Manufacturer's Instructions.

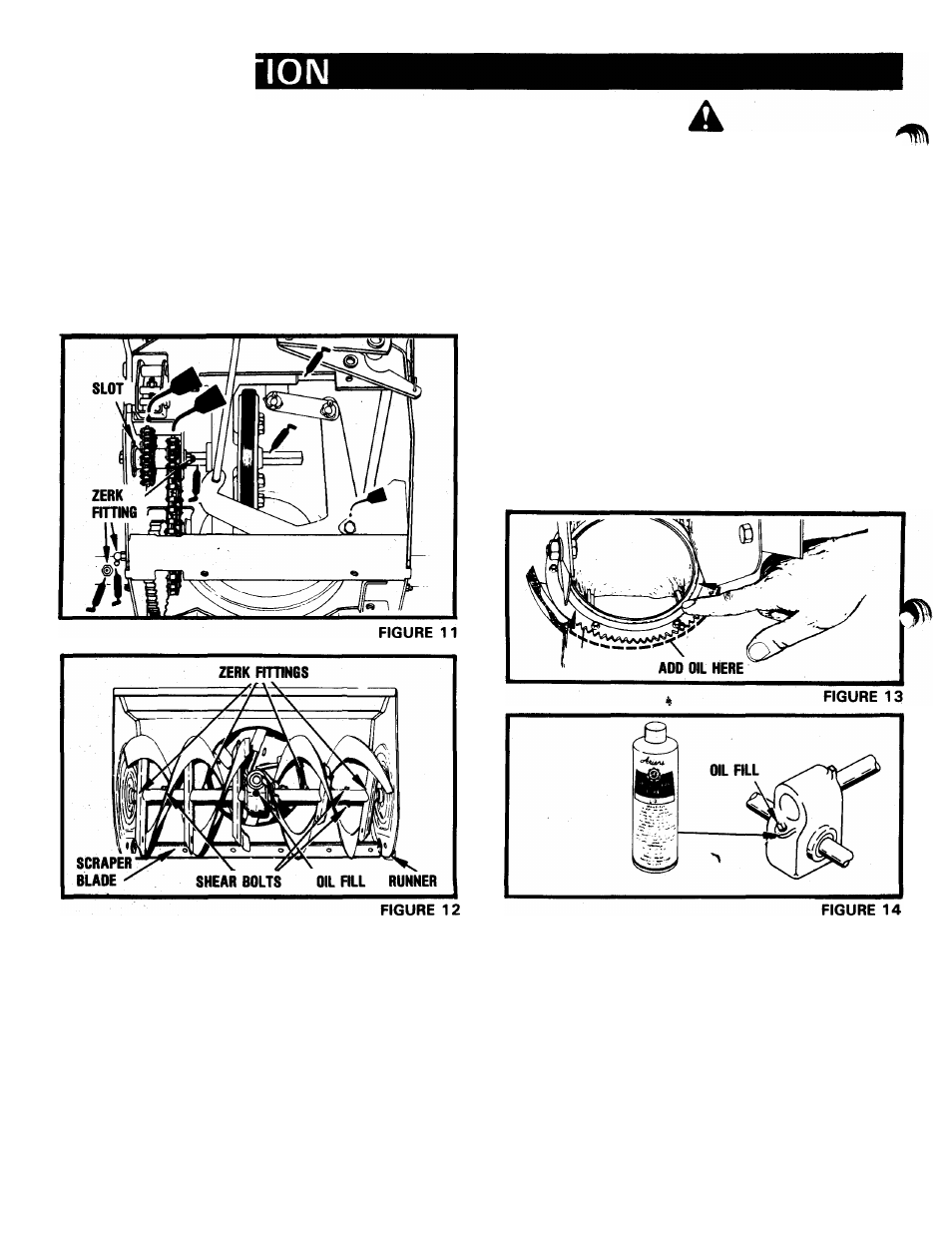

SNO-THRO DRIVE - FIGURES 11 & 12

At the start of each operating season, grease gears, pi
nion sprocket, reduction shaft and axle shaft as in
dicated in Figure 11. Put a few drops of oil on the
Speed Selector linkage and other linkage points.

CAUTION: DO NOT ALLOW GREASE OR OIL TO COME
IN CONTACT WITH FRICTION WHEEL, DRIVE DISC,

OR BELTS. DO NOT APPLY OIL TO A HOT AREA.

Grease rake shaft at beginning of season, periodically
or each time a shear bolt is replaced. At the end of the
season, remove shear bolts, use a grease gun on zerk
fittings to grease rake shaft, turn rakes on shaft several
times and replace shear bolts. See Figure 12. Use
Ariens Multi-Purpose grease (Part No. 0001 50).

DISCHARGE CHUTE - FIGURE 13

Oil the discharge chute with several drops of oil.

GEARCASE - FIGURE 14

Check oil level periodically. Oil level must be up to oil fill
hole. Change oil every 25 hours or once each season
which ever comes first. Fill with Ariens Special L-2

Gear Lubricant (Part No. 000080). Use approximately

5 oz.
