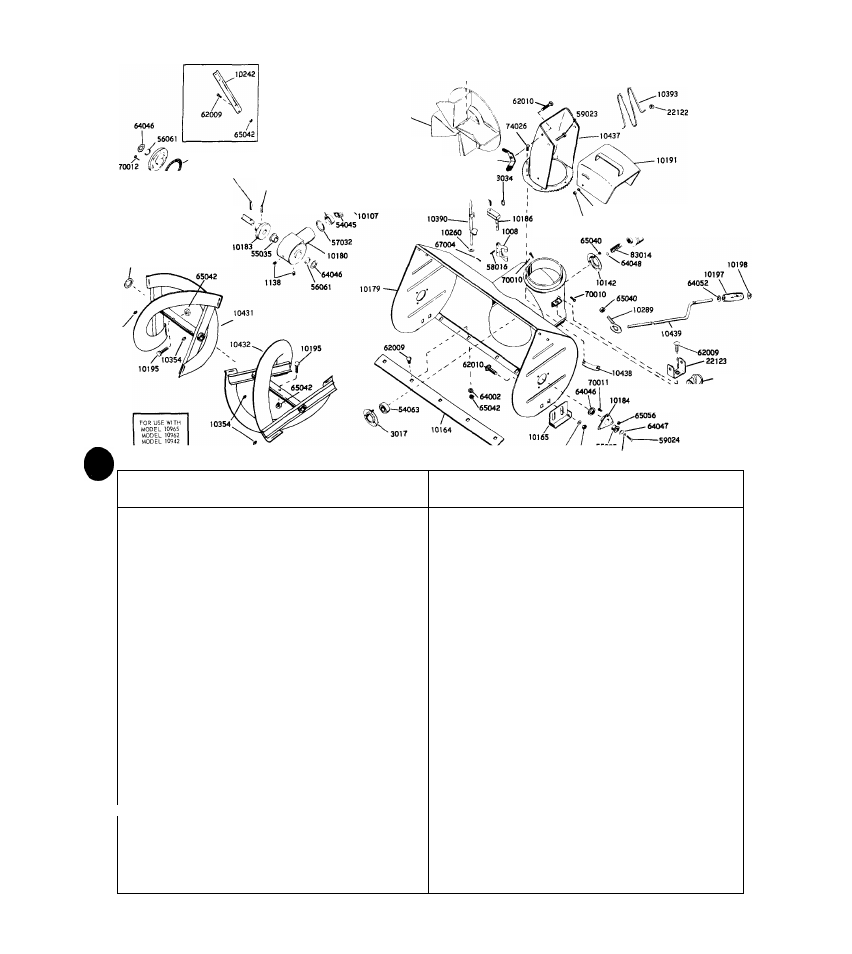

10997SLICER BAR KIT
24" SNO-THRO MODEL 10995
1 ----- 58007
I0I78
10108
r ^ ^ i------------------- 58030
10181 /
55035
10299^^^
58022
58007-
54(m ^
V
'^56062 V| 10193-
10371
^ 54045 ^ 580,7'
■-1 ^ \
10177 75004
63004
65039 ^
64046
0354
22110
k J----------- 58034
^>64007
^65042
64002 /
65039 63006
r ■ ”■
Part
No.
Description
No.
Req’d.
Part
No.
Desci-iption
No.
Req'd.
1008 Clutch Fork 1 56062 Seal 1
1138 Pipe Plug 3/8 Sq. Hd. 2 57032 Snap Ring 1
3017 Bearing Flange 1 58007 Roll Pin 1/4 X 1-1/4 3
3034 Roller 1 58016 Roll Pin 3/16 X 1 2
10107 Bearing Spacer 1 58017 Roll Pin 5/16 X 1-1/4 1
10108 Gasket 1 58022 Roll Pin 5/16 X 1-3/8 1
10142 Bearing Flange 1 58030 Roll Pin 3/16 X 1-1/2 2
10164 Scraper Blade 1 58034 Roll Pin 1/8 X 3/4 1
10165 Runner 2 59023 Cap Screw 3/8-16 x 3/4 H.H. 2
10176 Jaw Clutch 1 59024 Cap Screw 1/2-13 x 1 H.H, 2
10177 Helicon Pinion Shaft 1 62009 Carriage Bolt 5/16-18 x 1/2 6
10178 Fan 1 62010 Carriage Bolt 3/8-16 x 3/4 5
10179 Blower Housing 1 63004 Lockwasher 3/8 2
10180 Gear Case 1 63006 Lockwasher 1/2 2
10181 Gear Case Flange 1 64002 Washer 5/16 9
10183 Helicon Gear 1 64007 Washer 1/4 Std. 1
10184 Bearing Support 2 64046 Washer 1,505 OD x 1.005 ID x 1/16 4
10186 Fork Shaft 1 64047 Washer 1.441 OD x .511 ID x 1/8 2
10191 Deflector 1 64048 Washer 1.375 OD x ,755 ID x 1/16 1
10193 Wing Nut 1 64052 Washer 13/16 OD x .380 ID x 24 Ga. 1
10195 Shear Bolt 2 .385
10197 Grip 1 65039 Locknut 3/8-16 6
10198 Cap 1 65040 Locknut 1/4-20 4
10260 Wave Washer 1 65042 Locknut 5/16-18 8
10289 Rod Hanger 1 65056 Whizlock Nut 1/4-20 6
10299 Front Gear Shaft 1 67004 Cotter Pin 1/8 X 1 1
10354 Zerk Fitting 4 70010 Flange Whizlock Screw 3/8-16 x 1/2 2
10371 Adjustment Plug 1 70011 Ribbed Neck Bolt 1/4-20 x 5/8 6
10390 Fork Cam 1 70012 Flange Whizlock Screw 1/4-20 x 3/4 5
10393 Safety Wire 1 74026 Taptite #10-24 x 3/8 6
10431 R. H. Rake 1 75004 Grip 1/2 ID 1
10432 L. H. Rake 1 83014 Spring 1
10437 Discharge Chute 1 NOT ILLUSTRATED
10438 Chute Clamp 3
10439 Chute Control Crank 1 78012 Sno-Thro Label 1
22110 Worm Gear 1 78014 Caution Label 1
22122 Fastener 2 78055 Clutch Instruction Decal 1
22123 Worm Clevis 1
54044 Bearing Cup 2 10997 SLICER BAR KIT
54045 Bearing Cone 2
54063 Ball Bearing 1 10242 Sheer Bar 1
55035 Bushing 4 62009 Carriage Bolt 5/16-18 x 1/2 2
56061 Seal 2 65042 Locknut 5/16-18 2
