INSERTING A BOBBIN

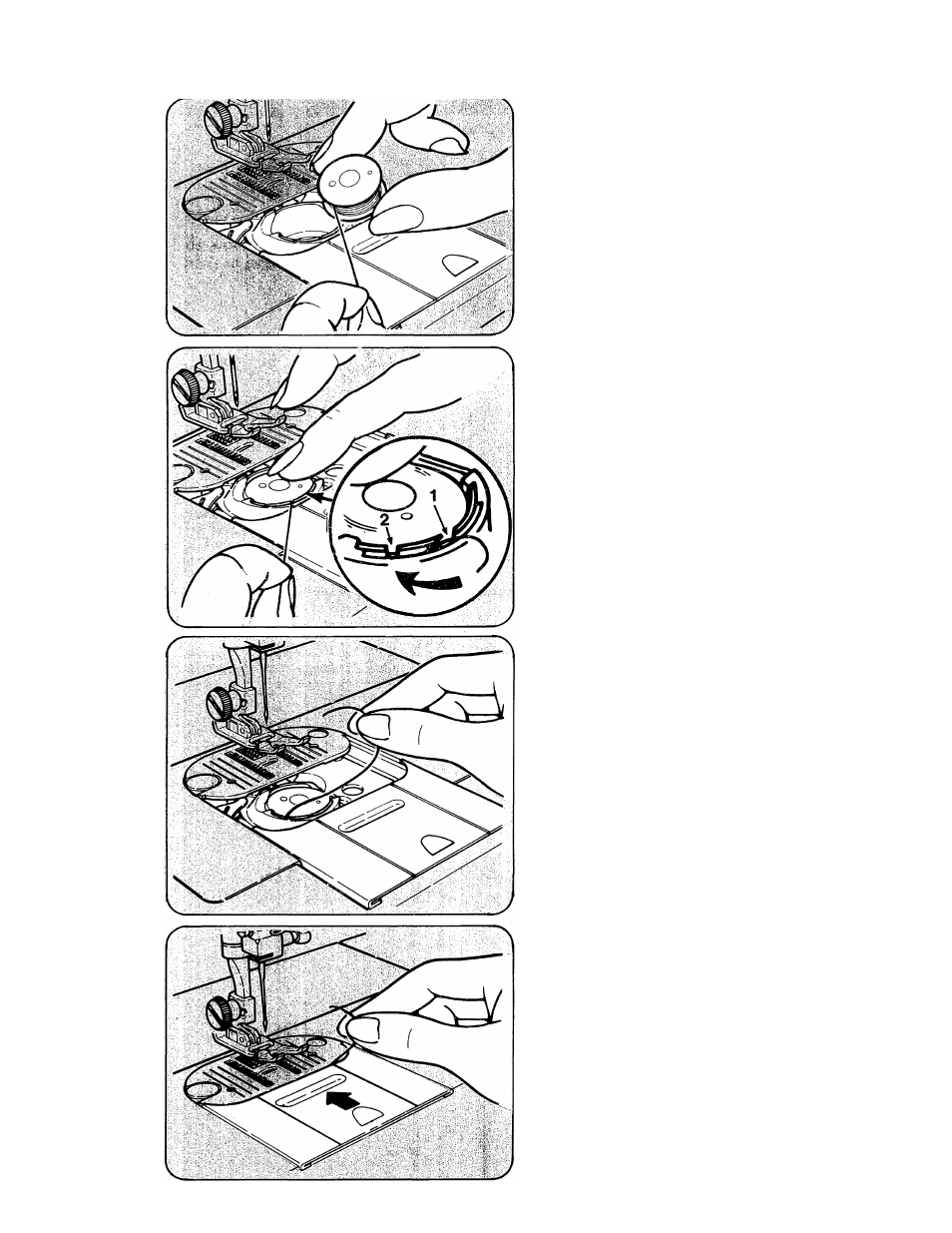

To insert a bobbin, follow the instructions below:
• Raise presser foot.
• Turn hand wheel toward you until
needle is in its highest position.
• Open slide plate and remove empty
bobbin.
1. Pull 4" (10cm) of thread from
replacement bobbin and insert
bobbin into case, as shown.
2. Holding bobbin in place, guide
thread into notch (1) and then down
the slot to the left and guide around
into notch (2).
3.
Draw several inches of thread
diagonally
across
the
bobbin
toward the back of the machine.
4. While holding thread on outside,
close the slide plate, allowing
thread to extend through the slot
between the slide plate and needle
plate.
• Follow directions for “Raising
Bobbin Thread” on page 14.
11
