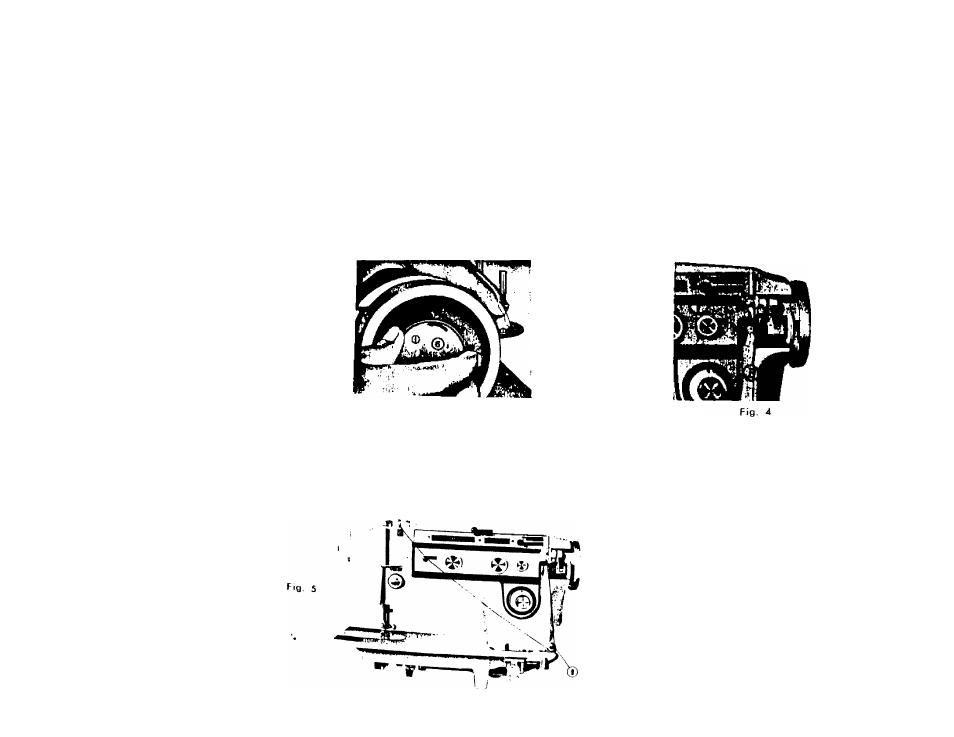

Fig. 3
WINDING THE BOBBIN
toward
^rom ihe slifching mechanism by Kjrning clutch (6, Fig.3)
you or counter clockwise.
Quide on arm°'
on one of the spool pins. Lead thread through the upper thread
an own through tension disc(9. Fig. 5,)at base of machine. Run end of thread
through a hole in bobbin edge (left fbnge
and from inside out) and place bobbin 0.on
spindle of bobbin winder (7, Fig. 4,) fitting
the notch bobbin over small pin on spindle.
Push bobbin winder against hand wheel.
Hold thread end loosely and start machine
slow ly.
Bobbin will stop winding when it is filled.
Turn clutch away from you until sewing
mechanism is again engaged so that needle
moves when you turn the hand wheel.
Break off loose thread end used to start
the winding and thread bobbin as slated on
Page 6.
