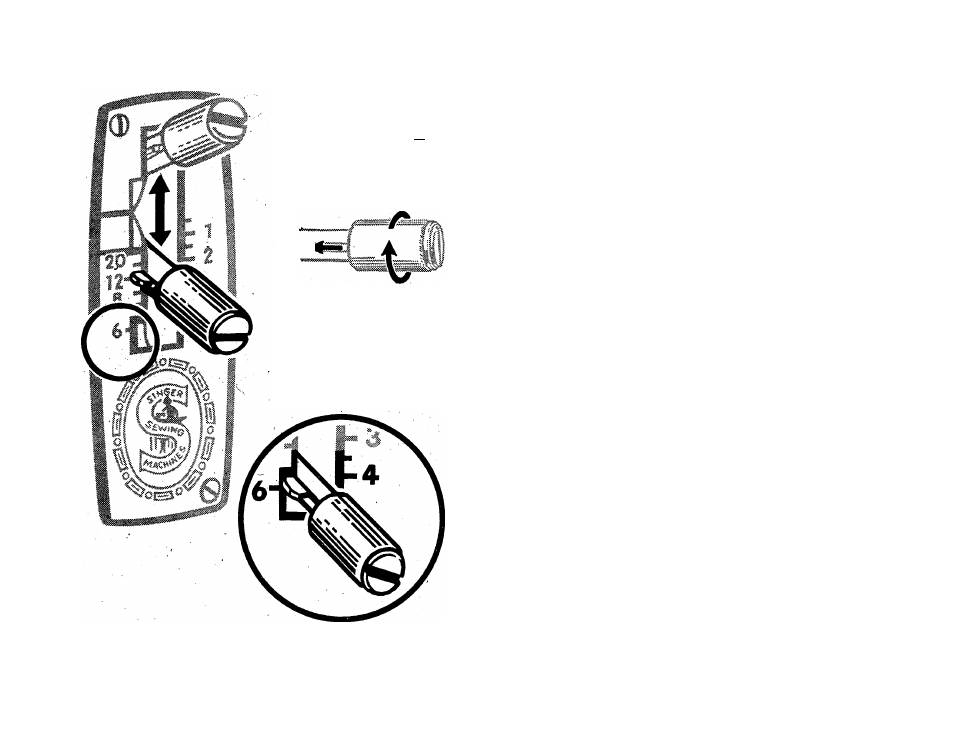

STITCH LENGTH REGULATOR
To release
^■V-WWAWW. v-y ♦ • • •• y%.
'v? m I ••.i/l’}
s
"□CKl
To tighten
Locked
setting
Numerals on the indicator represent
the number of stitches per inch.
The upper indented area of the indi­
cator represents stitch lengths above 20.
The lower indented area of the regu­
lator allows the No. 6 stitch length setting
to be "locked" in place when stitching
folds, pleats or multiple layers of heavy
fabric.
To set stitch length —
• Release pointer by turning thumb nut
to the left.
• Position lever for desired stitch length.
• Tighten pointer against plate by turn­
ing thumb nut to right.
Once the pointer has been positioned,
reverse stitching is accomplished by raising
the lever to its highest point. The No. 6
"locked" position cannot be reversed.
16
