SINGER 3214 User Manual
Page 3
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

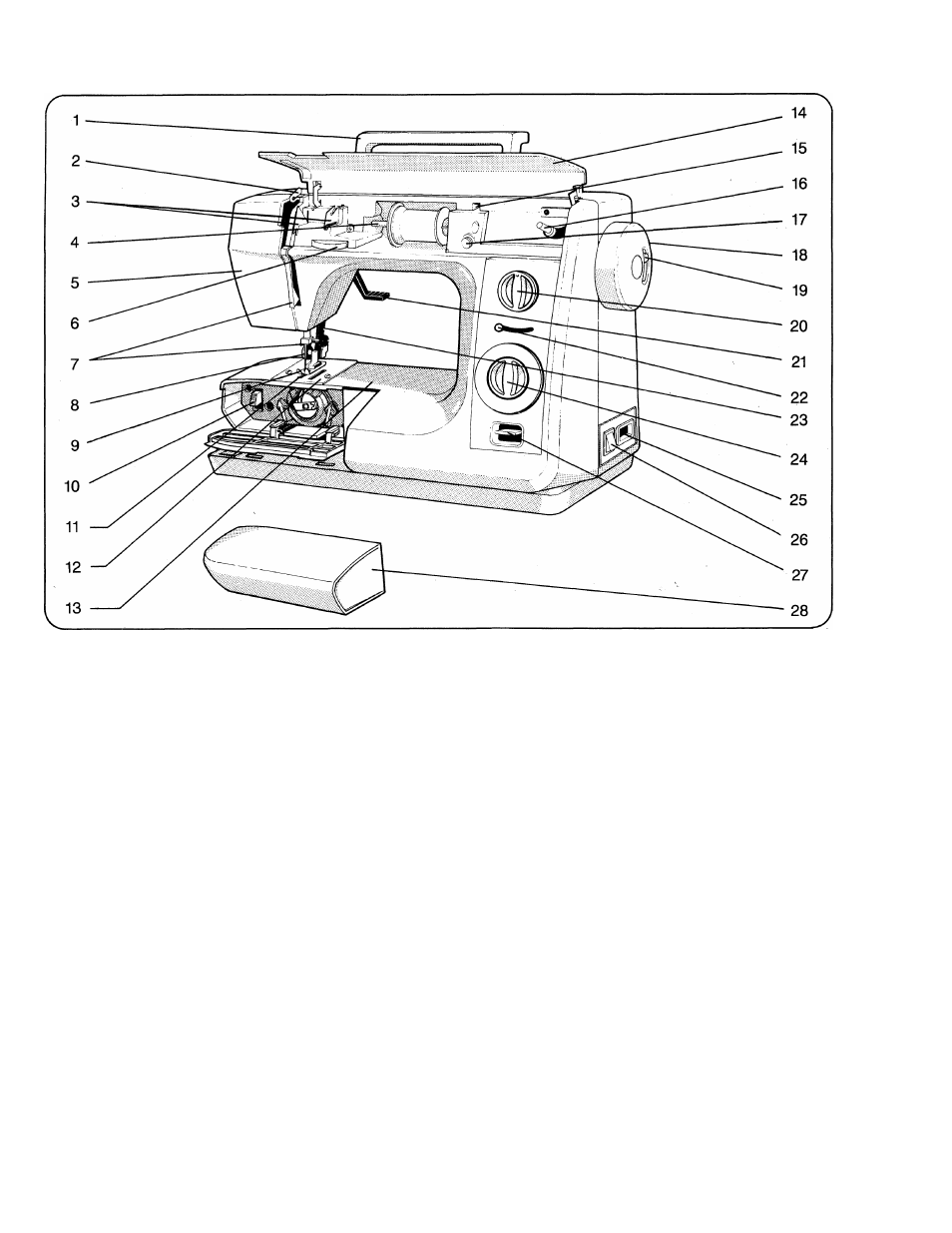

1. NAMES AND PARTS OF THE MACHINE
1. Handle
14.
2. Take-up lever
15.
3. Thread guide for bobbin winding
16.
4. Spool pin
17.
5. Face cover
18.
6. Upper thread tension dial
19.
7. Thread guide for upper threading
20.
8. Presser foot thumb screw
21.
9. Presser foot
22.
10. Drop feed lever
23.
11. Feed dog
24.
12. Needle plate
25.
13. Free arm
26.
27.
28.
