Caring for your machine
Removing and replacing bobbin case
Caution: Before cleaning or adjusting the machine,
remove plug from the socket outlet.
• Raise presser foot and needle.
• Open slide plate, remove bobbin and remove needle
plate.

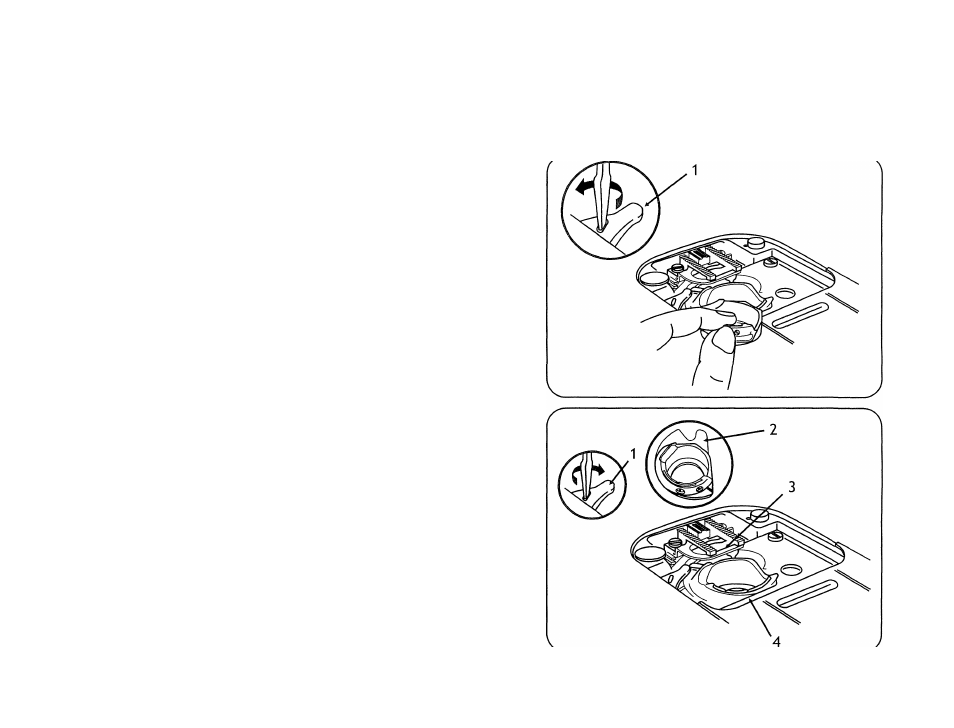

To remove bobbin case
• With a small screwdriver, turn bobbin case holder (1)
to the rear as far as it will go.
• Lifting the left side of the bobbin case, slide it out
from machine.
To replace bobbin case
• Guide forked end (2) of bobbin case under feed (3).
• Draw rim of bobbin case under position plate (4). Be
sure bobbin case is freely seated on hook race.
• Turn bobbin case holder (1) forward as far as it will
go, locking bobbin case in place.
Note: Turn handwheel towards you to check to make sure
it is properly replaced.
Insert needle plate.
Insert bobbin and close slide plate.
