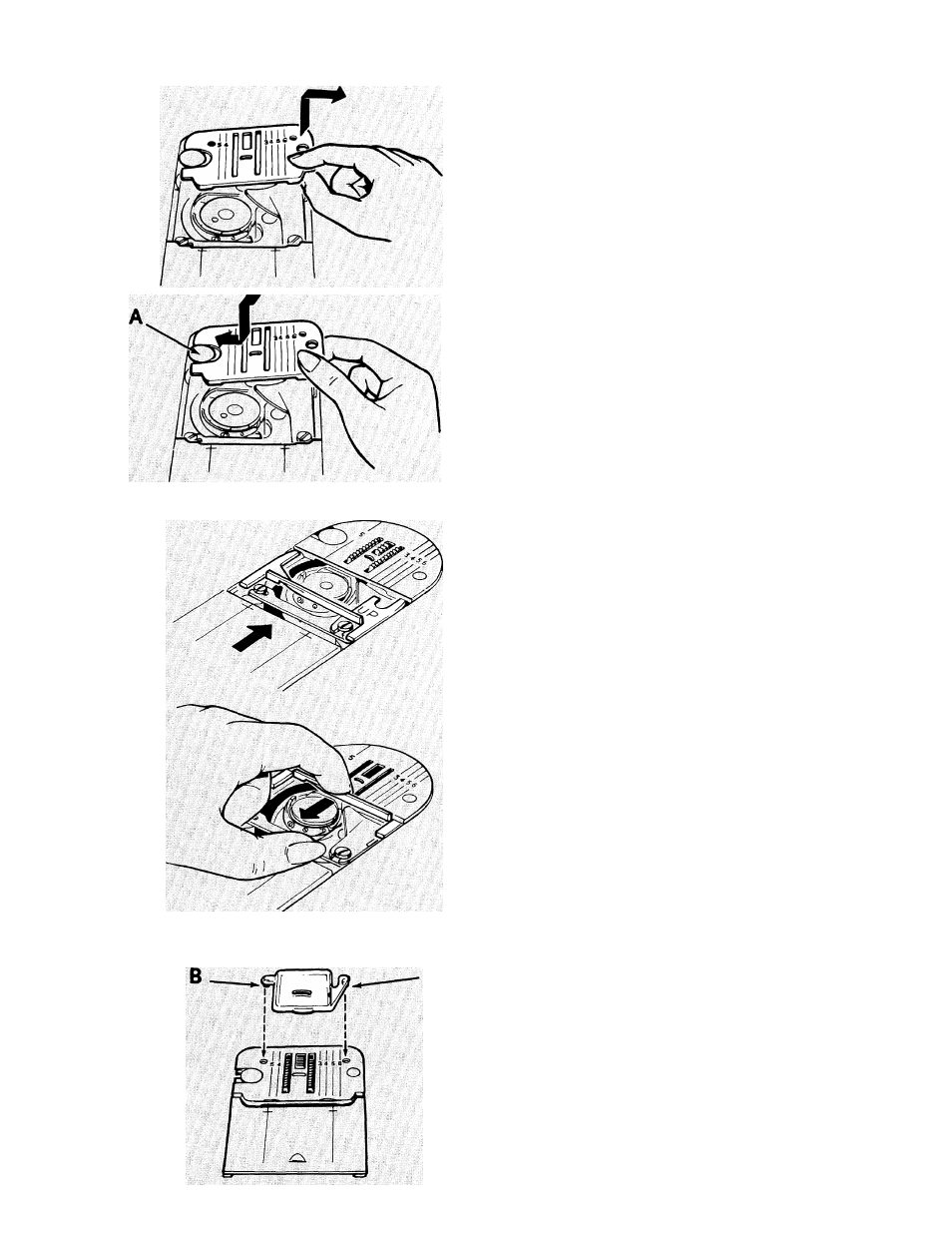

REMOVING AND REPLACING
NEEDLE PLATE
Raise presser foot
Raise needle to highest position.
Open slide plate. Place thumb under right
side of needle plate, lift it up and withdraw it
to right.
Replace needle plate under clamping pin A,
push it gently to the left and press down
until it snaps into place.
NEEDLE PLATE RAISING SHIM
(with model 7174)
1. To insert, open the slide plate, place the
raising shim in the slideway and close the
slide plate as shown.
• The raising shim will slide into place under
the needle plate, raising it above the feed.
2. To remove, open the slide plate and pull the
raising shim forward in the slideway.
ATTACHING SNAP-IN FEED COVER
(with model 7184)
• Raise presser foot.
• Raise needle to highest position by turning
hand wheel toward you. Open slide plate.
•
• Slide snap-in feed cover away from you
over needle plate until points B and C are
positioned directly over holes in needle pla
te as illustrated. Snap in point B. Then push
point C in toward point B until it snaps into
place. Close slide plate. To remove, open
slide plate then simply lift up front edge of
feed cover.
