9
Release the balance wheel by turning the stop
motion screw (C) over toward you. It is necessary
to hold the balance wheel while loosening the stop
motion screw.

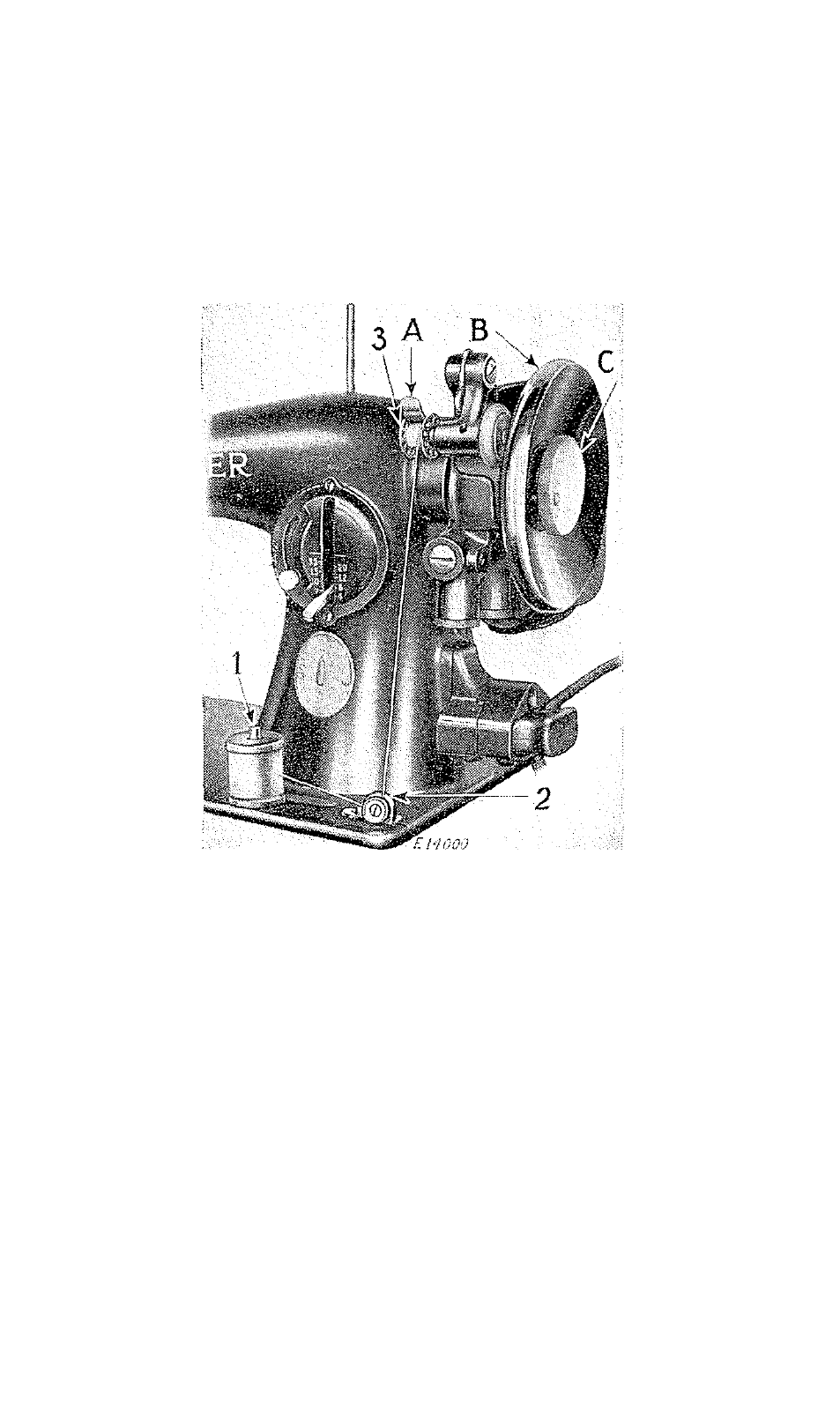

F
ig
. 5. W
i
.
xdi
.
vg
the
B
obbin
Place the bobbin on the bobbin winder spindle
and pusli it up closely against the shoulder, having
the small pin in the shoulder enter the hole in the
side of the bobbin. Put the spool of thread on the
spool pin (1). Draw the thread under and between
the tension discs (2) on the bed of the machine,
then pass the thread up and through one of the holes
(3) in the left side of the bobbin, from the inside.
Press down on the bobbin and the bobbin winder
latch (A, Fig. 5) will drop down and hold the bobbin
winder pulley against the hub of the balance wheel.
Then press the knee controller or the foot controller
the same as for sewing.
