How

to Remove the Shuttle

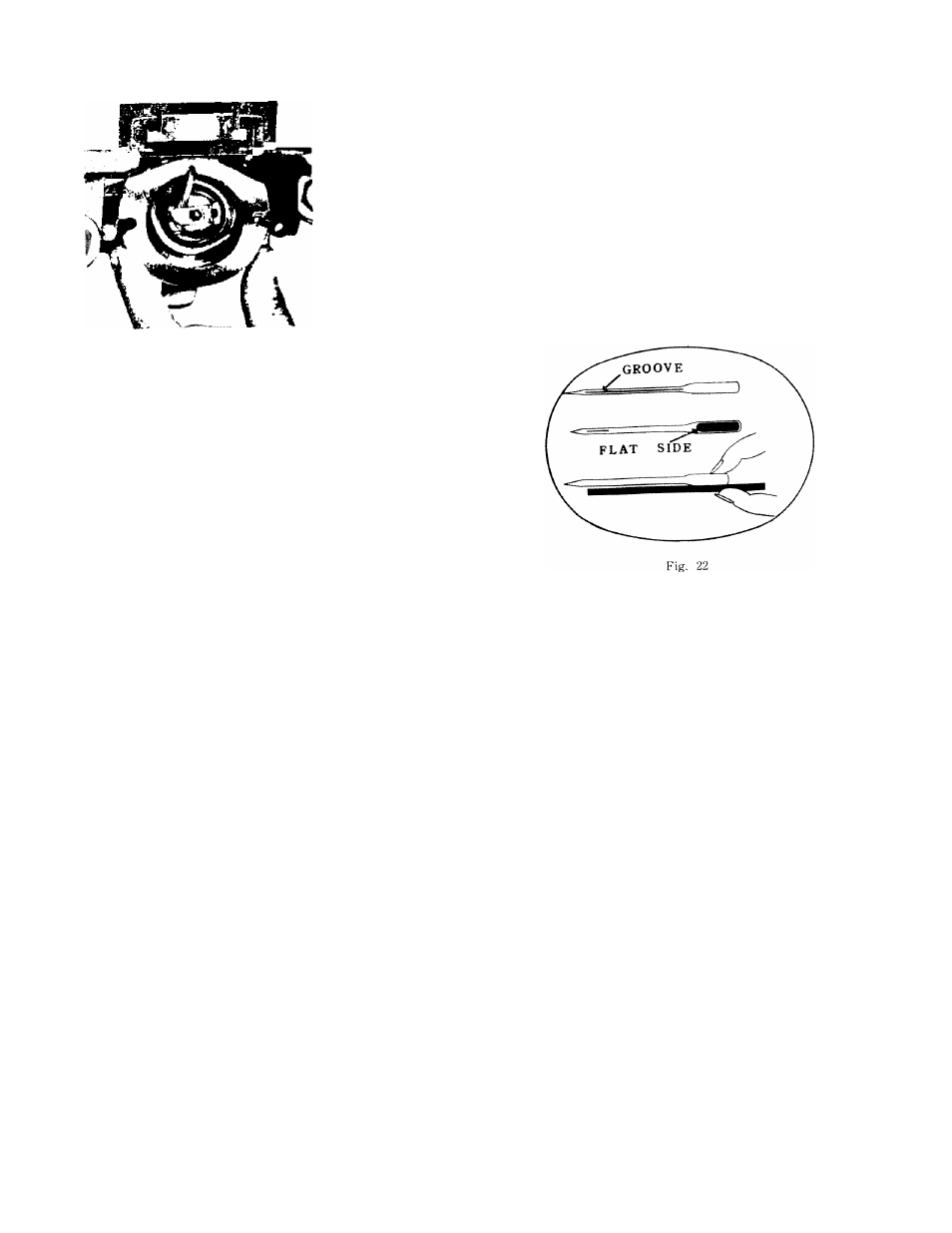

Fig. 21

i¥hen thread becomes tangled in the hook and shuttle

■ace it is necessary to take the under thread mechanism

ipart and clean it.
:iaise the needle bar to its highest position and tilt the

read back. Remove the bobbin case. Push the screws

>n either side of the race cover to the outside and the

;over can be removed easily. (See Fig. 21), Lift the

rook out.
Brush away all thread and lint from the race, hook and

•ace cover. Then, holding hook by the center pin, place

t in rase so that it fits firmly against driver.

?it cover over pins on each side of the race, with the

rotch at the top. Pull latch screws back over side open,

ngs of the cover.

How to Insert the Needle

Turn hand wheel toward you to raise needle bar to its

highest

point.

Loosen

needle

clamp

screw

and

insert

needle with its flat side to the right or toward the screw.

Push needle up as far as it will go, and tighten screw

securely.

Always

use

the

type

needle

recommended

the

supplier of your machine. Test on a flat surface to be

sure it is not bent (Fig. 22).

( 10 )
