10

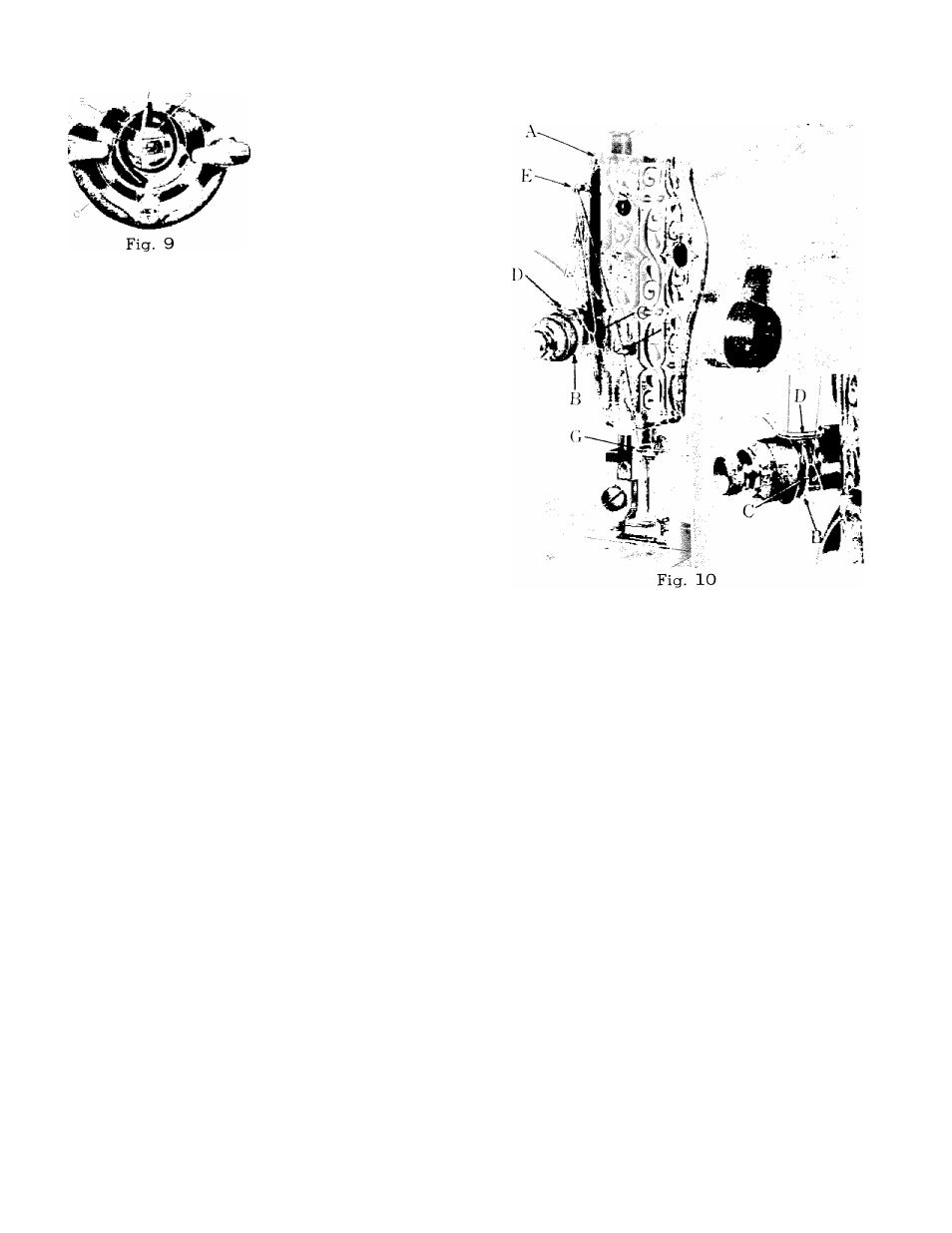

PLACING
BOBBIN
CASE IN SHUTTLE
Raise needle bar to high
est position, and lilt hing
ed
cover
plate.
See
12,
Fig.
1.)
'Hold
the
bob
bin case latch, 'D , Fig. 9,
between
the
thumb
and
forefinger of the left hand
with at least three inches,
of thread running from the top of the bobbin case
to the right. Insert and center the bobbin case on
the stud of the shuttle body, C,;. Be sure the bob
bin
case
finger,
(E;,
is
opposite
the
shuttle
race
notch,
(A).
Press
the
bobbin
case
(Bj
into
the
shuttle as far as possible until latch catches on the
center post of the shuttle. THEN release the bobbin
case latch, (D). Press bobbin case again after latch
has been released to make sure the bobbin case is
locked securely in place. Close the cover plate.
UPPER THREADING
; Fig. 10)
1) Place spool of thread on spool pin.
2) Lead thread through upper thread guide A
back of face plate.
3 i down and around tension discs B from back
front.
on
to
