TRACTOR - - MODEL NUMBER 917.258473

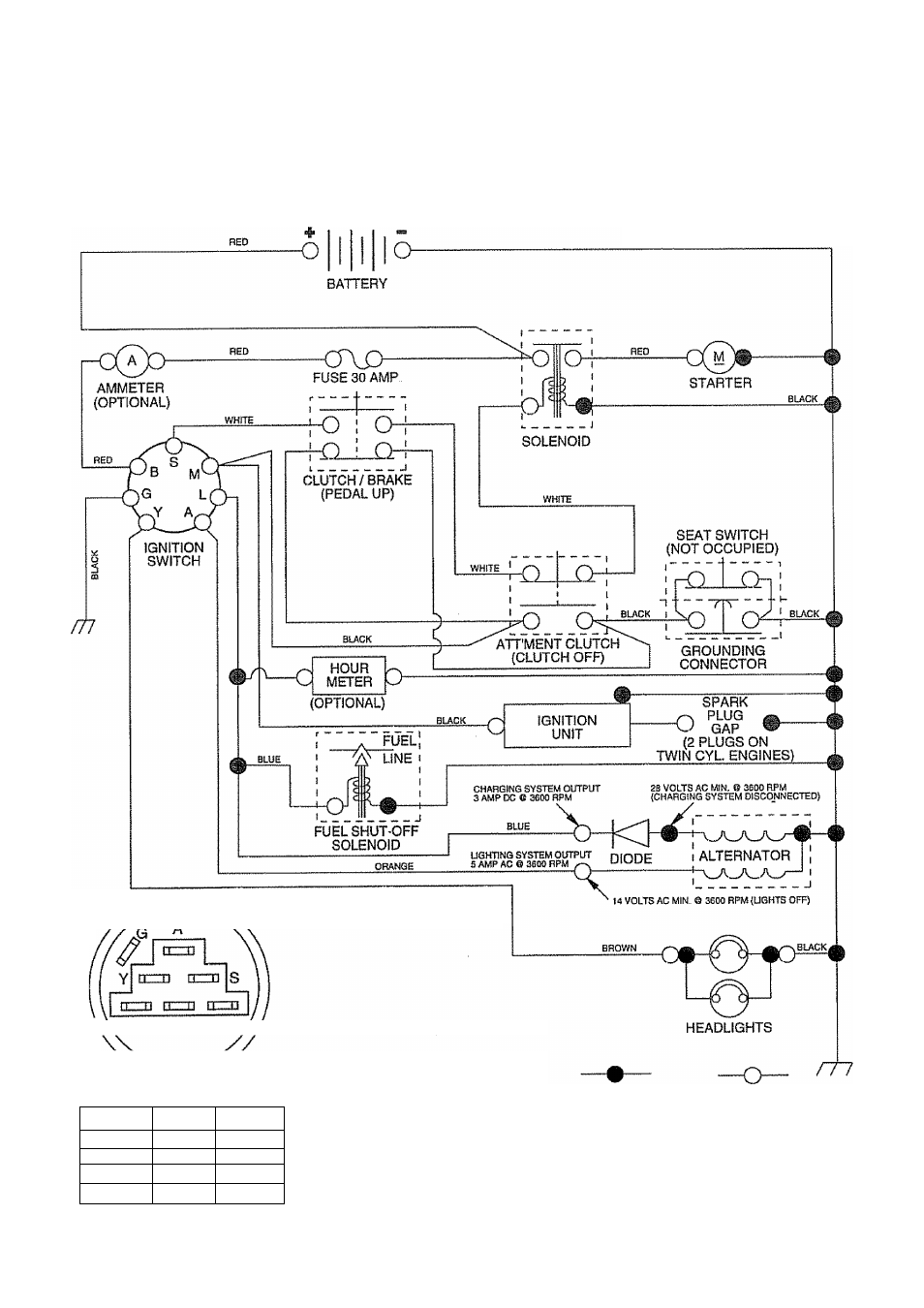

SCHEMATIC

BLACK

IGNITION SWITCH

POSITION

CIRCUIT

“MAKE”

OFF

Q + M + L

NONE

RUN/LiBHT

B+L

A + Y

HUN

B + L

NONE

START

B + L + S

NONE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST,

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING,
