SERVICE AND ADJUSTMENTS

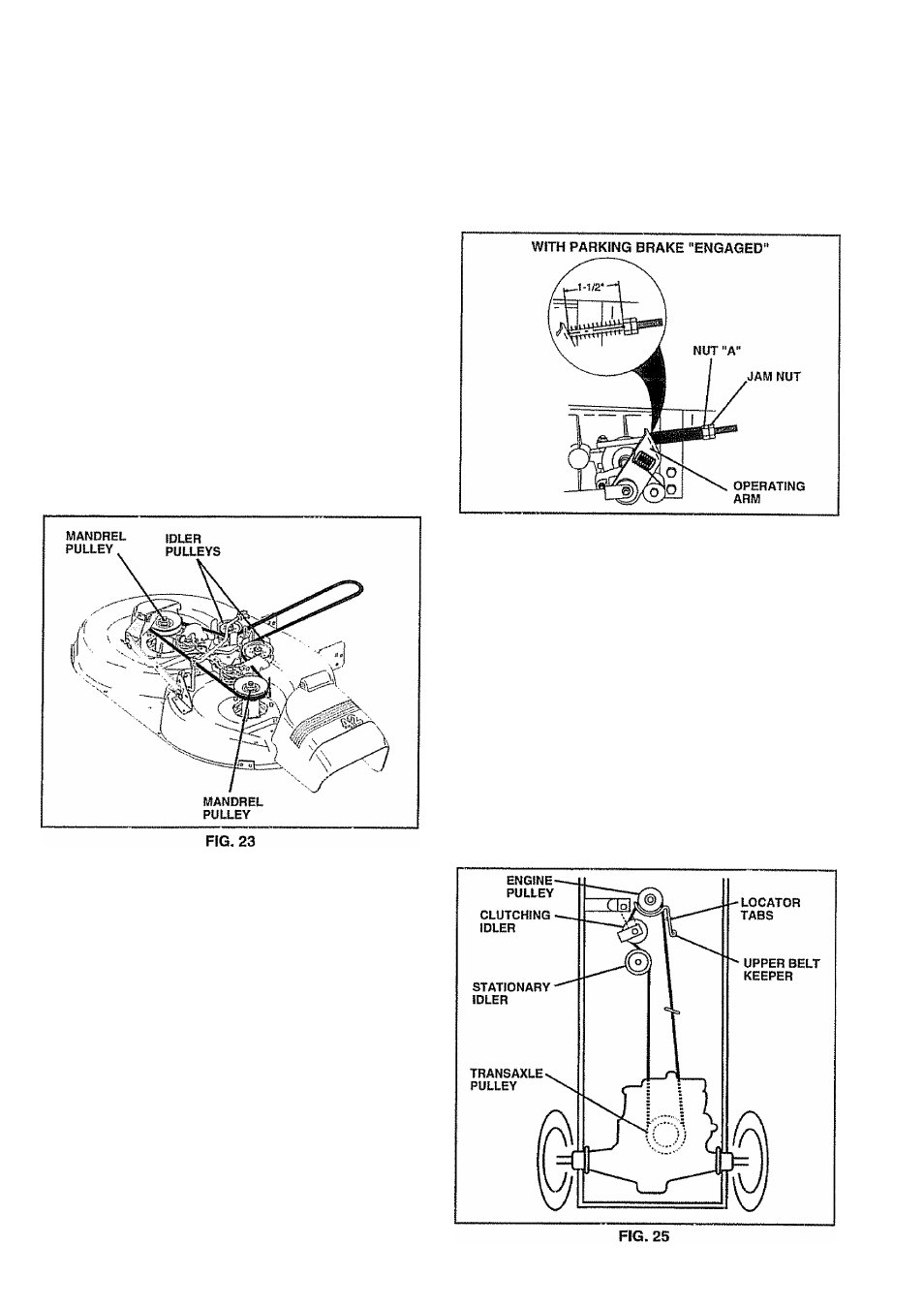

TO REPLACE MOWER BLADE DRIVE BELT
(See Fig. 23)
The mower blade drive belt may be replaced without tools.
Park the tractor on level surface. Engage parking brake.
BELT REMOVAL -
» Remove mower from tractor (See 'TO REMOVE
MOWER" in this section of this manual).
• Work belt off both mandrel pulleys and idler pulleys.
« Pull belt away from mower.
BELT INSTALLATION ~
* Install new belt in reverse order of removal.
" Make sure belt is in ail pulley grooves and inside ail belt
guides.
» Install mower in reverse order of removal instmctions.
TO ADJUST BRAKE (See Fig. 24)
Your tractor is equipped with an adjustable brake system
which is mounted on the right side of the transaxle.
If tractor requires more than six (6) feet stopping distance
at high speed in highest gear, then brake must be adjusted.
• Depress clutch/brake pedai and engage parking brake.
• Measure distance between brake operating arm and
nut “A" on brake rod.
nut against nut “A".
Retighten jam
Road test tractor for proper stopping distance as stated
above. Readjust if necessary. If stopping distance is
stlH greater than six (6) feet in highest gear, further
maintenance is necessary. Contact your nearest au­
thorized service center/department.
FIG. 24
TO REPLACE MOTION DRIVE BELT
(See Fig. 25)
Park the tractor on level surface. Engage parking brake.
For assistance, there is a belt installation guide decal on
bottom side of left footrest,
» Remove mower (See 'TO REMOVE MOWER” in this
section of this manual.)
■* Remove upper belt keeper.
• Remove belt from stationary idler and clutching idler.
® Pull belt slack toward rear of tractor. Remove belt
upwards from transaxle pulley by deflecting belt keep­
ers,
» Pull beittoward front of tractorand remove downwards
from around engine pulley.
• Install new belt by reversing above procedure.
IMPORTANT: MAKE SURE UPPER BELT KEEPER IS
POSITIONED PROPERLY BETWEEN LOCATOR TABS.
23
