SERVICE AND ADJUSTMENTS

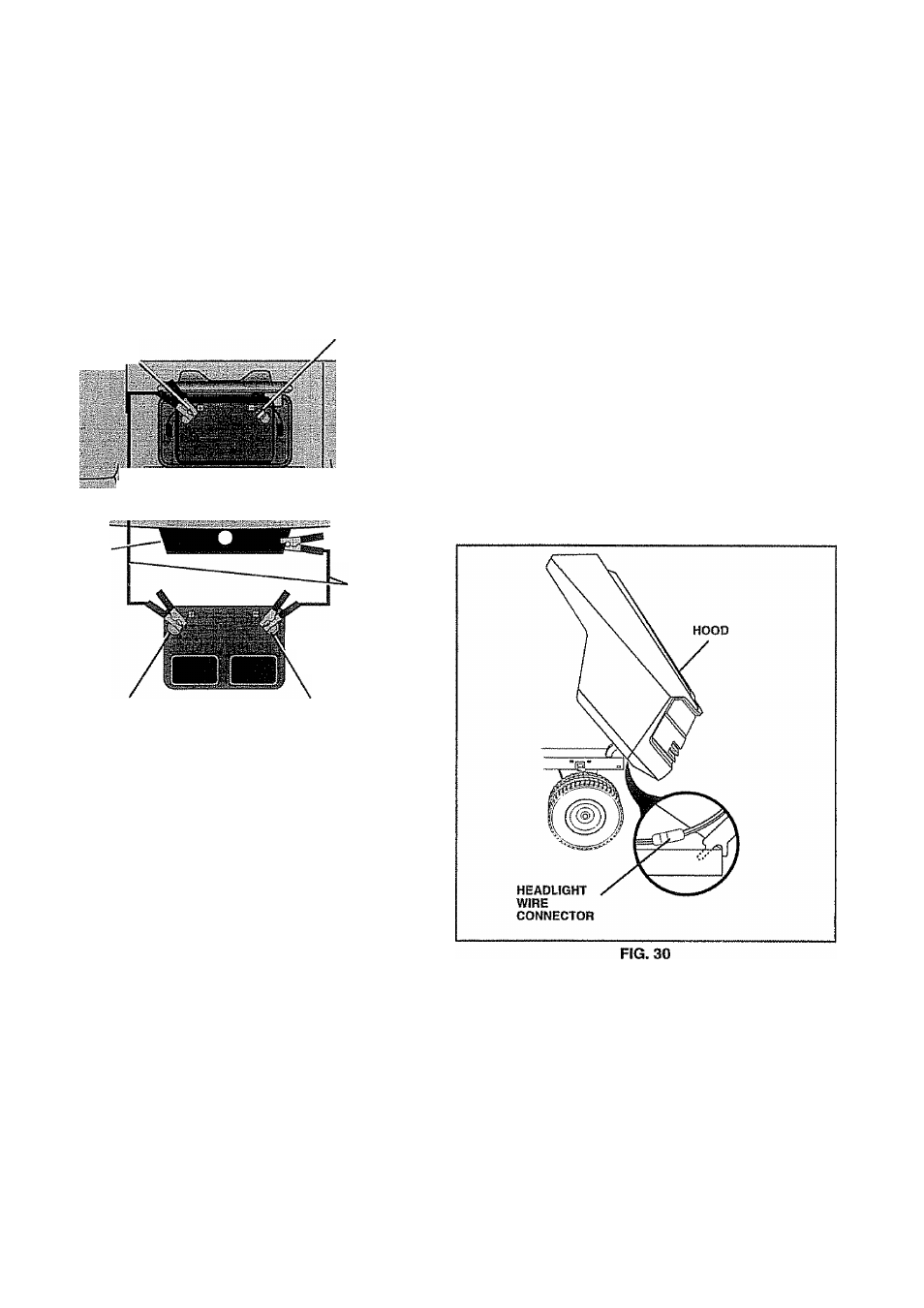

TO REMOVE CABLES, REVERSE ORDER -

■> BLACK cable first from chassis and then from the fully

charged battery.

<■ RED cable last from both batteries;

POSITIVE TERMINAL

NEGATIVE TERMINAL

CHASSIS

_____________________________________________

CABLES

r~---.-.„CHARGED

BATTERY

POSITIVE TERMINAL

NEGATIVE TERMINAL

FIG. 29

TO REPLACE HEADLIGHT BULB

» Raise hood,

• Pull bulb holder out of the hole in the backside of the

Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.

•

Check wiring. See electrical wiring diagram in the
Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY
{See Fig. 30)

•

Raise hood,

•

Unsnap headiight wire connector.

•

Stand in front of tractor. Grasp hood at sides, tiittoward
engine and iift off of tractor.

•

To replace, reverse above procedures.
