ASSEMBLY

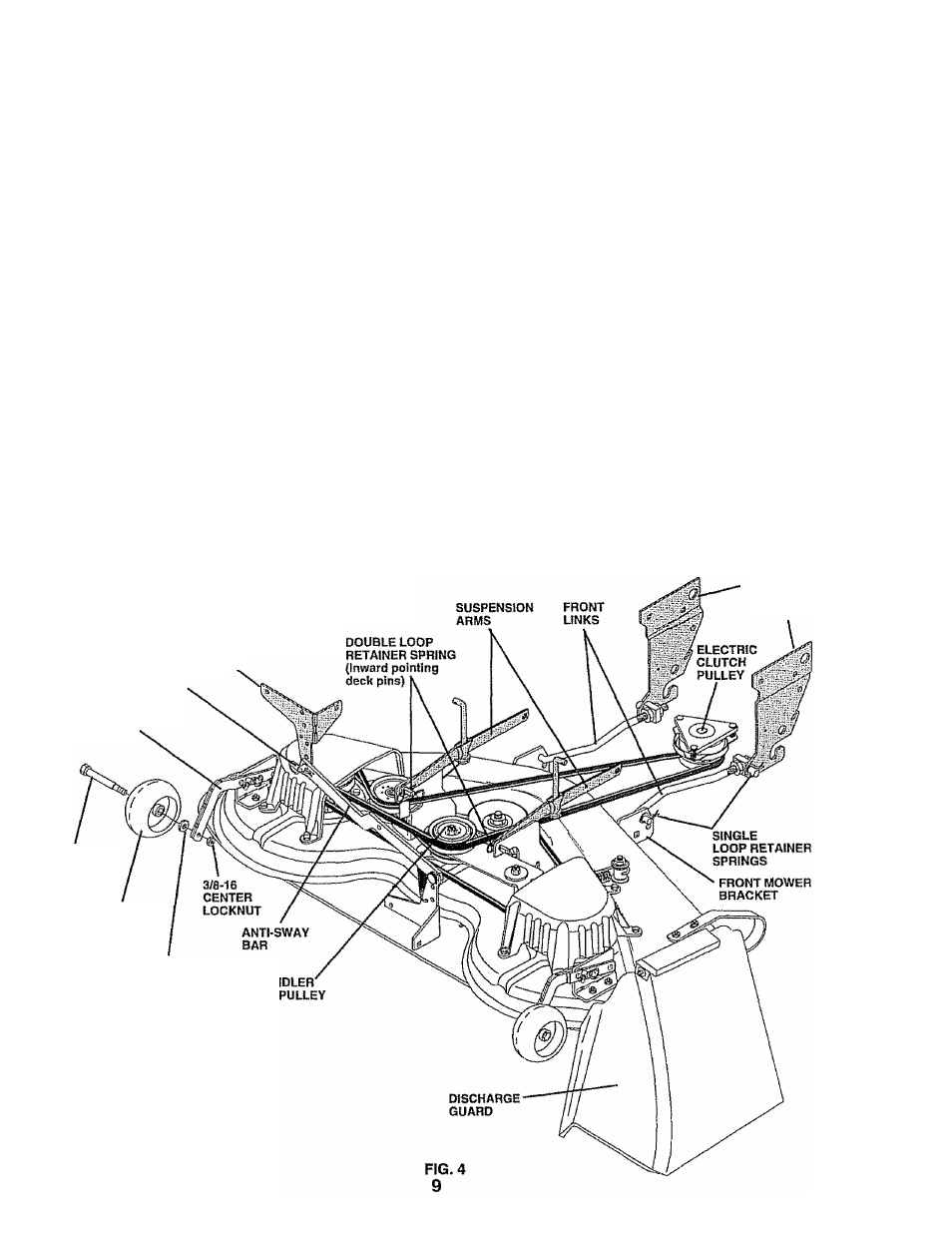

INSTALL POWER AND DRIVE BELT {See
Figs. 4 and 5)
Be sure tractor is on level surface and mower suspension
arms are raised with attachment lift control. Engage park
ing brake.
» Cut and remove tie down securing anti-sway bar.
Swing anti-sway bar to left side of mower deck,
» Slide mower under tractor with discharge guard to right
side of tractor.
IMPORTANT:
CHECK BELT FOR PROPER ROUTING IN
ALL
MOWER
PULLEY
GROOVES.
INSTALL
BELT
INTO
ELECTRIC CLUTCH PULLEY GROOVE.
® Install one front link In top hole of the L.H. front mower
bracket and L.H. front suspension bracket. Retain with
two single loop retainer springs as shown.
•> Install second front link in R.H. front suspension bracket
and retain with single loop retainer spring as shown,
• Slide right side of mower deck back and install link in
top hole of R.H. front mower bracket. Retain with single
loop retainer spring as shown.
« Turn height adjustment knob counterciockwise until it
stops,
” Lower mower linkage with attachment lift control,
“ Place the suspension arms on inward pointing deck
pins. If necessary, rock and raise front of mower to
align deck pins with the holes in suspension arms.
Retain with double loop retainer springs.
® Connect anti-sway bar to chassis bracket under left
footrest and retain with double loop retainer spring,
® Turn height adjustment knob clockwise to remove
slack from mower suspension.
• Raise deck to highest position.
» Assemble gauge wheels as shown using long shoulder
bolls, 3/8 washers, and 3/8-16 center locknuts. Tighten
securely.
® Adjust gauge wheels before operating moweras shown
in the Operation section of this manual.
CHECK DECK LEVELNESS
For best cutting results, mower housing should be properly
leveled,, See 'TO LEVEL MOWER HOUSING” in the
Service and Adjustments section of this manual,
CHECK FOR PROPER POSITION OF ALL
BELTS
See the figures that are shown for replacing motion, mower
drive, and mower blade drive belts in the Service and
Adjustments section of this manual. Verifythatthe beitsare
routed correctly.
FRONT
SUSPENSION
BRACKETS
DOUBLE LOOP
RETAINER SPRING
L.H. GAUGE
WHEEL BAR
CHASSIS
BRACKET
SHOULDER
BOLT
GAUGE
WHEEL
3/8 WASHER
