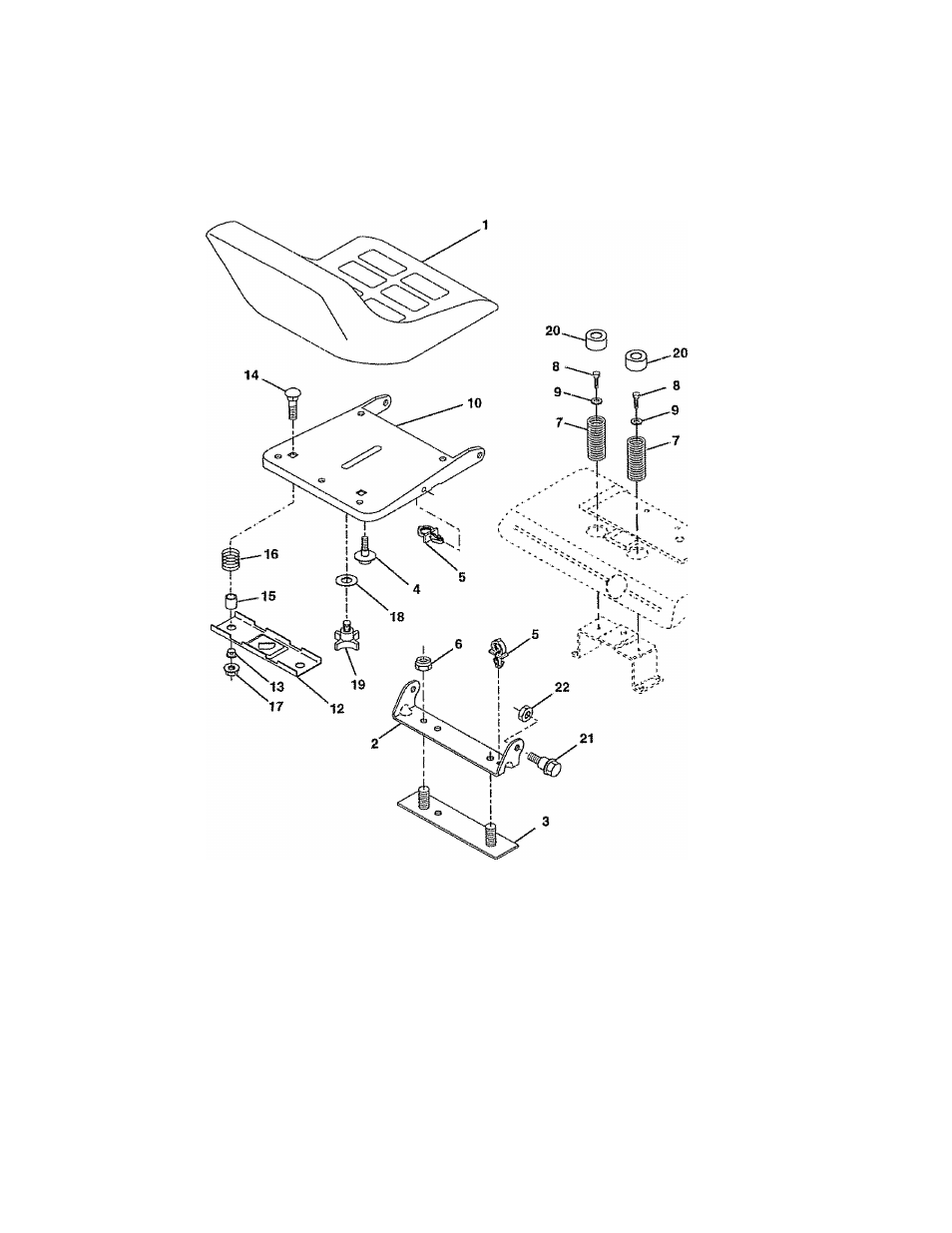

SEAT ASSEMBLY
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.250490
'"4
KEY
PART
NO. NO.
1 140124
2
140551
3
140675
4
127018X
5 145006
6 73680600
7
124181X
a
17490508
9
19131614
10 140552
12 121246X
13 121248X
DESCRIPTION
Seat
Bracket, Pivot Seat
Strap, Fender
Bolt, Shoulder 5/16-18 X .62
Clip, Push In Hinged
Nut.Crownlock 3/8-16 Unc
Spring, Seat Cprsn
Screw,
Thdrol 5/16-18 X 1/2
Washer 13/32X1 X14Qa.
Pan, Seat
Bracket, Mounting Switch
Bushing, Snap
KEY
PART
NO. NO,
14 72050411
15 121249X
16 123740X
17 123976X
18 19171912
19 120Q68X
20 124238X
21 139888
22 73680500
DESCRIPTION
Bolt, Carriage 1/4-20 X1-3/8
Spacer, Split
Spring, Cprsn
Nut, Lock 1/4 Lge Fig Gr. 5
Washer 17/32 X 1-3/16 X 12 Ga.
Knob, Seat 1/2-13 Unc
Cap, Spring Seat
Boit, Shoulder 5/16-18 Unc
Nut.Crownlock 5/16-18 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
