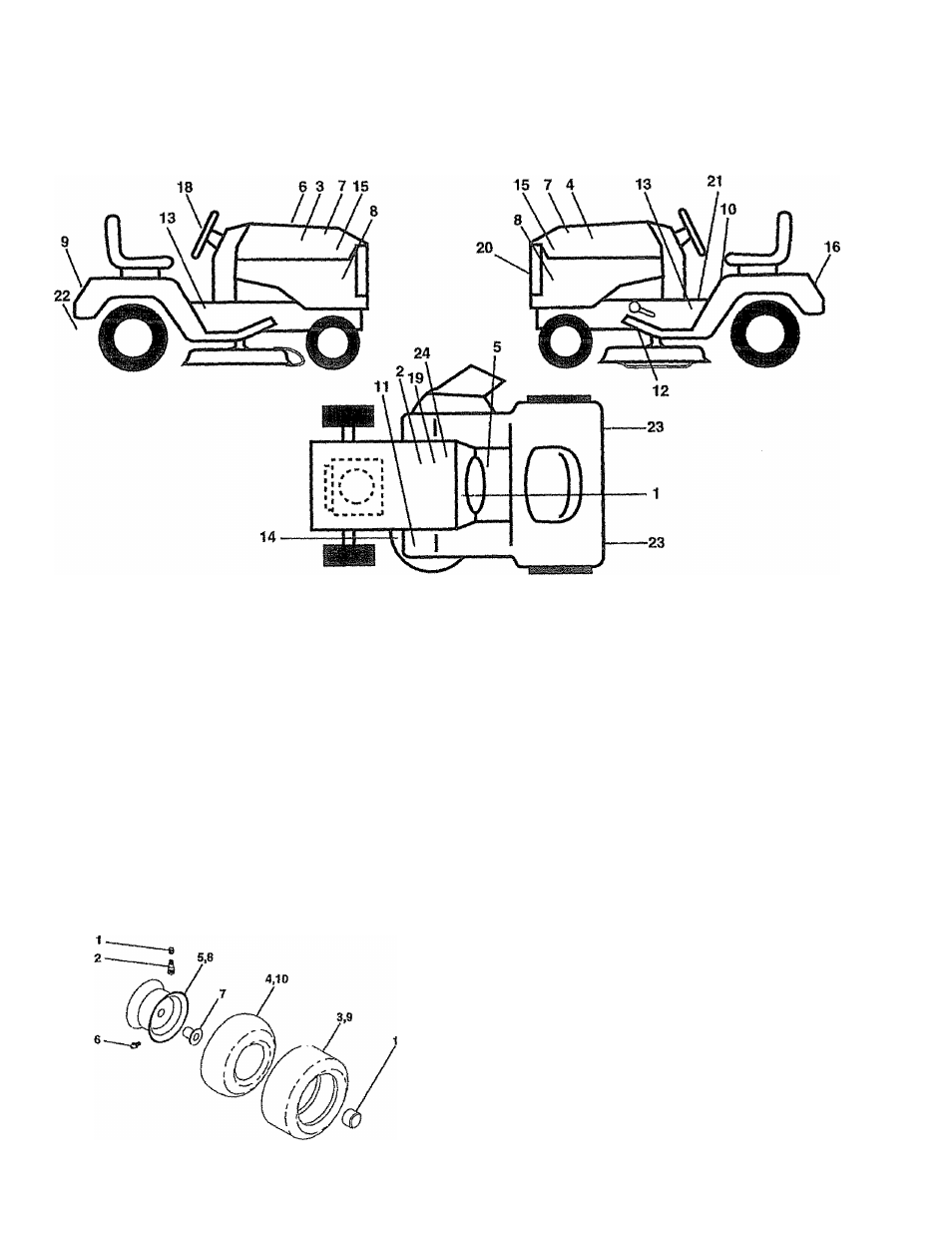

DECALS
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.250490
KEY
NO. PART
NO.
DESCRIPTION
1 13B955 Decal, Operating Instruction
2 145003 Decai, Batteiy DNGR/PSN/SRS.
3 138042
ENG,
Decal, Hood, Craftsman, RH
4 138043 Decai, Hood, Craftsman, LH
5 140837 Decal, Brake Parking Saddle
6 133644 Decal, Maintenance
7 138048 Decai, Side Pane!
8 142242 Decal, ins. Hood
9 128314 Decal, Fender, Craftsman
10 137537 Decal, Caution
11 4900J Decal, Clutch/Brake
12 146790 Decal, V-Belt Drive Schematic
13 140431 Decat, Chassis, Hydro 44“
WHEELS & TIRES
KEY PART
NO. NO.
14 139346
15 142243
16 142270
18 132266
19 138047
20 142254
21 142336
22 142342
23 106202X
24 146833
- - 138311
- ^
145245
- « 145247
148917
, »
148918
DESCRIPTION
Decal, V-Belt Schematic
Decal Hood Insert Hd GT
Decal Fender Hydro White
Decal, insert Strg
Decal, Battery
Decal Grille HDGT GT6000 USA B
Decal SDL Cold Start
Decal Drawbar CNTRL
Reflector, Taillight
Decal, Battery Wet Front Sears
Decal Handle LFT Hieght Adj. (Lift
Handle)
Pad Footrest
Fastener Pop-in Footrest
Manual, Owner’s (Eng)
Manual, Owner’s (Span)
KEY PART
NO.
NO. DESCRIPTION
1 59192 Cap. Valve, Tire
2 65139 Stem, Valve
3 106230X Tire, Front
4 8134H Tube. Front (Service Item Only)
5 106228X427 Rtm Assembly, Front
6 6856M
Fitting, Grease
7 9040H Bearing, Flange (Front Wheel Only)
8 106277X427 Rim Assembly, Rear
9 1Q5588X Tire, Rear
10 7154J Tube, Rear
11 104757X Cap Hub Axle BLK 1.50 x 1.00
- - 144334 Sealant, Tire {10 oz. Tube)
NOTE: Ail component dimensions given in U.S. inches
1 inch = 25.4 mm
45
