ASSEMBLY
HOW TO INSTALL THE BATTERY

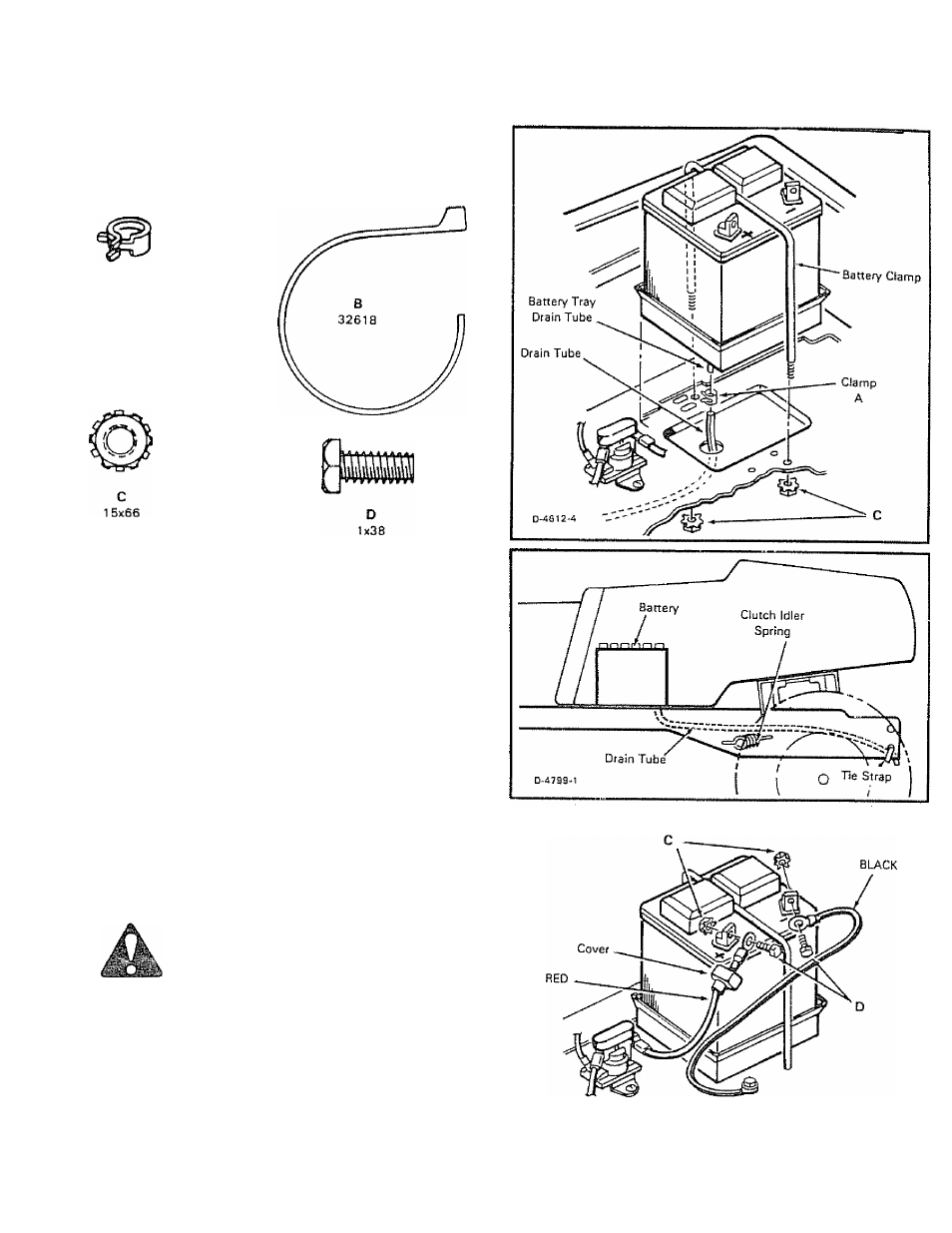

Use the fasteners shown below to install the battery. The fasteners
are shown full size.
A
91565
1.
Check the level of the acid If the acid has fallen below the
correct level, add water to the correct level.
2
Attach the drain tube to the bottom of the battery tray.
Fasten the drain tubs with clamp (A) as shown,. Push the
drain tube through the hole in the frame as shown, Pull the
drain tube along the frame to the rear of the unit. Make sure
the drain tube is above the clutch idler spring. Fasten the
drain tube to the side of the frame with tie strap (B) as
shown.
3
Set the battery in the battery tray. Make sure the battery
terminals are towards the center of the frame The correct
position of the battery terminals are shown in the illustration.
Make sure there are not any wires under the battery tray or
the battery
4
Fasten the battery with the battery clamp as shown. Make
sure there are not any wires between the battery and the
battery clamp.
5. Slide the cover for the positive |+) terminal onto the red
battery cable as shown.
WARNING: To prevent sparks, fasten the red
cable to the positive (+) terminal before you
connect the black cable to the negative (-)
terminal.
6
Fasten the red battery cable to the positive (+) terminal with
the nut and bolt as shown,
7,
Slide the cover over the positive {+) terminal.
8,
Fasten the black battery cable to the negative (-) terminal
with the nut and bolt as shown,.
9,
To prevent corrosion, apply grease to the battery terminals
D-i627-3
F-92533
10
