Sears 917.251551 - Manual (Page 43)

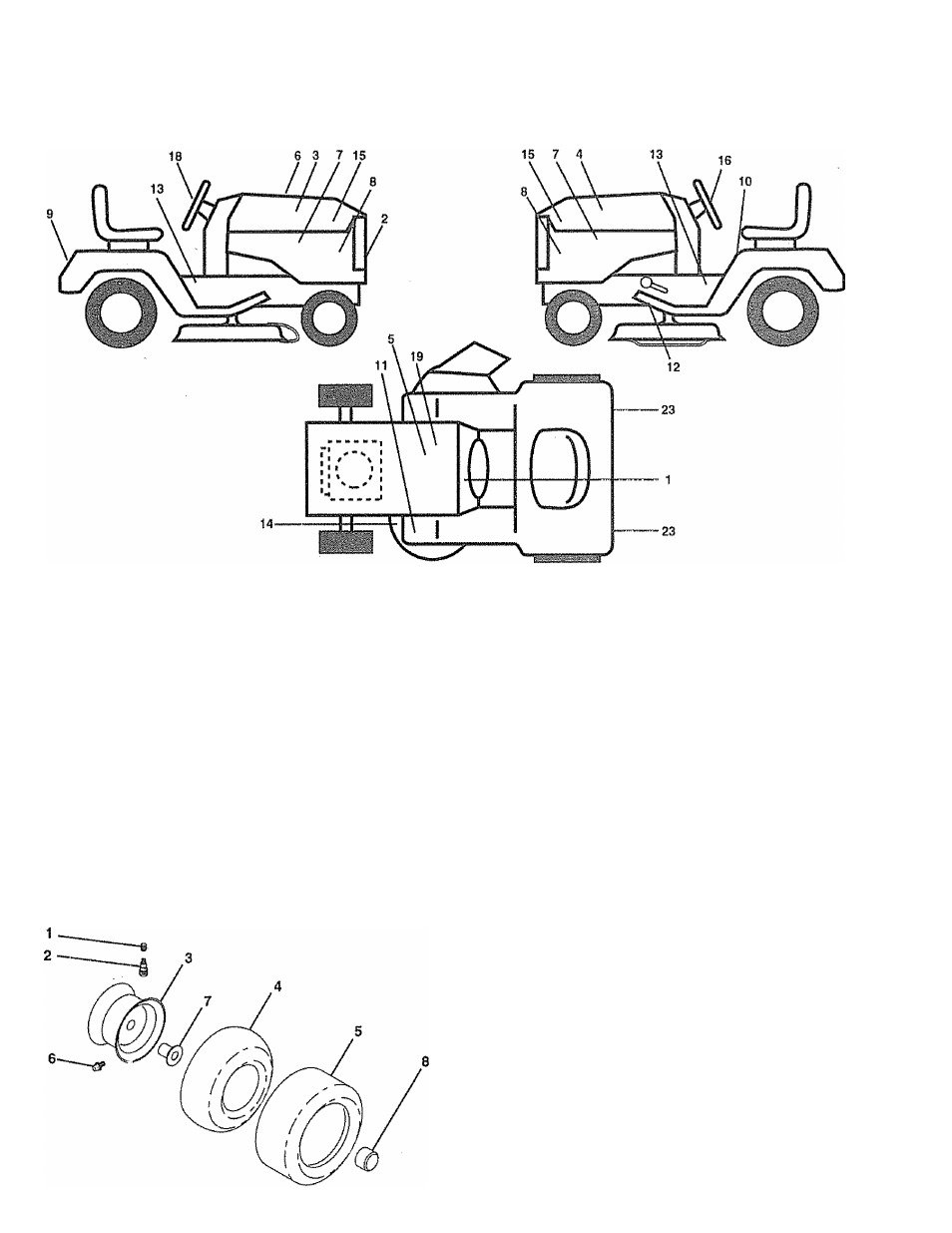

DECALS
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.251551
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 138955 Decal, Operating Instruction 13 148957
2 151448 Decal, Grill , 14 139346
3 146705 Decal, Hood, Craftsman, RH 15 151568
4 146706 Decal, Hood, Craftsman, LH 16 150333
5 149516 Decal, Battery DNGR/PSN ENG 18 146710
Asm 19 138047
6 133644 Decal, Maintenance 23 106202X
7 138048 Decal, Side Pane! . . 138311
8 142241 Decal, Side Panel
9 146709 Decal, Fender, Craftsman . - 145245
10 137537 Decal, Caution - . 145247
11 4900J Decal, Clutch/Brake - - 1S4441
12 146047 Decal, V-Beit Drive Schematic - - 154442
DESCRIPTION
Decal, Chassis, 6 Speed/50"
Decal, V-Belt Schematic
Decal Hood Insert
Decal, Cap CNSMR Help Line SRS
Decal, Insert Strg
Decal, Battery
Reflector, Taillight
Decal, Handle Lft Height Adjust
(Lift Handle)
Pad, Footrest
Fastener, Pop-In Footrest
Manual, Owner's (Eng)
Manual, Owner's (Span)
WHEELS & TIRES
KEY PART
NO. NO.
1 59192
2 65139
3
148736X427
148738X427
4 8134H
7154J
5 148741
151607
6 278H
6856M
7 9040H
8 104757X
- - ’144334
DESCRIPTION
Cap, Valve, Tire
Stem, Valve
Rim Assembly, Front
Rim Assembly, Rear
Tube, Front (Service Item Only)
Tube, Rear (Service Item Only)
Tire, Front
Tire, Rear
Fitting, Grease (Front Wheel Only)
Fitting, Grease
Bearing, Flange (Front Wheel Only)
Cap, Axle (Front Wheel Only)
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S, inches
1 inch = 25,4 mm
43
