Page 26: Service and adjustments

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

SERVICE AND ADJUSTMENTS

ENGINE

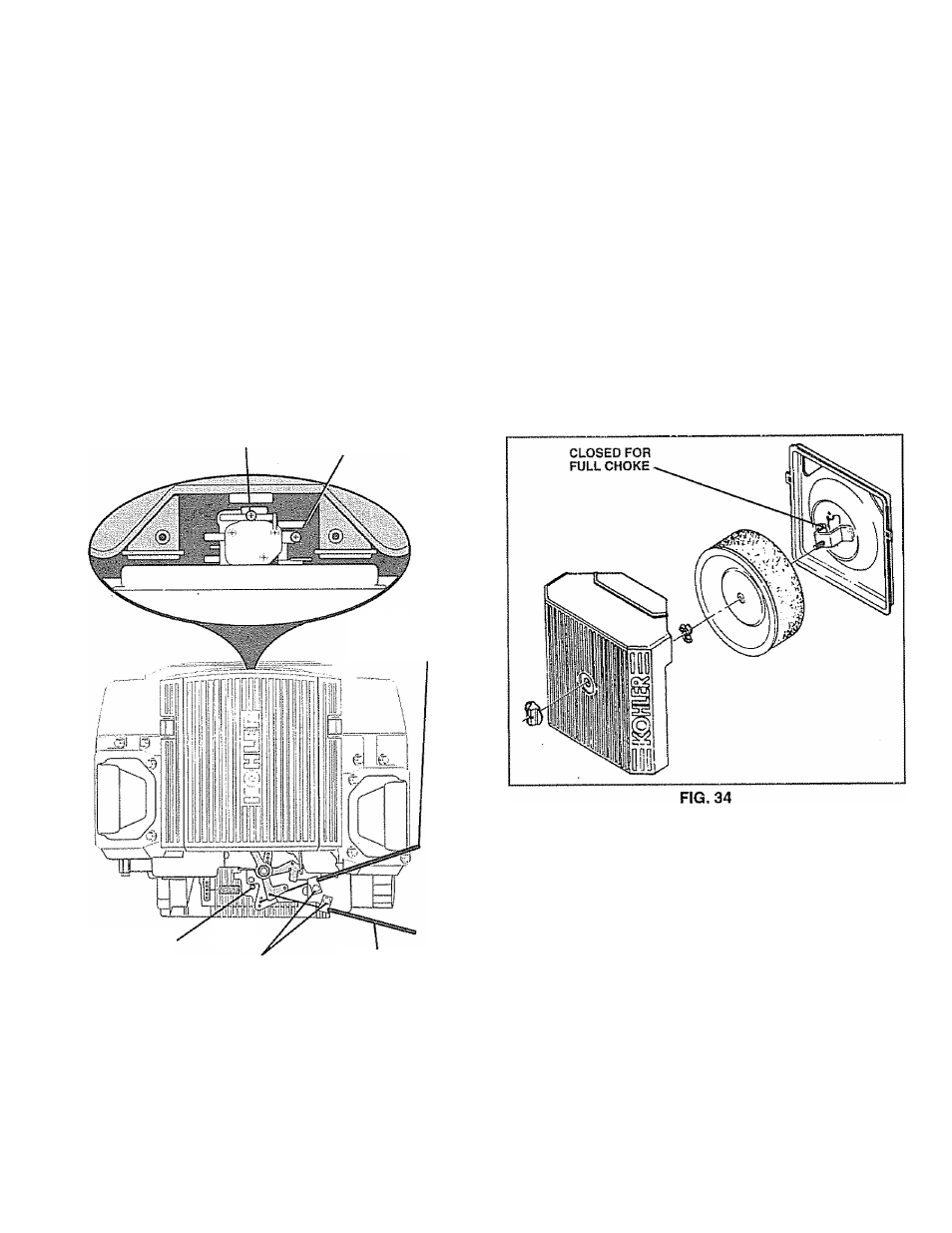

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 33)

The throttle control has been preset at the factory and

adjustment should not be necessary .Check adjustment as
described below before loosening cable, If adjustment is

necessary, proceed as follows;

<■ With engine not running, move throttle control lever to

fast (%) position,

» Check that speed control lever is against stop screw. If

it is not, loosen casing clamp screw and pul! throttle
cable until lever fs against screw. Tighten clamp screw
securely.

IDLE FUEL

ADJUSTIMG
SCREW

IDLE SPEED
ADJUSTING
SCREW

THROTTLE

CONTROL
CABLE

STOP
SCREW

CLAMP
SCREW

CHOKE
CONTROL
CABLE

TO ADJUST CHOKE CONTROL

(See Figs. 33 and 34)

The choke control has been preset at the factory and
adjustment should not be necessary, check adjustment as
described below before loosening cable. If adjustment is
necessary, proceed as follows;

» With engine not running, move choke control (located

on dash panel) to full choke {¡\|) position.

- Remove air cleaner cover, filter and cartridge plate to

expose carburetor choke (See "AIR FILTER” in the
Customer Responsibilities section of this manual),

» Choke should be closed. If it is not, loosen casing

clamp screw and move choke cable until choke is
completely closed. Tighten casing clamp screw se
curely.

» Reassemble air cleaner.

FIG. 33
