REPAIR PARTS

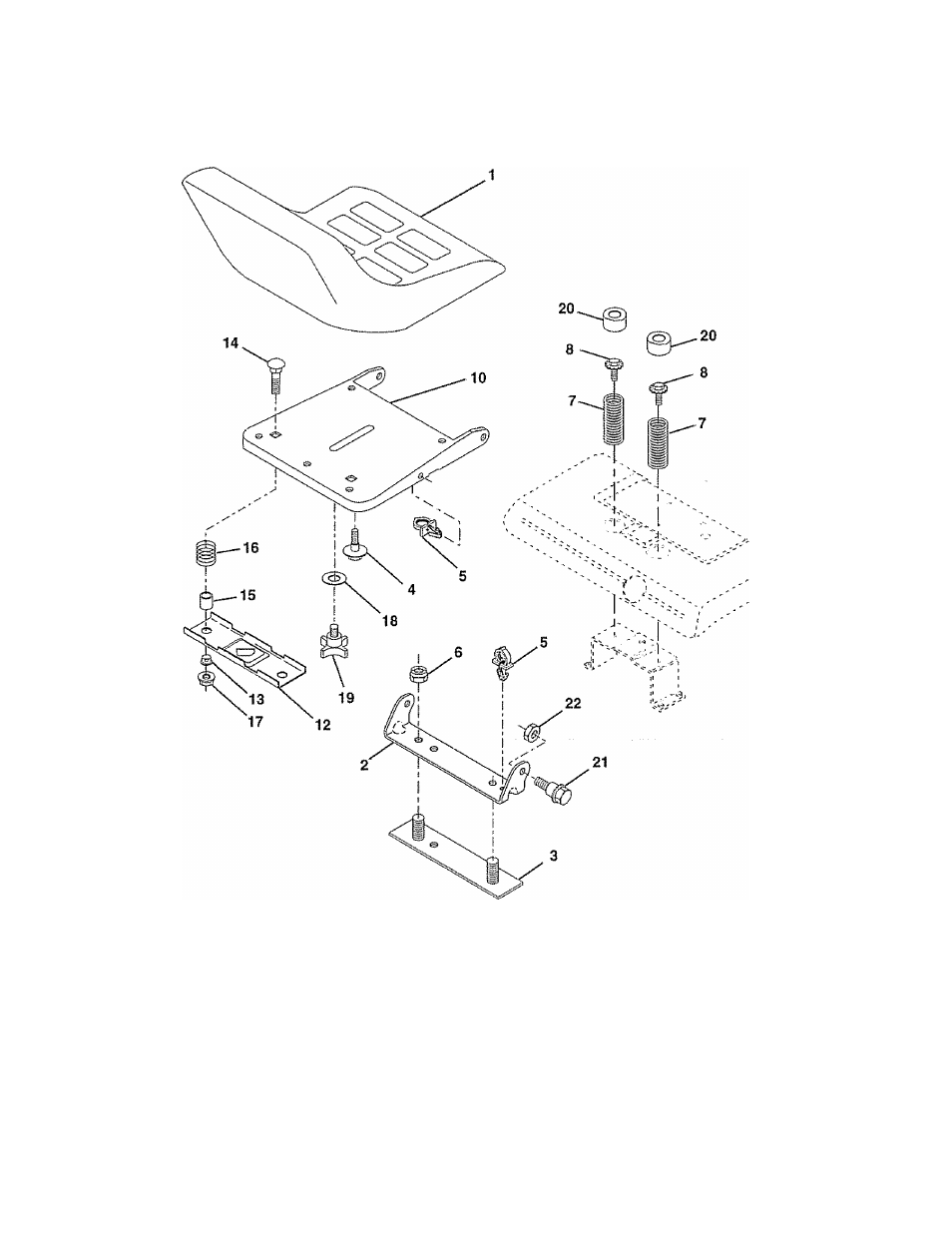

SEAT ASSEMBLY
TRACTOR - - MODEL NUMBER 917.251551
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 140124 Seat 14 72050411 Bolt, Carriage 1/4-20X1-3/8
2 140551 Bracket, Pivot Seat 15 121249X Spacer, Split
3 140675 Strap, Fender 16 123740X Spring, Cprsn
4 127018X Bolt, Shoulder 5/16-18 x .62 17 123976X Nut. Lock 1/4 Lge Fig Gr. 5
5 145006 Clip, Push In, Hinged 18 19171912 Washer 17/32 x 1 -3/16x12 Ga,
6 STD541437 Nut, Crownlock 3/8-16 Unc 19 120068X Knob, Seat 1/2-13 Unc
7 124181X Spring, Seat Cprsn 20 124238X Cap, Spring Seat
8 150176 Bolt 5/16-18 Unc X 3/4 w/Sems 21 153236 Bolt, Shoulder 5/16-18
10 140552 Pan, Seat 22 STD541431 Nut, Crownlock 5/16-18 Unc
12 121246X Bracket, Mounting Switch
13 121248X Bushing, Snap NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
