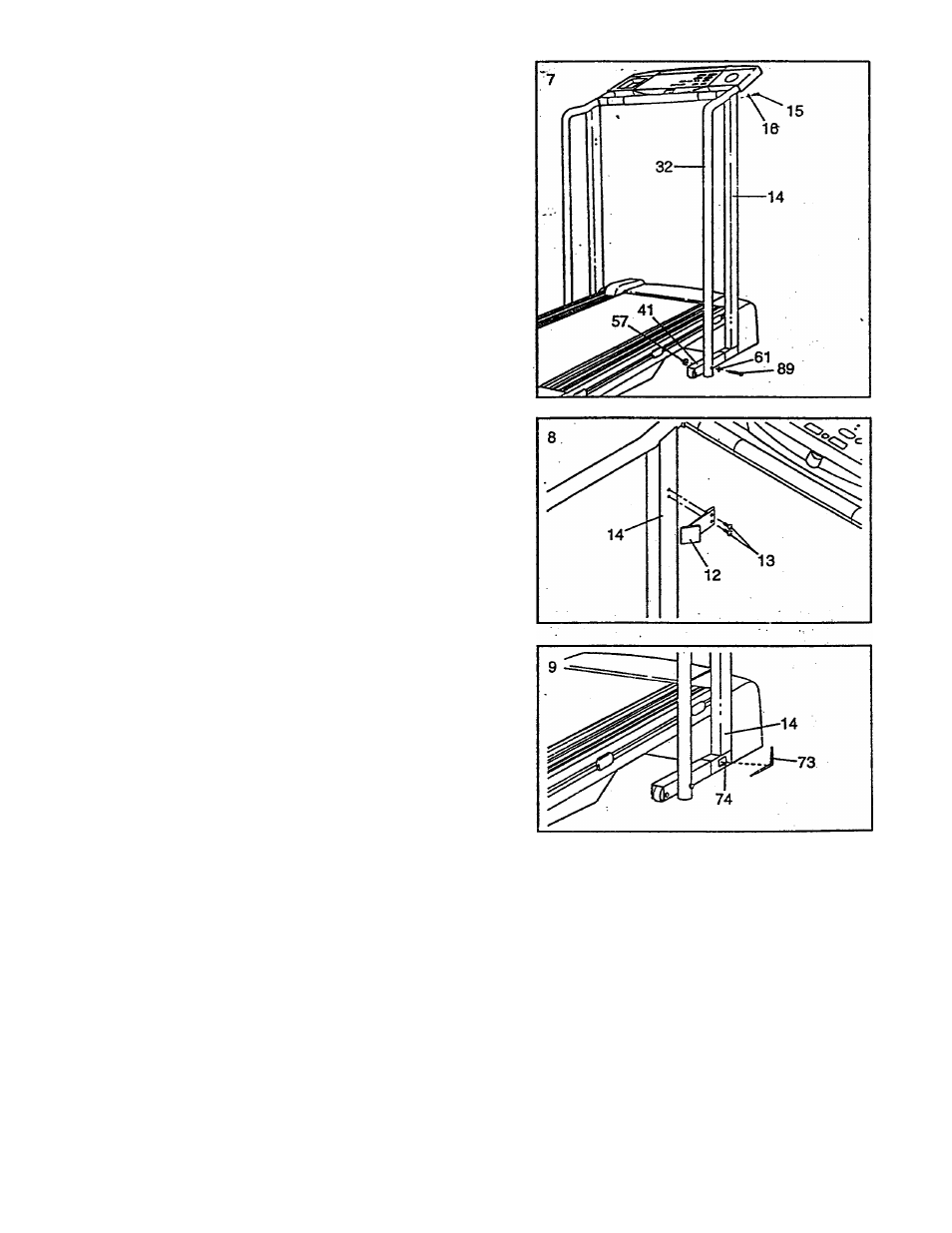

7- Thread a Handrail Bolt (15) with a Handrail Washer (16) -
into thé right Upright (14) and the Right Handrail (32). Do
not tighten the Handrail Bolt yet.
Attach the lower end of the Right Handrail (32) to the
Extension Leg (41) with a 31/2" Handrail Bolt (89), a 3/8*
Washer (61), and a Flange Nut (57).
.
.*
- . -,
TigHteri all jjartaused In this step and in step 2.
8
. Attach the Storage Latch (12) to the left Upright (14) with
two 1/2” Screws (13). Be careful not to overtighten the
Screws.
9. Remove the backing from the Adhesive Clip (74). Press
the Adhesive Clip onto the base of the Uprights (14) in
the indicated location. Press the Allen Wrench (73) into
the Adhesive Clip.
10. Make sure that all parts are tightened before you use the treadmill. To protect thè floor or carpet,
place a mat under the treadmill.
