Sears 917.25559 - Manual (Page 43)

REPAIR PARTS
12,5 HP 38'* RIDING LAWN TRACTOR »» MODEL NUMBER 917.255590

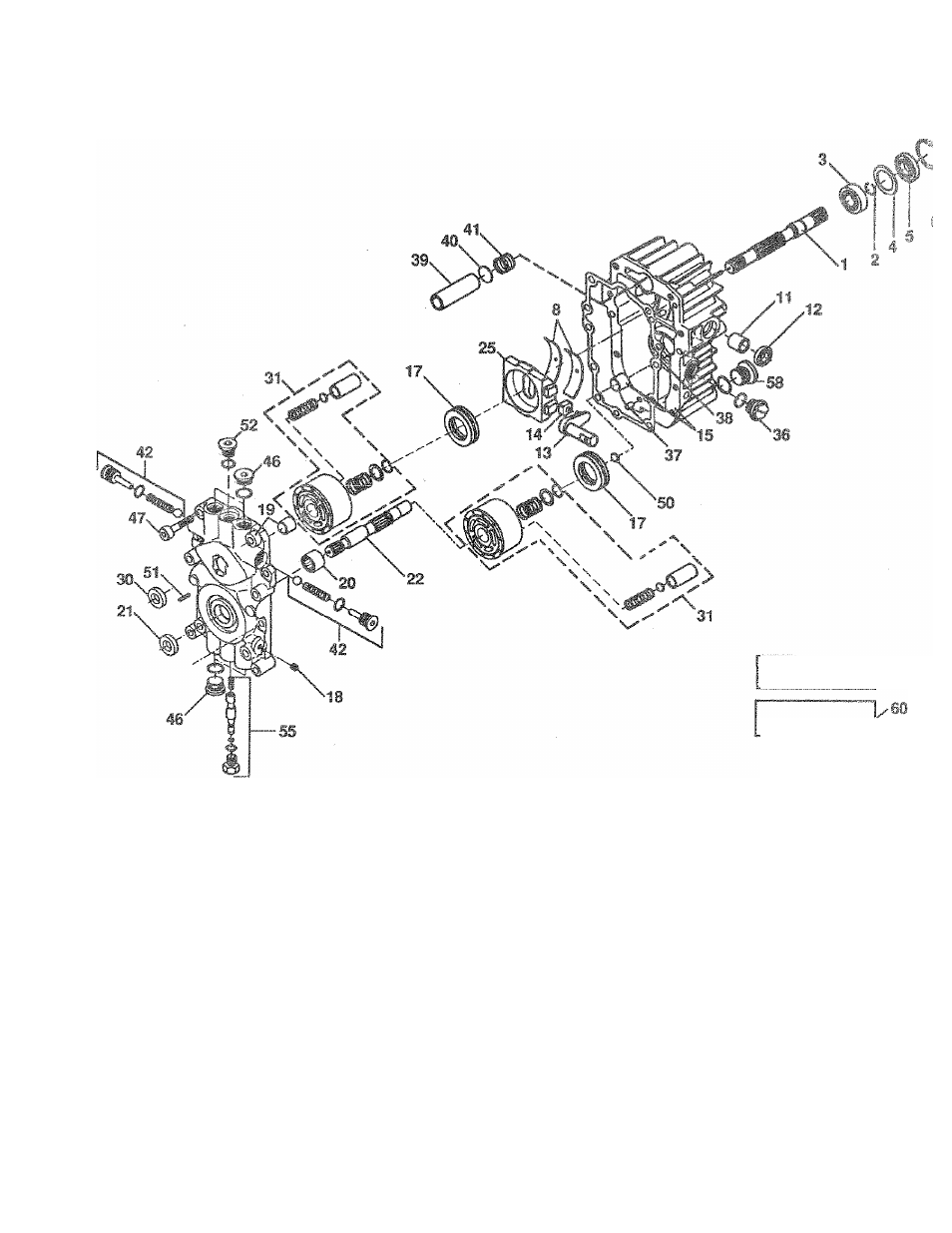

SUNSTRAND PUMP ASSEMBLY» MODEL NUMBER BDU-10S ■
OVÍRH A U L i / 5 9
SEAL KiT
COM PLETE
PUMP ASSEMBLY
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 122756X Shaft, Pump 31 127149X
2 122716X * Ring, Retaining 36 127151X
3 122745X Bearing, Ball 37 122786X
4 122715X * Spacer 38 122718X
5 122700X * Seal, Up 39 12273IX
6 122699X *Ring, Reiairting 40 122730X
8 122767X Bearing, Cradle 41 122728X
11 122747X Bearing, Journal 42 127152X
12 122717X *Seai, Lip 46 122787X
13 122748X Arm, Trunnion 47 122752X
14 122749X Guide, Slot 50 122788X
15 127146X Housing Kit, Transmission 51 122789X
17 122770X Bearing, Thrust, Ball 52 122754X
18 122771X Plug, Pipe 55 127153X
19 127147X Center Section Kit 58 122790X
20 122773X Bearinp, Needle 59 127154X
21 122722X * Seal, Lip
22 122750X Shaft, Motor
25 127148X Swashplate, Variable
30 122723X *Seal, Lip 6012143fJX
DESCRIFTiON
Block Kit, Cylinder
Plug, Plastic
Pin, Stainless, Headless
* Gasket, Center Section
Filter
Washer, Thrust
Spring, Helical, Compression
Check Valve Kit
Plug, Stainless, Threaded
Screw, Socket Head, Cap
Washer, Thrust
Pin, Spiral
Plug, Stainless, Threaded
Bypass Valve Kit
Plug, Stainless, Threaded
Overhaul Seal Kit. BDU-10
includes: Items marked with an
asterisk (*); 0-Rings for Check
Valves and Bypass Valve
Pump Assembly, CompieSe
