Sears 917.25559 - Manual (Page 29)

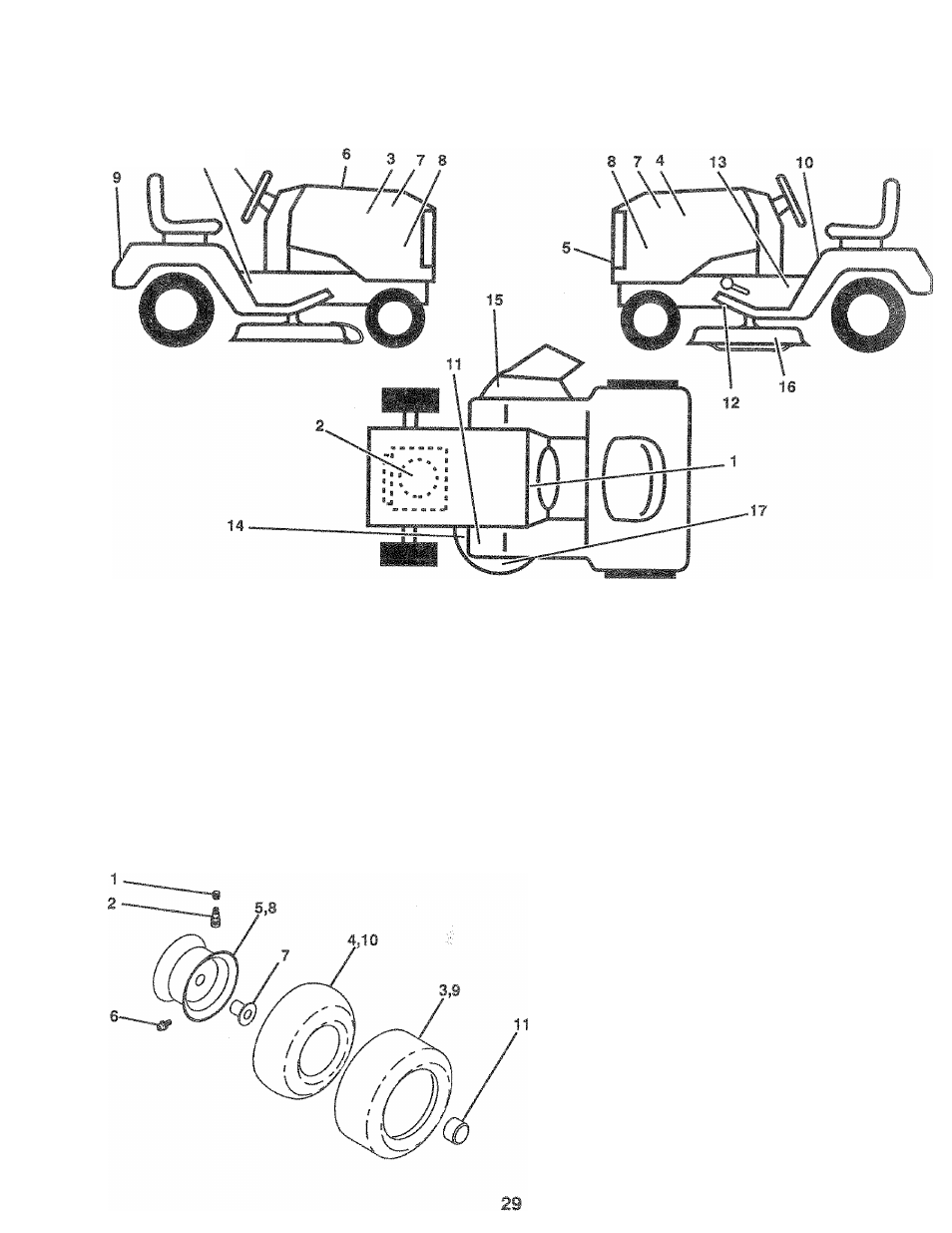

REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.255590
DECALS
13 18
KEY PART KEY PART
NO, MO. DESCRfPTiON NO. NO.
1 108456X Decal instruction Operat Eng 10 106974X
2 127908 Decal Eng 12 5hp ic Gold Craft 11 4900J
3 124489X Decal Hood Slope Rh Craftsrnan 12 121215X
4 124490X Decal Hood Slope Lh Craftsman 13 120166X
5 132674 Decal Grille Lt4000 Craft Usa 14 130929
6 133644 Decal Maint Customer Sears Dorn 15 121343X
7 128235 Decal Panel Side !/c Goid/bik 16 3713J
8 10863IX Decal ¡¡{die Cut) 17 133179
9 125880X Decal Fender Craftsman Red 18 132267
19 133216
DESCRIPTION
Decal Caution English
Decal Clutch/brake English
Decal V-belt Sch Tractor Eng
Decal Chassis 38" Hydro
Decal Mower Drive Schematic 38
Decal Danger English
Decal Rota Blades English
Decal Mower Qc System
Decal Insr Wh Strg Crafts Usa
Manual Owners 255590 Eng
WHEELS AND TIRES
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
59192
65139
106222X
59904
106732X361
278H
9040H
106108X361
3588R
7152J
104757X
DESCRIPTION
Cap Value Tire
Stem Value
Tire FTs 1 5 X 6 0 - 6 Service
Tube Front (Service Item Only)
Rim Asm 6"front Silver Service
Fitting Grease (Front Wheel Only)
Bearing Flange (Front Wheel Only)
Rim Asm 8"rear Silver Service
Tire R Ts 18x8 5-8 S Service
Tube Rear (Service Item Only)
Cap Axle BIk 1 50 X 1 00
NOTE; All component dimensions given in U.S.
1 inch = 25.4 mm
ches
