HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.255590

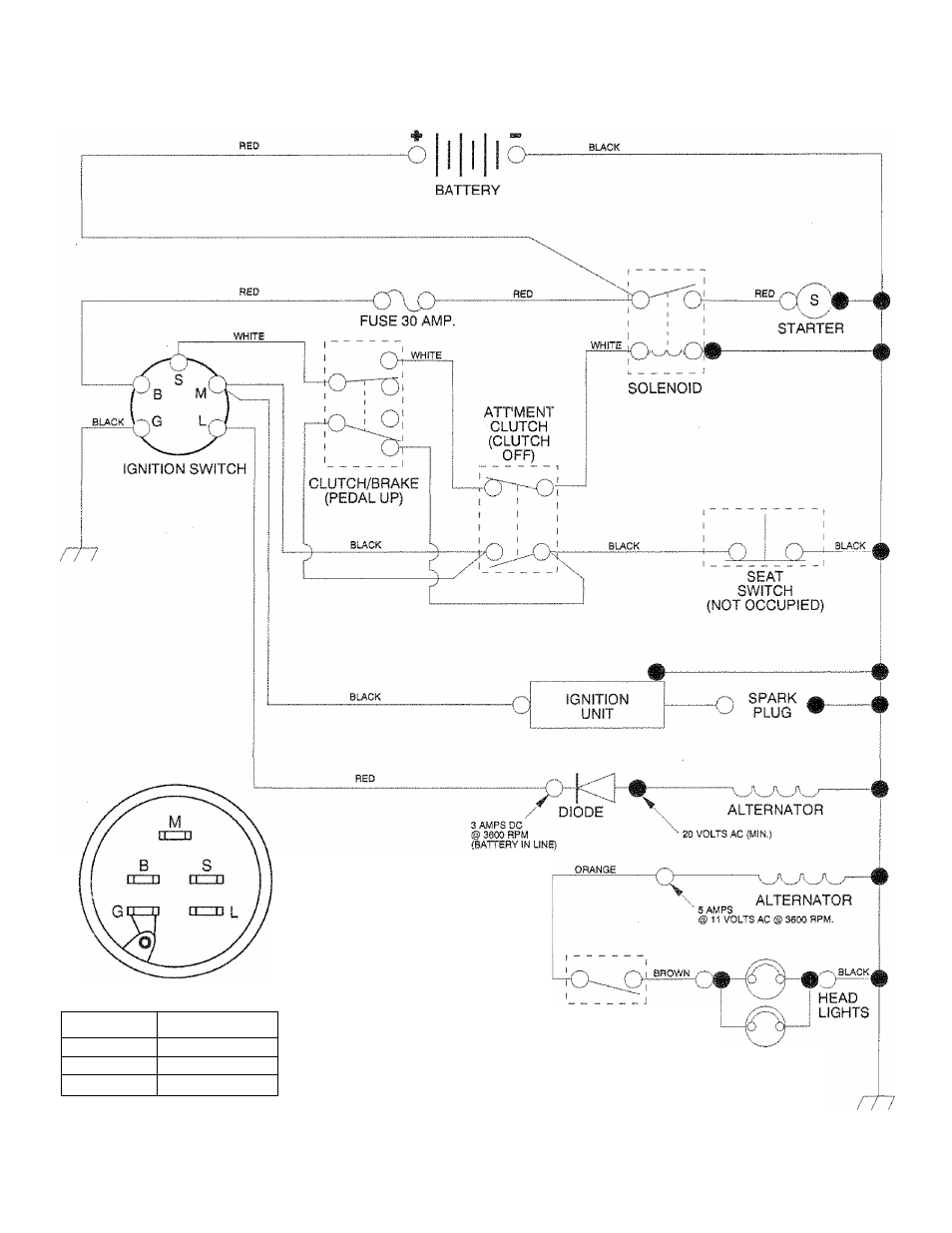

SCHEMATIC

IGNITION SWITCH

POSITION

CIRCUIT

OFF

M + G

B + L

START

B + S

NOTE

YOUR TRACTOR IS EQUIPPED

WITH A SPECIAL ALTERNATOR

SYSTEM. THE LIGHTS ARE NOT

CONNECTED TO THE BATTERY,

BUT HAVE THEIR OWN
ELECTRICAL SOURCE.
BECAUSE OF THIS, THE BRIGHT
NESS OF THE LIGHTS WILL

CHANGE WITH ENGINE SPEED.

AT IDLE THE LIGHTS WILL DIM.
AS THE ENGINE IS SPEEDED UP,
THE LIGHTS WILL BECOME
THEIR BRIGHTEST.

HEADLIGHT

SWITCH

(OFF)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE; If wiring insulated clips were re
moved for servicing of unit, they should
be replaced to properly secure your wiring.
