SERVICE AND ADJUSTMENTS

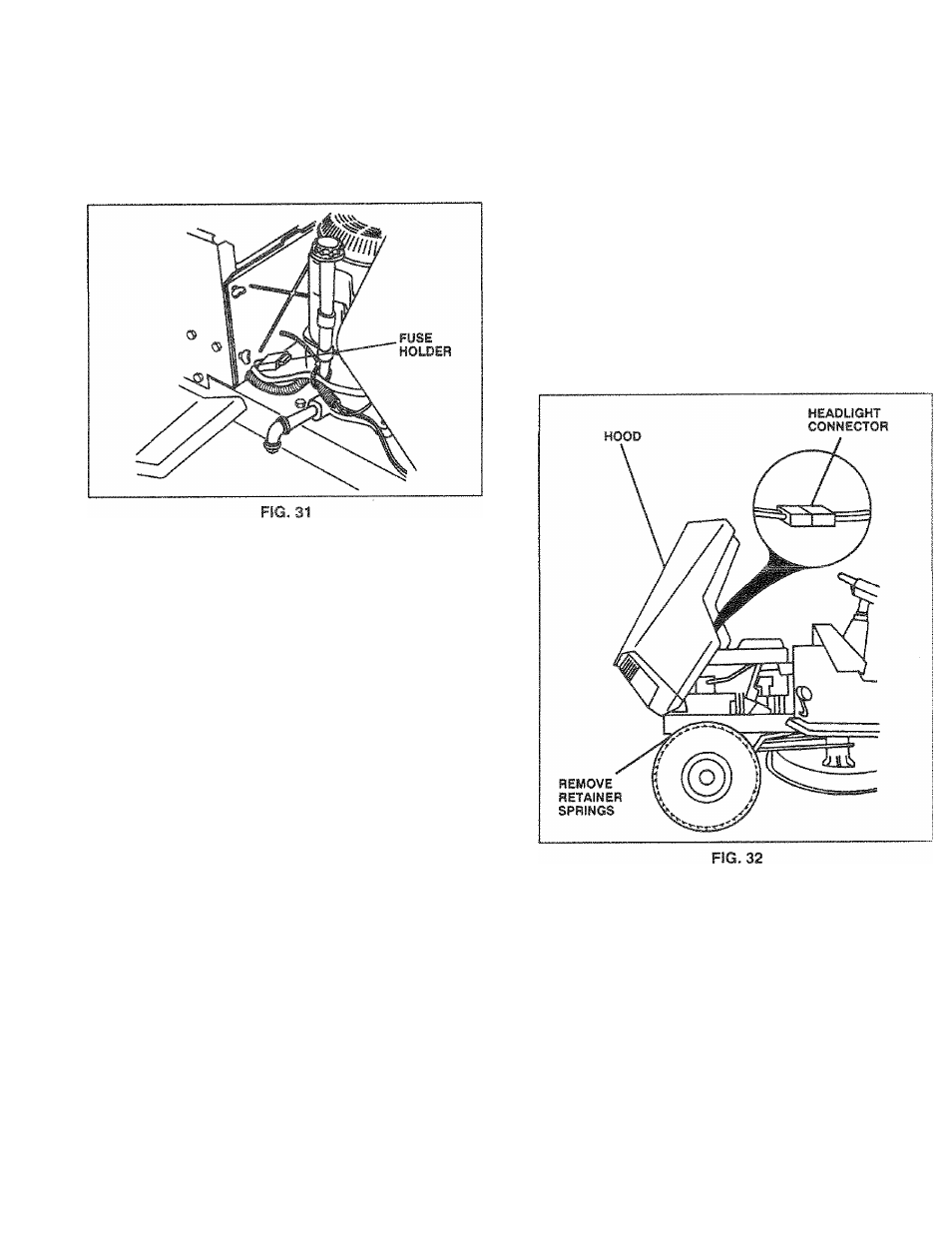

TO REPLACE FUSE {See Fig. 31)
Replace with 30 amp automotive-type plug-in fuse. The
fuse hoider is located in the engine compartment, directly
in front of the dash.
TO REPLACE HEADLIGHT BULB
•
Raise hood.
•
Pul! bulb holder out of the hole in the backside of the
grill.
" Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.
« Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running or prevent it from starting.
» Check wiring. See electrical wiring diagram in Repair
Parts section of this manual.
TO REMOVE HOOD AND GRILL (See Fig. 32)
A
CAUTION: Muffler is hot. Ss careful
when removing retainer springs from
hood pivot brackets.
Raise hood.
Unsnap headlight wire connector.
Remove retainer springs from hood pivot brackets.
Stand in front of tractor. Grasp hood at sides, tilt
forward and lift off of tractor.
To reinstall, slide hood pivot brackets into slots in
frame. Replace retainer springs.
Reconnect headlight wire connector and close hood.
23
