Sears 917.25597 - Manual (Page 43)

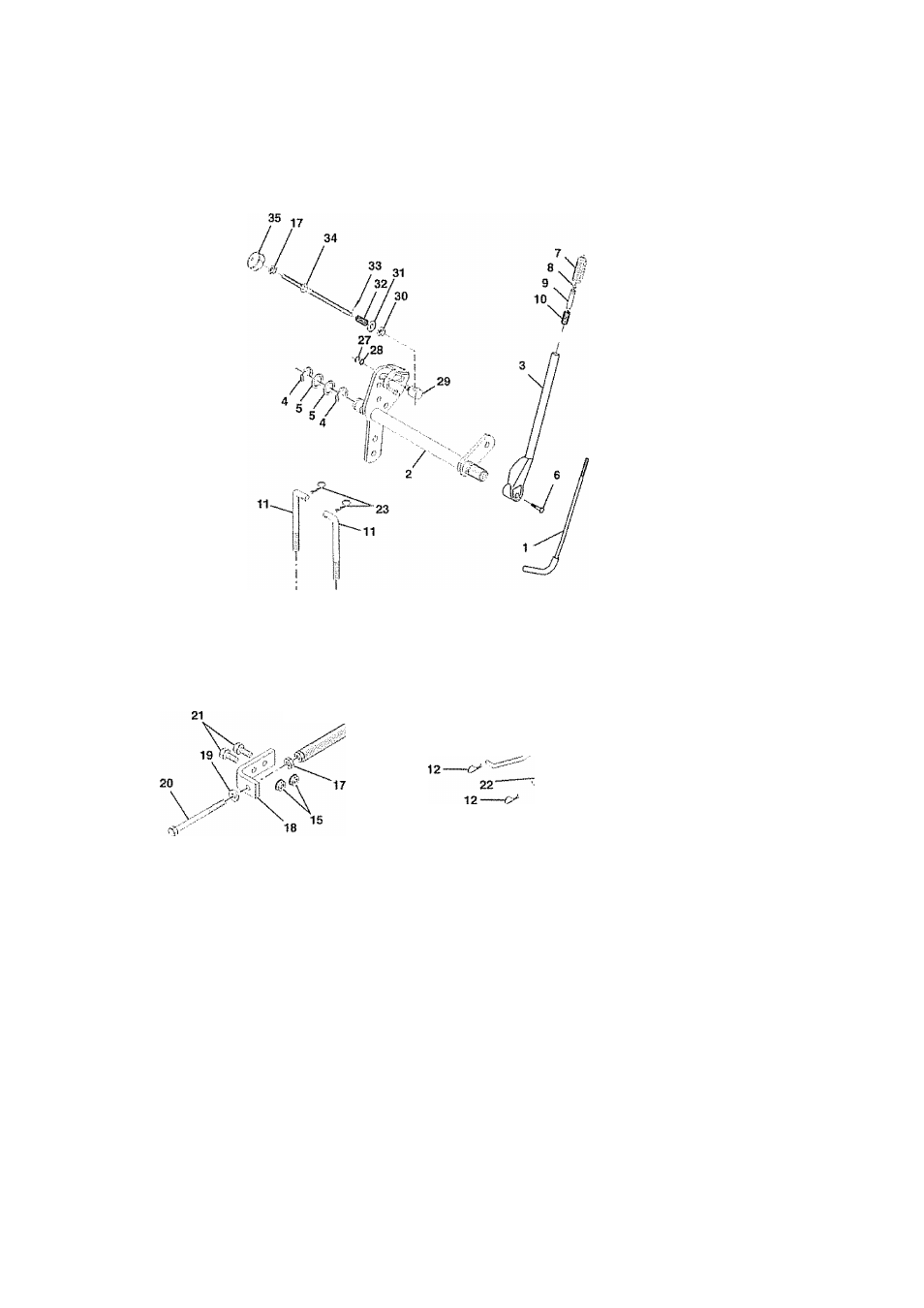

LIFT ASSEMBLY
REPAIR PARTS
18 HP 44" TRACTOR - MODEL NUMBER 917.255970
13.
23
j\ki ^'9/'
""^la
j M
'■ .. / Æ'i
14 y'~f'
15''^ ^
'16 /12 12
// 25 \
*^^24 \\ \„
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 121006X Rod Asm., Lever 19 19131316 Washer 13/32 x 13/16 x 16 Ga.
2 137295 Shaft Asm , Lift Vgt 20 5328J Bolt, Adjust Spring Assist
3 121002X Lever Asm,, Lift Rh 21 74760616 Bolt, Fin Hex 3/8-16 x 1
4 12000022 E-Ring Truarc #5133-87 22 127218 Link, Front
5 19292016 Washer 29/32 x 1-1/4 x 16 Ga. 23 4939M Retainer, Spring
6 74780624 Boit, Fin Hex 3/8-16 x 1-1/2 24 73350800 Nut, Jam Hex 1/2-13 Unc
7 125631X Grip, Handle Fluted 25 130171 Trunnion
8 122365X Button, Plunger 26 73800800 Nut, Lock W/Wsh 1/2-13 Unc
9 122364X Plunger, Lever Lift 27 12000037 Ring, Klip #T5304-37
10 2876H Spring 2-1/8" 28 19151216 Washer 15/32 x 3/4 x 16 Ga.
11 138020 Link Lift 29 11081OX Trunnion. Dp Stop Dbl Thds Pit
12 3146R Retainer, Spring 30 110807X Nut, Special
13 138023 Arm, Suspension Vgt 31 19131016 Washer 13/32 x 5/8 x 16 Ga.
14 19131611 Washer 13/32 x 1 x 11 Ga., 32 137150 Spring, Compression Inf Hgt
15 73800600 Nut, Lock Hex W/Wsh 3/8-16 Une 33 76020308 Pin, Cotter 3/32 X 1/2
16 674A247 Spring Asm,., Assist Lift 34 137167 Rod, Adj Lift
17 73350600 Nut, Hex Jam 3/8-16 Une 35 138057 Knob, Inf 3/8-16 Unc
18 5329J Bracket, Spring Assist
NOTE: All component dimensions given in U.S., inches
1 inch = 25 .4 mm
43
