Sears 917.25597 - Manual (Page 42)

REPAIR
PARTS

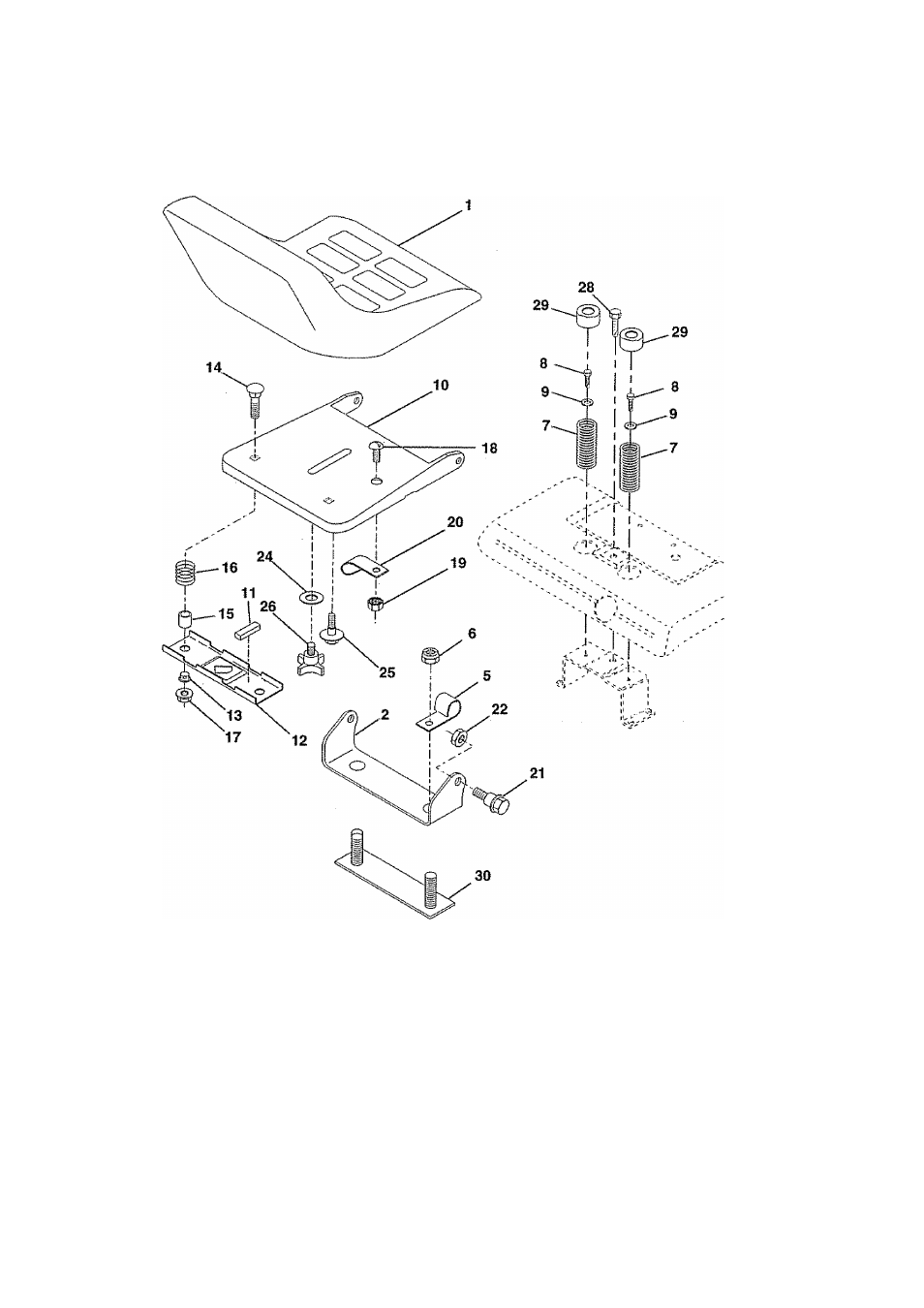

18 HP 44" TRACTOR - MODEL NUMBER 917.255970
SEAT ASSEMBLY .
0
KEY PART
NO. NO.
1 127438X
2 126656X
5 2751R
6 73680600
7 124181X
8 17490508
9 19131614
10 131451
11 121251X
12 121246X
13 121248X
14 72050411
15 134300
DESCRIPTION
Seat
Bracket, Pivot Seat
Clip, Line Fuel
Nut, Crownlock 3/8-16 Line
Spring, Seat Cprsn
Screw, Thdrol 5/16-18X1/2
Washer 13/32X 1 X 14 Ga.
Pan, Seat
Strip, Foam
Bracket, Mounting Switch
Bushing, Snap
Boit, Carriage 1/4-20 X 1-3/8
Spacer, Split
KEY PART
NO. NO.
16 121250X
17 123976X
18 74641008
19 73951000
20 4171R
21 105529X
22 73680500
24 19171912
25 127018X
26 120068X
28 17490608
29 124238X
30 105511X
DESCRIPTION
Spring, Cprsn
Nut, Lock 1/4 Lge Fig Gr, 5
Screw, Sftd Pan Hd #10-32 X 1/2
Nut, Keps #10-32 Unf
Clip. Insulated
Bolt, Shoulder 5/16-18 Unc
Nut, Crownlock 5/16-18 Unc
Washer 17/32 X 1-3/16 X 12 Ga,
Bolt, Shoulder 5/16-18X.62
Knob, Seat 1/2-13 Unc
Screw, Thdrol 3/8-16 x 1/2
Cap, Spring Seat
Strap, Fender
42
NOTE: All component dimensions given in U.S. inches
1 inch 5= 25.4 mm
