SERVICE AND ADJUSTMENTS

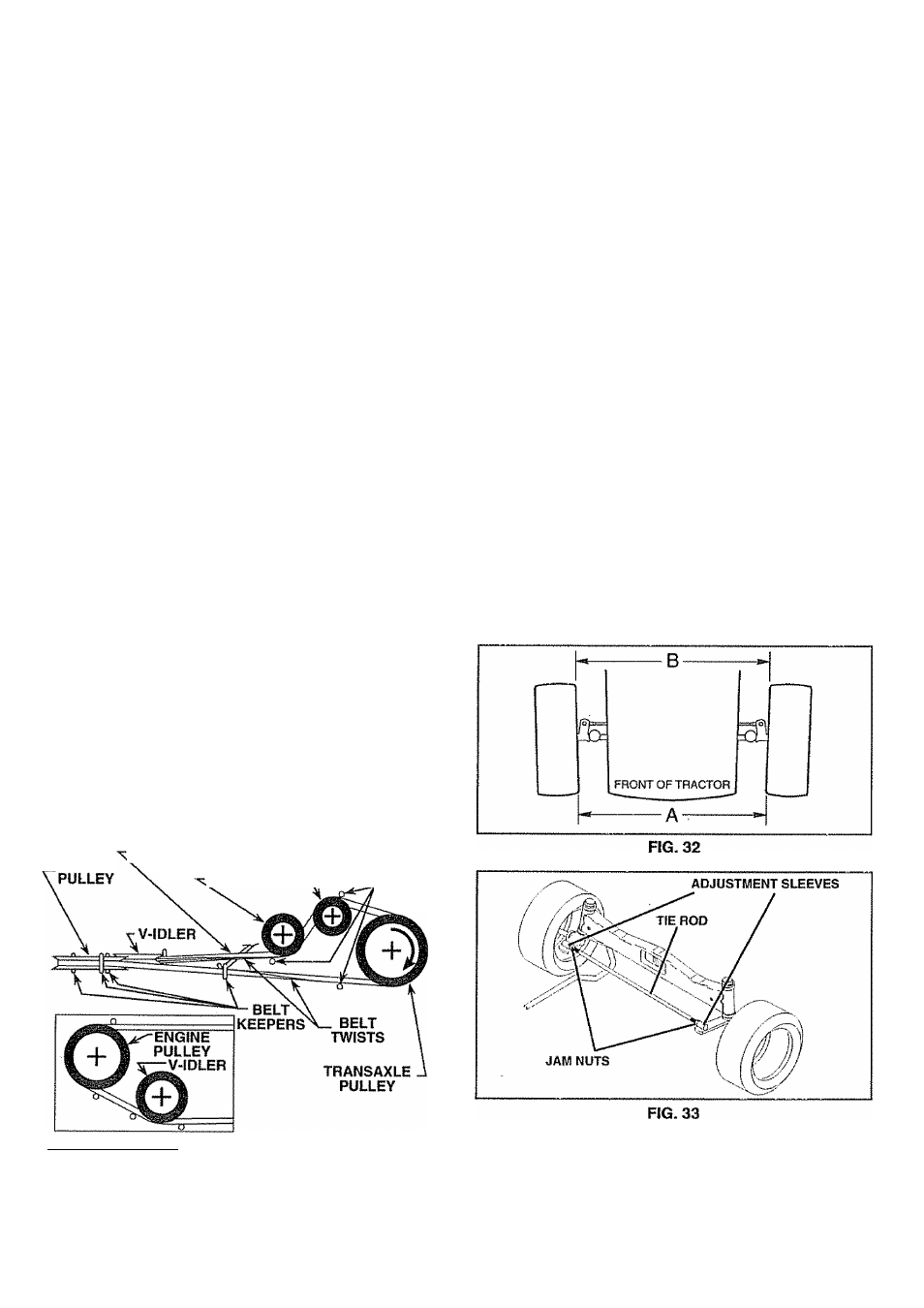

TO REPLACE MOTION DRIVE BELT
(See Fig. 31)
Park the tractor on tevei surface. Engage parking brake.
For ease of service there is a belt installation guide decal on
bottom of left footrest. It is not necessary to remove mower.
BELT REMOVAL -
Raise hood and disconnect BLACK (grounding) bat­
tery cable.
Set parking brake (to get belt slack).
Remove mower drive belt from electric clutch pulley
only (See "TO REPLACE MOWER DRIVE BELT" in
this section of this manual).
Roll belt off transaxle pulley,
Roll belt off clutching idler pulleys, then off engine
pulley and front V-idler pulley.
Pull belt out of all beltkeepers.
BELT INSTALLATION -
Place V part of belt into grooves on engine pulley and
front V-idler, making sure to route belt inside of
beltkeepers.
Put belt coming from V-idler above midspan beltkeeper,
then onto clutching idler pulleys as shown.
Make sure “V” part of belt engages "V" idler.
Place belt around transaxle pulley, beginning at top.
“V” part of belt should engage transaxle pulley.
Place long lower section of belt through loop in midspan
beltkeeper.
Checkto be sure belt is on proper side of all beltkeepers.
Release parking brake,,
IMPORTANT: CHECK BRAKE ADJUSTMENT.
ENOINE
ABOVE
.KEEPER
CLUCHING
Y V - IDLER
CLUCHING \
^FLAT IDLER \
BELT
KEEPER
AS VIEWED FROM BOTTOM
TRACTOR V-BELT DRIVE SCHEMATIC
VIEW FROM LEFT SIDE OF TRACTOR
TO ADJUST STEERING WHEEL ALIGNMENT
If steering wheel crossbars are not horizontal (left to right)
when wheels are positioned straightforward, remove steer­
ing wheel and reassemble per instructions in the Assembly
section of this manual.
FRONT WHEEL TOE-IN ADJUSTMENT
Front wheel toe-in Is required for proper steering operation.
Toe-in was set at the factory and adjustment should not be
necessary If parts in the front axle or steering mechanism
have been replaced or damaged, check to-in and adjust if
necessary. '
TO CHECK TOE-IN (See Fig. 32) -
• Position front wheels straight ahead.
» Measure distance between wheels at front and rear of
tires (dimensions “A” and “B").
» Front dimension “A” should be 1/8" to 1/4" less than
rear dimension “B”„
TO ADJUST TOE-IN (See Figs. 32 and 33) -
• Loosen jam nuts at adjustment sleeves on tie rod.
" Adjust tie rod until dimension “A" is 1 /8" to 1/4" less than
dimension "B”.
» Tighten jam nuts securely.
FRONT WHEEL CAMBER
The front wheel camber is not adjustable on your tractor. If
damage has occurred to affect the front wheel camber,
contact your nearest authorized service center.
