SERVICE AND ADJUSTMENTS
A
CmimU:
BEFORE PERFORMING ANY SiRVICE OR ADJUSTMENTS:
•
Depress clutch/bralce pedal fully and set parking brake.
•
Place motion control' le¥er ¡n neutral (N| positlo-rt.
•
Place attachment clutch fn "DISENGASED'“ position,.
•
Tyrn 'Ignition key “OFF" and remove- key.
•
Mate syr# the blades and all moving parts have co-mplstely st-opped.
•
Disconnect spark plug wire from spark plug and place wire where It cannot eome in contact with
piyg,
...
.
TRACTOR

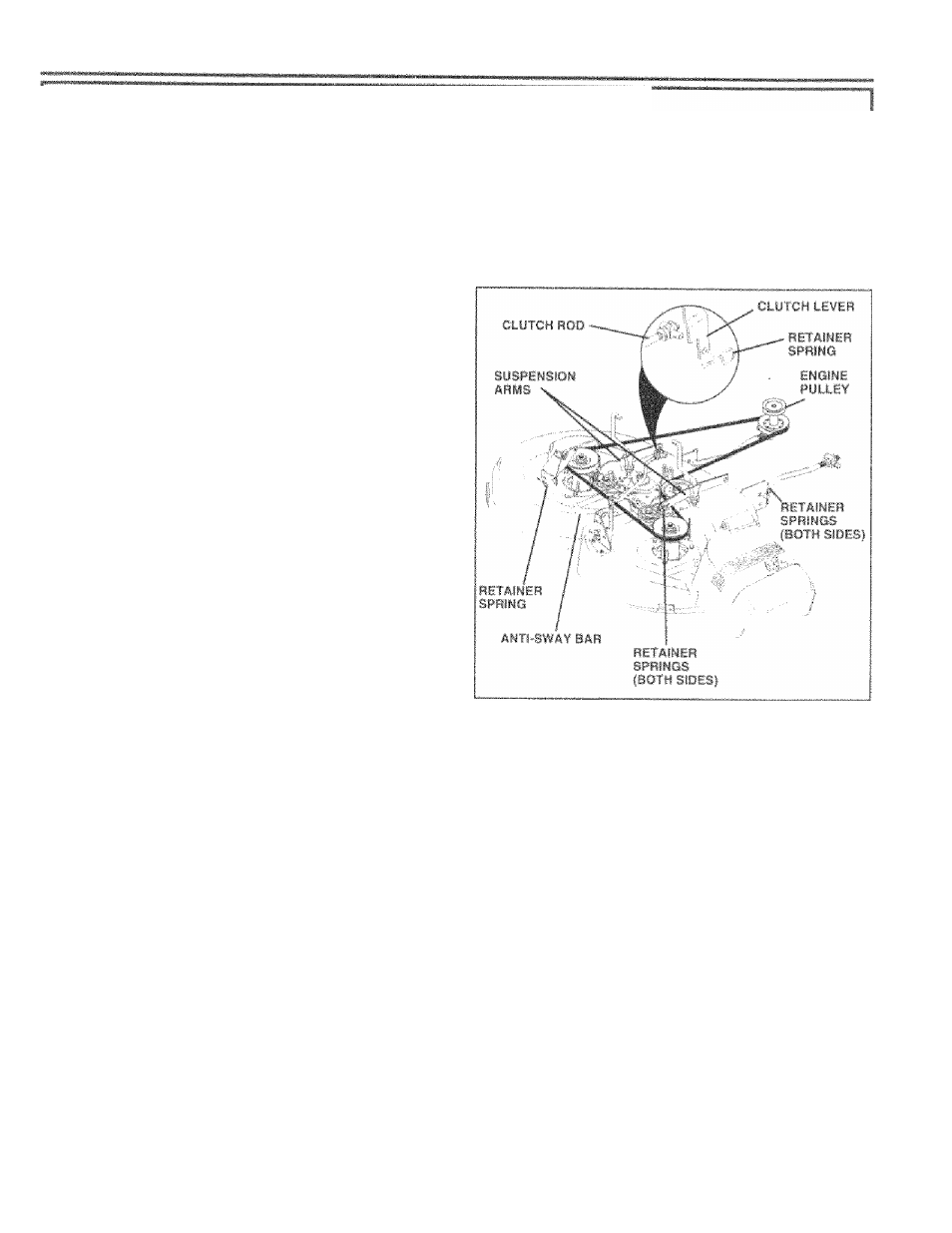

TO REMOVE MOWER (See Fig. 1i)
Mower will be easier to remove
from the
right side-
of
tractor..
Place attachment, clutch in "DISENGAGED”' position.
Move attachment lilt ieve-r forward to l-o'wer mower to its
lowest position.
Roil belt off engine pull-ey.
Disconnect clutch rod from clutch lever
by
remo'virig
retairier sprin-g.
Disconnect anti'-sway bar from chassis bracket by
removing retai'ner spring.
Disconnect suspension arms from rear deck brackets
by removing retainer springs,
Disconneet front links fro-m. deck by removinq retainer
springs,
^
Raise lift lever to raise suspension arms. Slide mower
out from under tractor.
IMPORTANT'! IF AN A'TTACHM'ENT OTHER THAN THE
M'OWER: IS TO BE MOUNTED TO THE TRACTOR., THE
R.H, AND L.H, SUSPENSION ARMS PU-ST BE REM.OVED
FROM TR'ACTOR.
TO INSTALL MOWER (See Fig. 18)
•
Raise attachment lift lever to its highest, position.
•
Slide rnower under tracto-r with
discharge
guard to right
side of tractO'f.
' '
'
•
Lower lift lever to 'its low'est
pQ'Sitioii,
•
inst-afi mow'er irr reverse order o-f 'rem-ovaf instructions.
FIG. 19
18
