ASSEMBLY

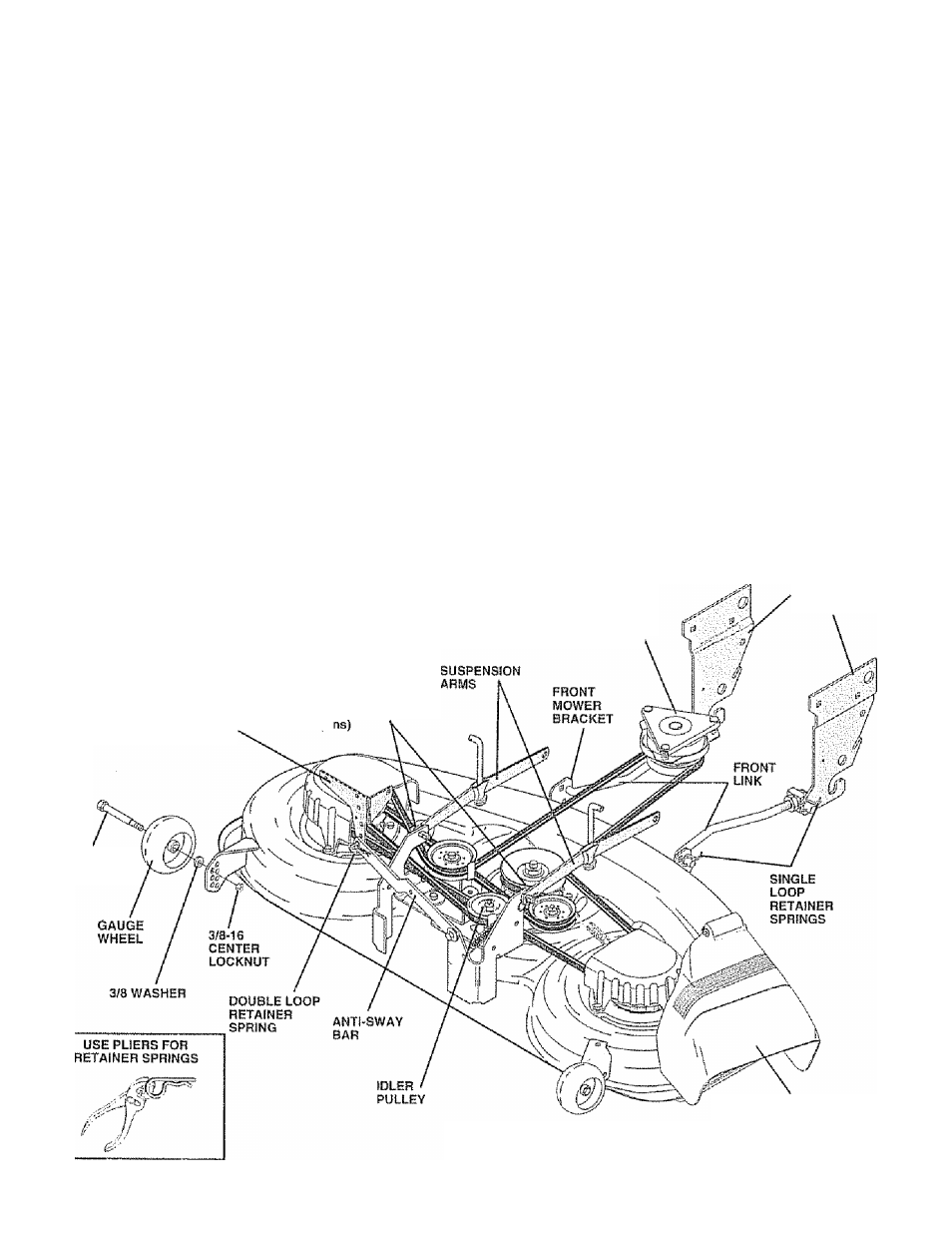

INSTALL MOWER AND DRIVE BELT (See
Figs. 4 and 7)
Be sure tractor is on level surface and mower suspension
arms are raised with attachment lift control.. Engage park
ing brake.
•
Cut and remove ties securing anthsway bar and belts.
Swing anti-sway bar to left side of mower deck
* Slide mower under tractor with discharge guard to right
side of tractor,
IMPORTANT:
CHECK BELT FOR PROPER ROUTING IN
ALL MOWER PULLEY GROOVES. INSTALL BELT INTO
electric
clutch
pulley
GROOVE.
» Install one front link in top hole of the R.H, front mower
bracket and R.H. front suspension bracket. Retainwith
two single loop retainer springs as shown.
* Install second front link in L.H. front suspension bracket
only and retain with single loop retainer spring as
shown,
® Turn height adjustment knob counterc!ocl stops. » Lower mower linkage with attachment iift control, « Place the L.H, suspension arm on outward pointing deck pin. if necessary, rock and raise front of mower « Slide leftside of mower back and instail the unattached front link in top hole of the L,H front mower bracket Retain with single loop retainer spring as shown. » Place the R..H. suspension arm on outward pointing deck pin. If necessary, rock and raise front of mower to align deck pin with the hole in suspension arm. * Connect anti-sway bar to chassis bracket under left footrest and retain with double loop retainer spring. ” Turn height adjustment knob clockwise to remove slack from mower suspension. * Raise mower to highest position, ” Assemble gauge wheels (See “TO ADJUST GAUGE VyHEELS" In the Operation section of this manual), CHECK MOWER LEVELNESS For best cutting results, mower should be properly leveled. Adjustments section of this manual. CHECK FOR PROPER POSITION OF ALL See the figures that are shown for replacing motion, mower ELECTRIC FRONT CHASSIS DOUBLE L.OOP {outward pointing SHOULDER DISCHARGE GUARD RG.4
to align deck pin with the hole in suspension arm.
Retain with double loop retainer spring with loops down
as shown,
Retain with double loop retainer spring with loops down
as shown,
See “TO LEVEL MOVi/ER HOUSING” in the Service and
BELTS
drive, and mower blade drive belts in the Service and
Adjustments section of this manual. Verify that the belts
are routed correctly
CLUTCH
PULLEY X
SUSPENSION
BRACKETS
BRACKET
RETAINER SPRING
deck pi:
BOLT
