ASSEMBLY
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to insure proper tightness,
TOOLS REQUIRED FOR ASSEMBLY
standard A socket wrench set wiil make assembly easier,
wrench sizes are fisted,
(1} 9/16" wrench (1) 3/4" Socket w/drive rächet
(2) 7/16" wrenches Philiips Screwdriver
(2) 1/2" wrench
Tire pressure gauge
Utility knife
When right or left hand is mentioned in this manual, it
means when you are in the operating position (seated
behind the steering wheel).
TO REMOVE TRACTOR FROM CARTON
UNPACK CARTON
" Remove all accessible loose parts and parts cartons
from carton (See page 6).
® Cut, from top to bottom, along lines on ai! four corners
of carton, and lay panels fiat
« Remove mower and package materials,
® Check for any additional loose parts or cartons and
remove.
BEFORE ROLLING TRACTOR OFF SKID

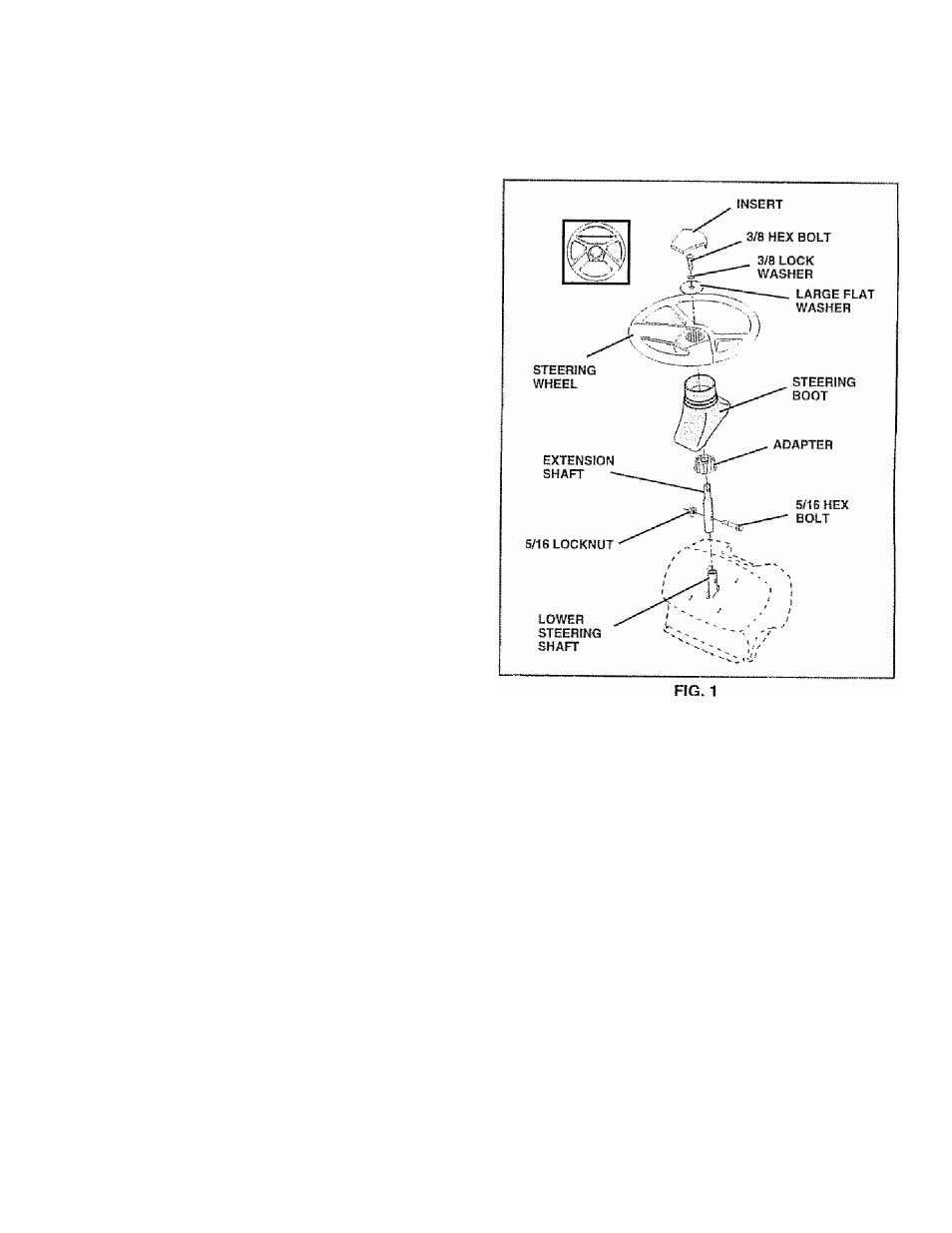

ATTACH STEERING WHEEL (See Fig. 1)
ASSEMBLE EXTENSION SHAFT AND BOOT
- Slide extension shaft onto lower steering shaft. Align
mounting holes in extension and lower shafts and
insta!! 5/16 hex boit and locknut. Tighten securely.
IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO
18-22 FT, LBS TORQUE.
» Piece tabs of steering boot over tab slots in dash and
push down to secure.
INSTALL STEERING WHEEL
* Position front wheels of the tractor so they are pointing
straight forward.
» Slide steering wheel adapter onto steering shaft exten­
sion.
® Position steering wheel and sleeve assembly so cross
bars are horizontal (left to right) and slide onto adapter,
' Assemble large flat washer, 3/8 lock washer, 3/8 hex
bolt and tighten securely.
Snap steering wheel insert
wheel. into center of steering
" Remove protective plastic from tractor hood and grill.
IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERETRACTOR
IS TO ROLL OFF SKID.
TO ROLL TRACTOR OFF SKID {See Opera­
tion section for location and function of con­
trols)
«■ Press liftleverplungerand raise attachment lift leverto
its highest position.
® Release parking brake by depressing ciuich/brake
nOfiSil
p./ K"* V.J d * T
» Place freewheel control in freewheeling position to
disengage transmission (See ‘TO TRANSPORT” in
the Operation section of this manual)
» Roll tractor backwards off skid.
® Remove banding holding discharge guard up against
tractor.
