Sears 917.25667 - Manual (Page 40)

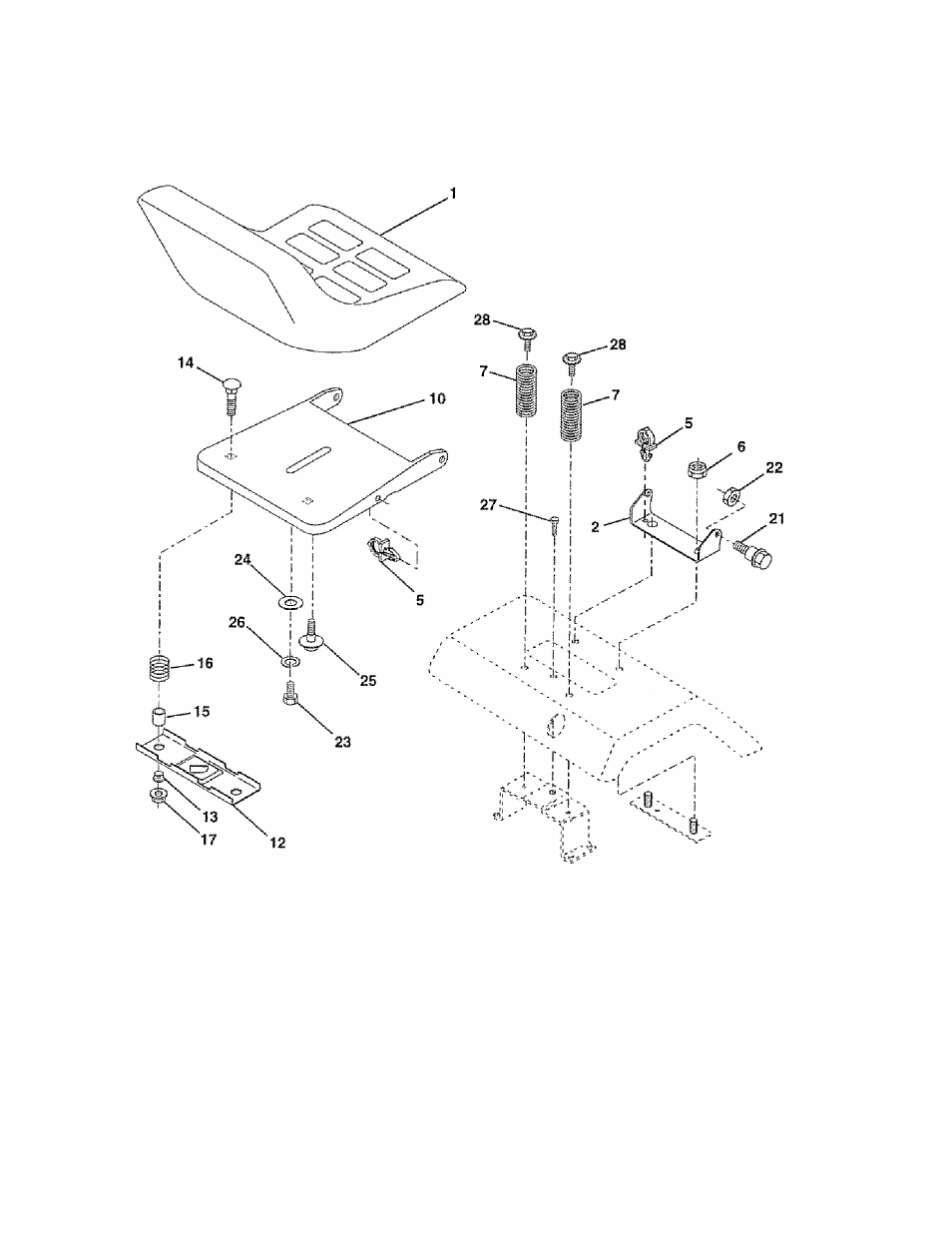

SEAT ASSEMBLY
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.256670
KEY PART
NO. NO.
1 140123
2 140551
5 145006
6 STD541437
7 124181X
to 140552
12 121246X
13 121248X
14 72050411
15 134300
16
ГЭСГГ^Ч/
1
(¿r P
DESCRIPHON
Seal
Bracket Pnt Pivot Seat {bik)
Clip Push-tn
Nut Lock Hex W/!ns 3/8 -16 UNC
Spring Seat Cprsn 2 250 Bik Zi
Pan Pnt Seat (bik)
Bracket Pnt Mounting Switch
Bushing Snap Bik Nyl 50 id
Bott Rdhd Sht Nk 1/4-20x1-3/8
Spacer Split 28 X 96 Zinc
Spring Cprsn 1 27 Bik Pnt
KEY PART
NO. NO.
17 123976X
21 153236
22
STD541431
23 74780814
24 19171912
25 127018X
26 STD551150
27
17490608
28 150176
DESCRIPTION
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16*18 Unc
Nut Lock Hex W/lns 5/16*18
Boft Rn Hex 1/2*13 X 7/8 Qr 5
Washer 17/32 X 1-3/16 X 12 Ga
Bott Shoulder 5/16-18 X 62
Washer Lock Hvy Hici Spr
1/2
Screw Thdrol. 3/8-16 x 1/2
Bolt 5/16 -18 UNC X 3/4 W/Sems
NOTE; All component dimensions given in U,S. inches
1 inch = 25,4 mm
40
