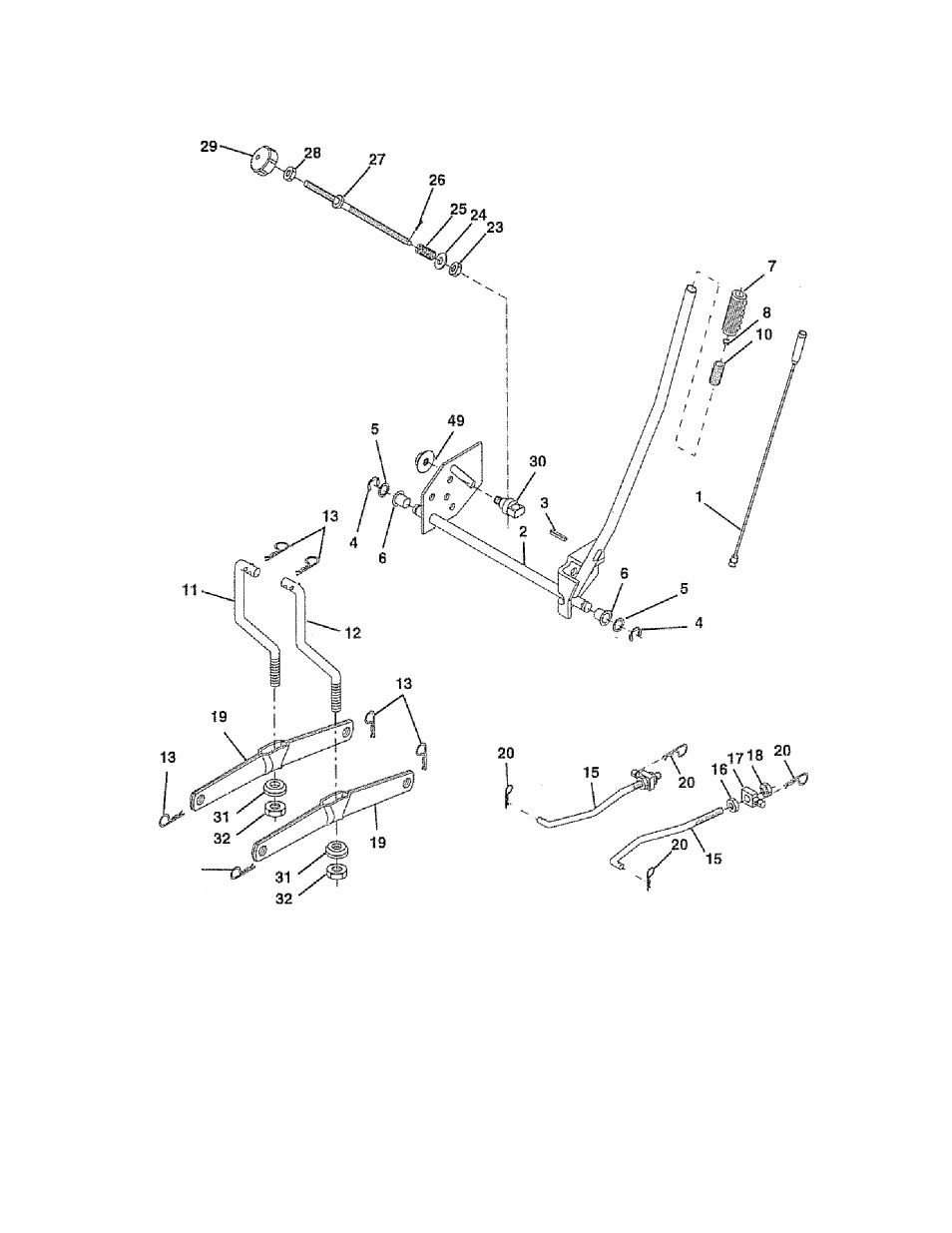

MOWER LIFT
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.256670
13-
KEY PART
NO. NO.
1
136973
2 145117
3 105767X
4
12000002
5 19211621
6
120183X
7 125631X
8
122365X
10
122512X
11
139865
12 139866
13 STD624008
15 127218
16 73350800
17 130171
18 73800800
DESCRIPTION
Wire Assy., inner, with Plunger
Shaft Asm, Lift
Pin Groove
ERing #5133-62
Washer 21/32 x 1 x 21 Ga,
Bearing Nylon
Grip Handle Fluted
Button Plunger Read
Spring Cprsn
Link Lift Lh Fixed Length
Link Lift Rh Fixed Length
Retainer Spring
Link Front
Nut Jam Hex 1/2-13 Unc
Trunnion Bik Zinc
Nut Lock W/Wsh 1/2-13 Unc
KEY
NO. PART
NO.
DESCRIPTION
19 139868 Arm Suspension Rear
20
STD6240Q8 Retainer Spring
23 110807X Nut Spring
24 19131016 Washer 13/32 x 5/8 x 16 Ga.
25 2876H Spring 2-1/8"
26 76020308 Pin cotter 3/32 X 1/2
27 126971X Rod Adj. Lift
28 73350600 NutHeXvJam 3/8-18
29 138057 Knob inf. 3/8-16
30 150233 Trunnion Inlln. Height
31 140302 Bearing, Pivot, Lift, Special
32 73540600 Nut, Crownlock 3/8-24
49 145212 Nut Flange Lock
43
NOTE: Al! component dimensions given in U,.S. Inchés
1 inch = 25.4 mm
