SERVICE AMD ADJUSTMENTS

A

CAUTION: BEFORE PERFORii^ING ANY SERVICE OR ADJUSTMENTS:
e Depress clutch/brake pedal fully and set parking brake.

0

Place motion control lever In neutral (N) position.

» Place attachment clutch in “OiSENGAQED" position.
® Turn ignition key “OFF” and remove key.
” Make sure the blades and all moving parts have completely stopped.
« Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

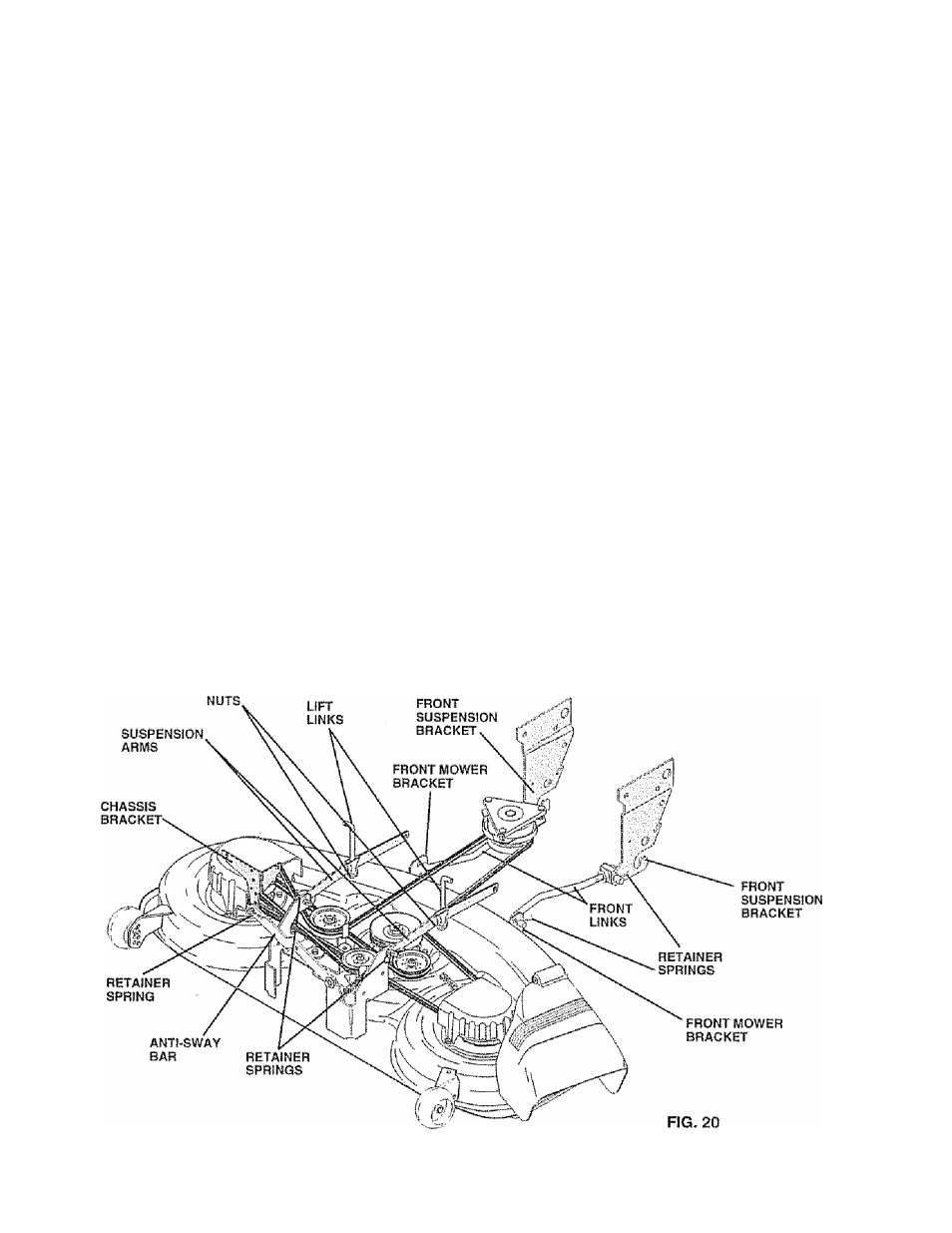

TO REMOVE MOWER (See Fig. 20)

Place aiiachment clutch in “DISENGAGED” position.

Turn height adjustment knob to lowest setting,

Lower mower to its lowest position.

Remove retainer spring holding anti-swaybarto chas­

sis bracket and disengage anti-swaybar from bracket.

Remove retainer springs from suspension arms at

deck and disengage arms from deck.

Raise attachment lift to its highest position.

Remove two retainer springs from each front link and
remove links.

Slide mower forward and remove belt from electric
clutch pulley.

Slide mower out from under right side of tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE
MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,
REMOVE THE FRONT LINKS.

TO INSTALL MOWER

Follow procedure described in "INSTALL MOWER AND
DRIVE BELT” in the Assembly section of this manual.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or
driveway Make sure tires are properly inflated (See
“PRODUCT SPECIFICATIONS" on page Sot this manual),

it tires are over or underinf iated, you will not properly adjust

your mower.
