RULES FOR SAFE OPERATIONS
Remember, any power equipment can cause injury if operated improperly or if the user does not unde "stand how to
operate the equipment.
A
LOOK FOR THIS SYMBOL TO POINT OUT
IMPORTANT SAFETY PRECAUTIONS. IT MEANS
- ATTENTION. BECOME ALERT, YOUR
SAFETY IS INVOLVED.
Exercise caution at all times, when using power equipment.
1. Read the tractor and dozer blade owners manuals and know how to operate your tractor, before using tractor with the
dozer blade attachment.
2. Never operate tractor and dozer blade without wearing proper clothing suited to weather conditions and operation of
controls.
3. Never allow children to operate tractor and dozer blade, and do not allow adults to operate without proper instructions.
4. Always begin with transmission in first (low) gear and gradually increase speed as required.

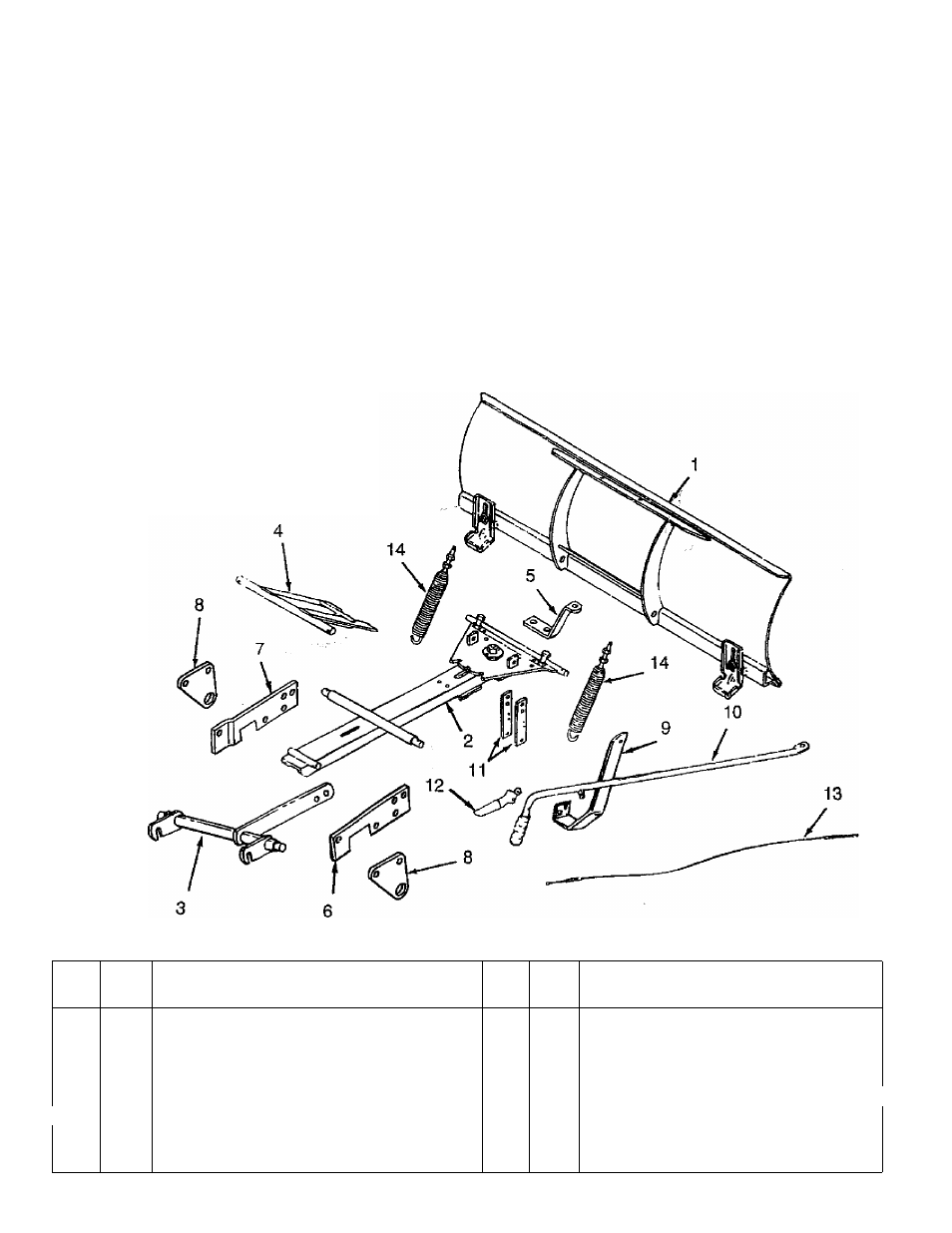

48" DOZER BLADE CARTON CONTENTS
(Also See Page 3)
While confirming parts count, we suggest
that you clear any paint from the 1/8" pin
holes in part reference numbers 2,3 and 4
to make assembly easier.
CARTON CONTENTS
REF.
NO.
QTY.
DESCRIPTION
REF.
NO.
QTY.
DESCRIPTION
1
(1)
Blade Assembly
8
(2)
Lift Pivot Plate
2
(1)
Channel/Pivot Plate Assembly
9
(1)
Support Bracket
3
(1)
Lift Assembly
10
(1)
Handle Assembly w/grip
4
(1)
Guide Bracket Assembly
11
(2)
Angle Lock Bars
5
(1)
Blade Pivot Bracket
12
(1)
Grip Assembly
6
(1)
Frame Bracket (RH)
13
(1)
Control Cable Assembly
7
(1)
Frame Bracket (LH)
14
(2)
Spring Assembly
0)
Parts Package (Shown on Page 3)
