Sears 917.372301 - Manual (Page 26)

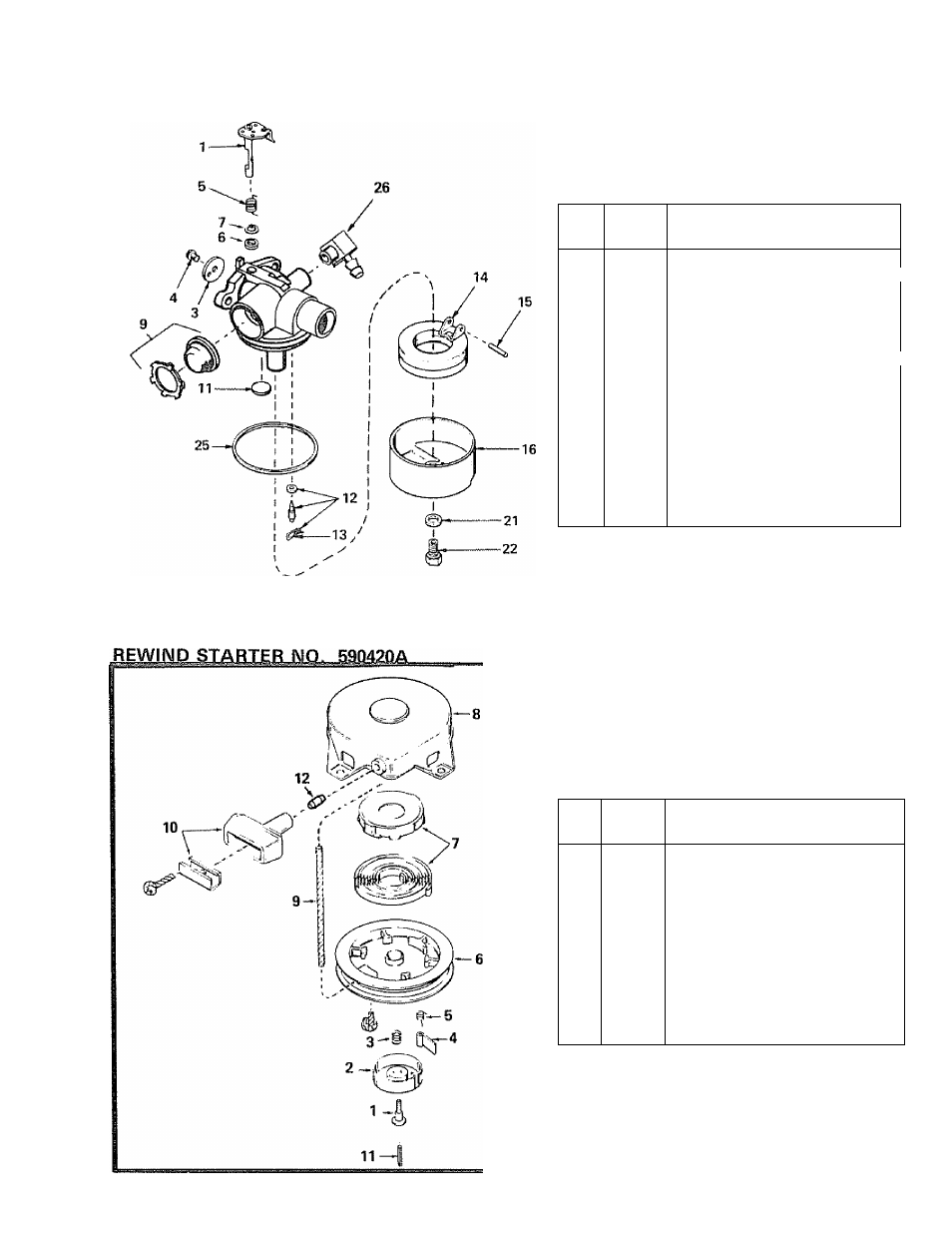

CARBURETOR NO. 632389
Ref.
No.
Part
No. Part Name
632389 Carburetor
1 631615 Shaft & Lever Assy., Throttle I
3 631616 Shutter, Throttle
4 650506 Screw, Throttle shutter
5 631767 Spring, Throttle return
6 631971 Seal, Dust
7 631184 Washer, Flat
9 632047 Primer Assy. I
11 631027 Plug, Welch
12 631021 Inlet Needle, Seat & Clip Assy.
(Incl. No. 13)
13 631022 Clip, Inlet needle
14 632019 Float, Carburetor
15 631024 Shaft, Float
16 631700 Sowl, Float
21 631334 Gasket, Bowl-to-body
22 631935 Nut, Float bowl
25 631028 Gasket, Bowl-to-body
26 631775 Fitting, Fuel inlet
Ref.
No.
Part
No. Part Name
590420A Starter, Rewind 1
590409A Screw, Retainer
2 590410 Retainer, R.H. 3
590411 Spring, Brake
4 590148 Dog, Starter
5 590412 Spring, R.H. dog
6 590413A Pulley 7
^0414 Spring & Keeper Assy.
8 590536 Housing Assy,, Starter (Incl. No. 1)
9 590535 Rope, Starter 10
590387 Handle Assy., Starter
11 590459 Pin, Centering
12 34985 Stop & Staple, Rope (Not used on
all models)
