FLEXLOCK FLE RADIUS ROOF EDGE
FULLY ADHERED OR MECHANICALLY ATTACHED SINGLE-PLY VERSION
IMPORTANT!!!
MUST INDICATE PROPER RADIUS CONDITION BY
CIRCLING APPROPRIATE OUTSIDE FACE
PROVIDING A RADIUS
THE RADIUS MAY BE PROVIDED
IN ONE OF TWO METHODS:
1.) THE ACTUAL KNOWN RADIUS IS
ROOF LINE
OR

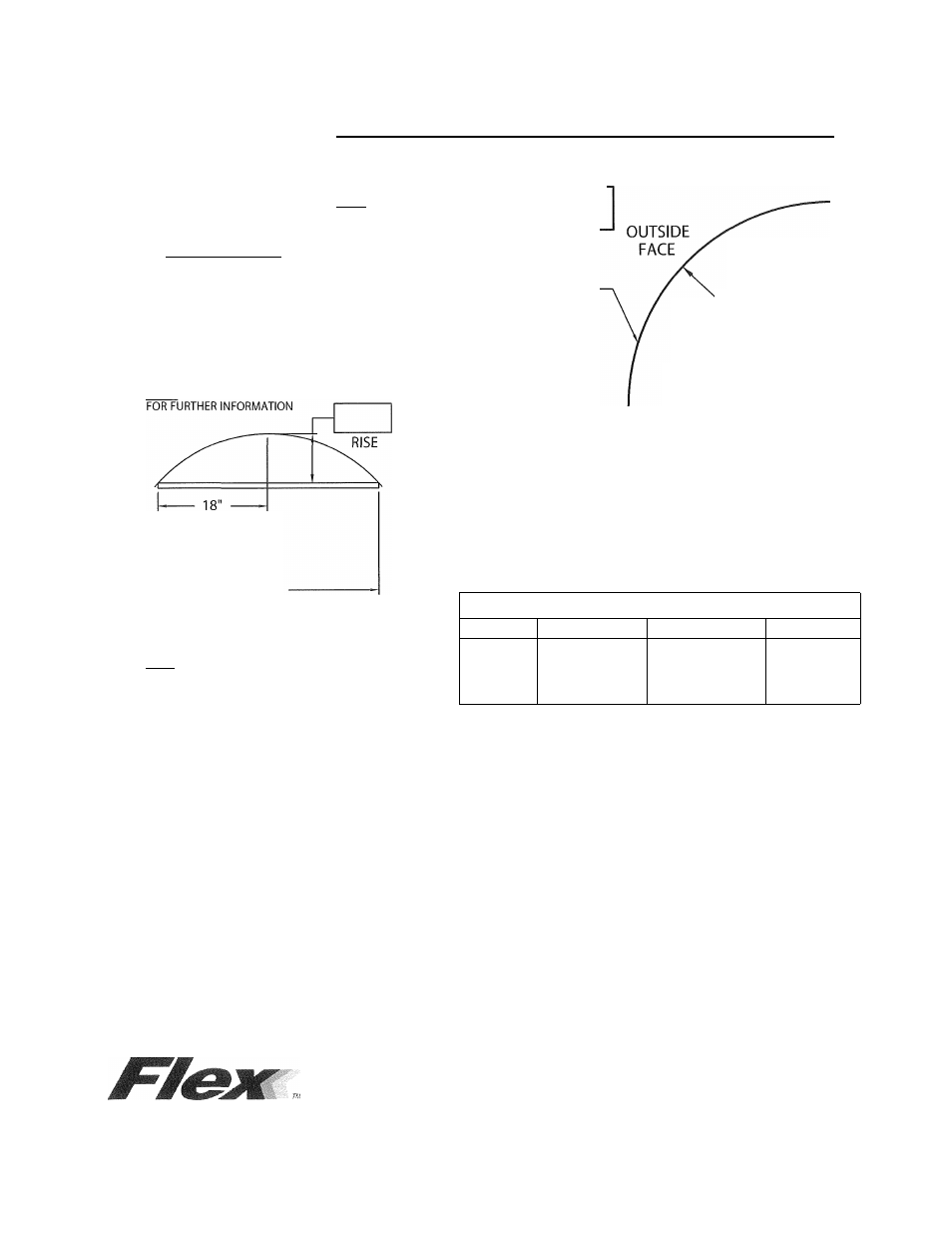

2.) FIELD CONDITION MEASUREMENTS
NOTE: REFER TO ATTACHED WORKSHEET
OUTSIDE
FACE
RADIUS
(PROVIDED BY APPROVER
PER DETAIL A)
TOP
VIEW
-------- INDICATES AREAS THAT WILL BE SLIT AS
NEEDED TO ACCOMODATE RADIUS
(457 mm)
MIDPOINT OF
STRAIGHT EDGE
------------------- 36"
(914 mm)
LENGTH OF
STRAIGHT EDGE
NOTE: CHECK MEASUREMENTS ALONG ENTIRE RADIUS.
DETAIL A
i/''
RADIUS FASCIA PROVIDED
IN12'-0" (3.65 m) LENGTHS RADIUS EXTRUDED BAR PROVIDED
^ IN 12'-0" (3.65 m) LENGTHS
FLEXLOCK FLE RADIUS ROOF EDGE DIMENSIONS
PRODUCT ID. NO. H DIM. X DIM. COVERAGE
□ AF-40 4" (102 mm) 2 3/4" (60 mm) 1 NAILER
□ AF-55 5 1/2" (140 mm) 4 1/4" (108 mm) 2 NAILERS
□ AF-70 7" (178 mm) 5 3/4" (146 mm) 3 NAILERS
□ AF-85 8 1/2" (216 mm) 7 1/4" (184 mm) 4 NAILERS
Fabrication will proceed only after receipt of
signed print approval.
Print Approval:
Architect and/or contractor shall verify all
dimensions, sizes and quantities. All
products to be installed in strict accordance
with Flex's printed instructions.
Approved by: _____ ___________________
Date; ____________________
MATERIAL:
___ 24 Ga. (.65 mm) Galv. Steel
___ .040" (1.01 mm) Aluminum
___ OTHER__________________
Color:_____________________
Finish:____________________
QUANTITIES:
Lineal Feet (12'-0" (3.65 m) Lengths)
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
Customer Service:
Phone: 800-969^0108
Fax:610-916-9501
DATE: 12/06/10
DRN BY: JJC
CKD BY: SAK
SHT# OF
DWG# 28010-3439
